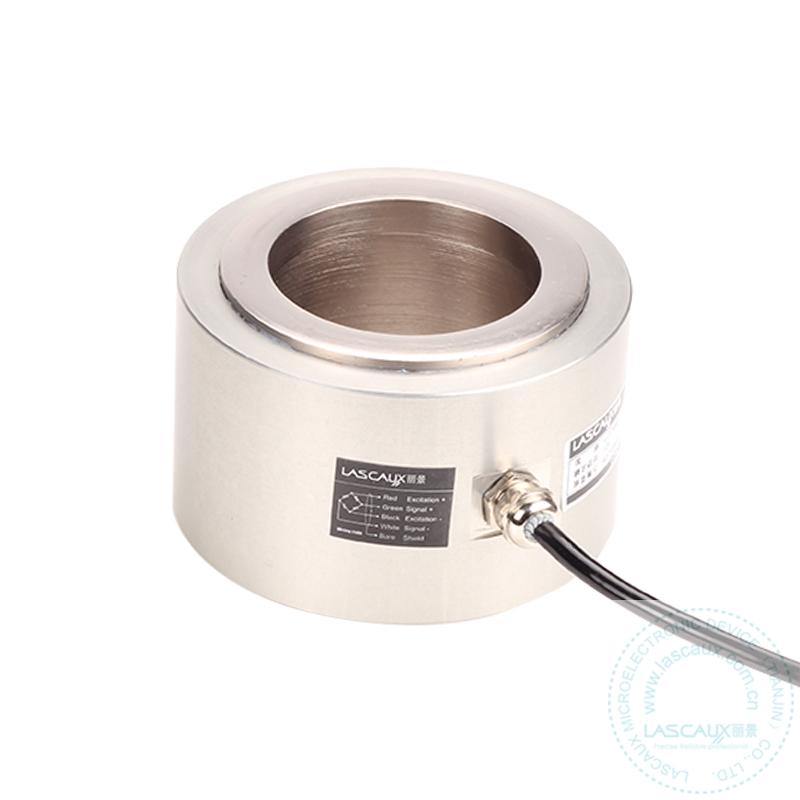

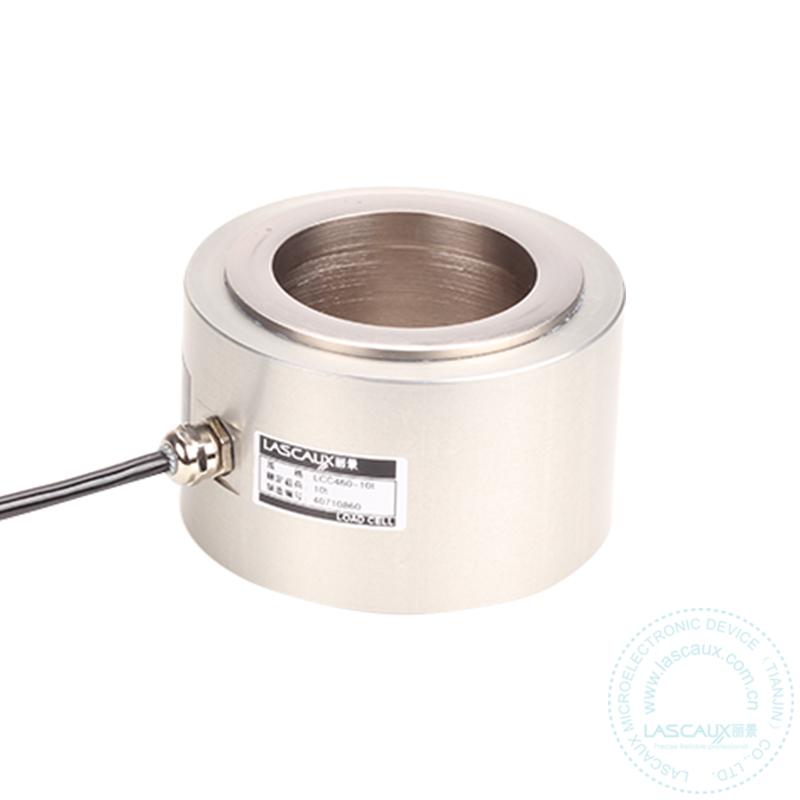

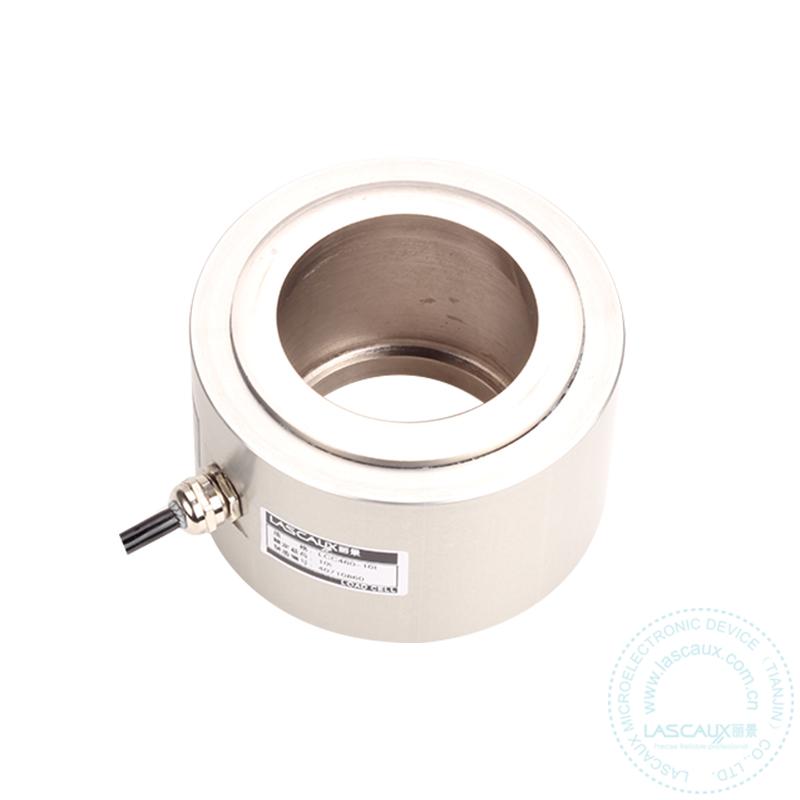

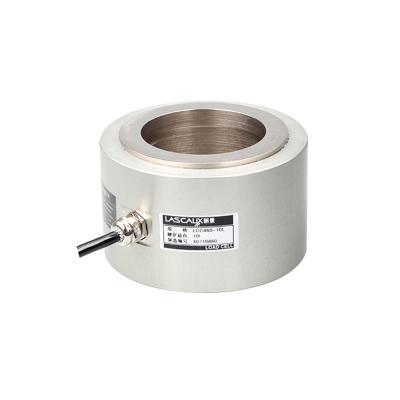

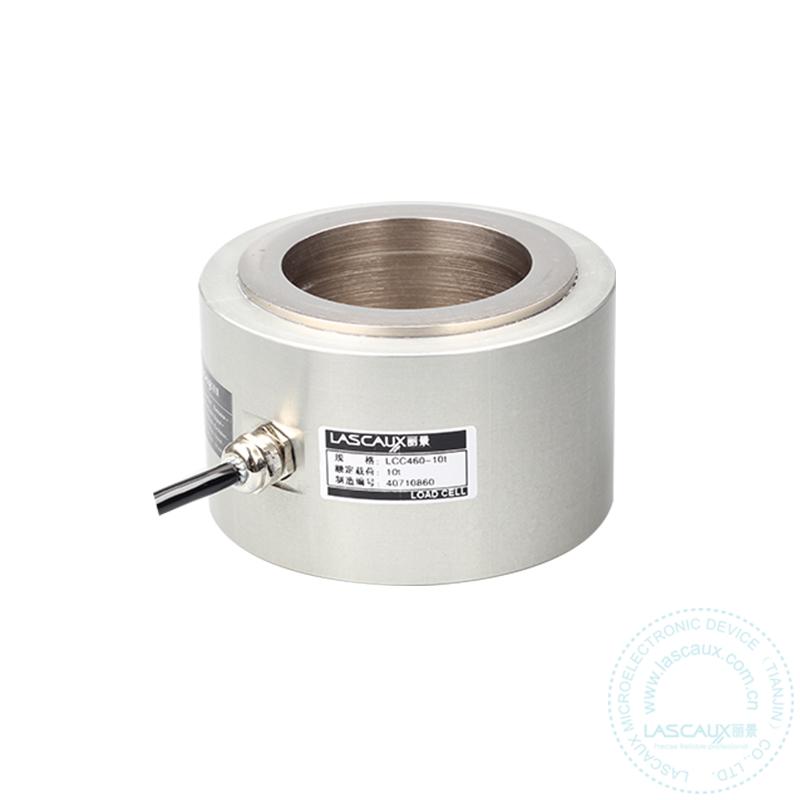

LCC460 Compression Load Cell

Be suitable for a wide range of applications including testing or weighing systems.

本店价：

👈Consult customer service for a quote 3 have been sold|0 evaluation

Capacity

10t

20t

50t

100t

200t

300t

LCC460 Compression Load Cell

Description:

Model: LCC460

Features:

1. Capacities (t): 5 to 300

2. Compact structure, easy to install

3. High quality alloy steel with nickel plating

4. Full welding sealing Structure

5. High comprehensive precision, high stability

6. Degree of protection can reach to IP66

7. Stainless Steel is available

8. Can be custom-made

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	5,10,20,50,100,200,300
Rated Output	mV/V	1.2-1.5
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±1
Creep/30 minutes	%R.O.	±0.1
Repeatability	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10℃	±0.2
Temp. effect/10℃ on zero	%R.O./10℃	±0.2
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000(50VDC)
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	10m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Product name :	LCC460 Compression Load Cell
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	5t，10t，20t，50t，100t，200t，300t
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.2-1.5mV/V
Comprehensive Error:	1%
Material:	Alloy Steel
The lengh of the cable:	3m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-10v
