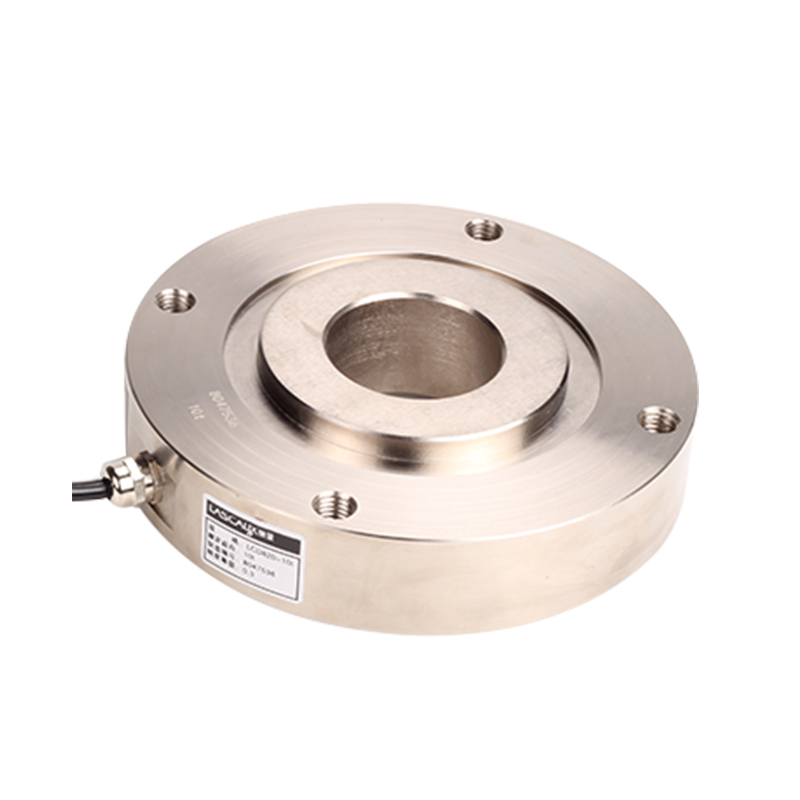

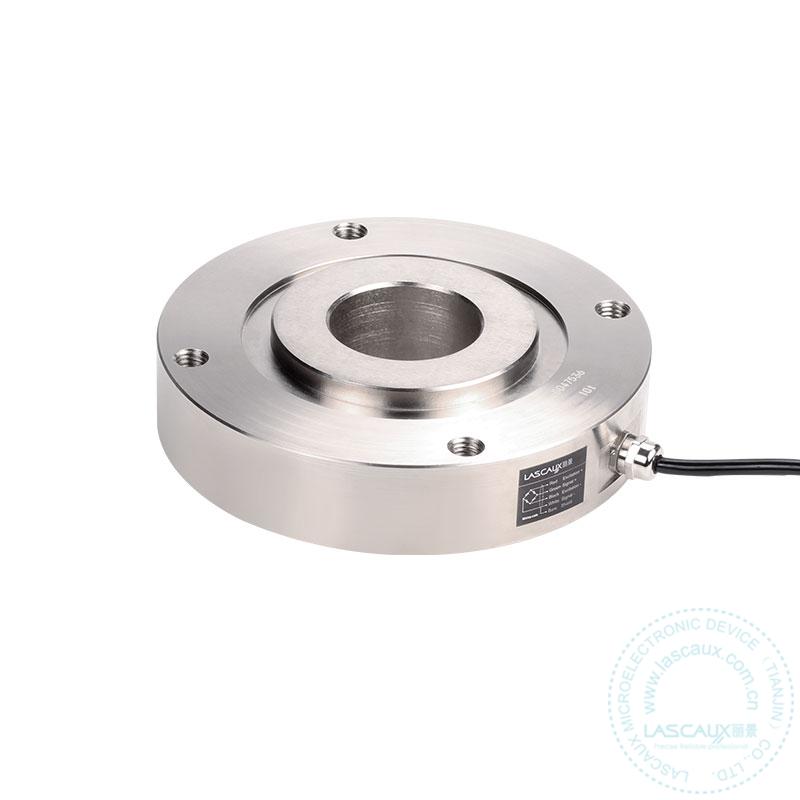

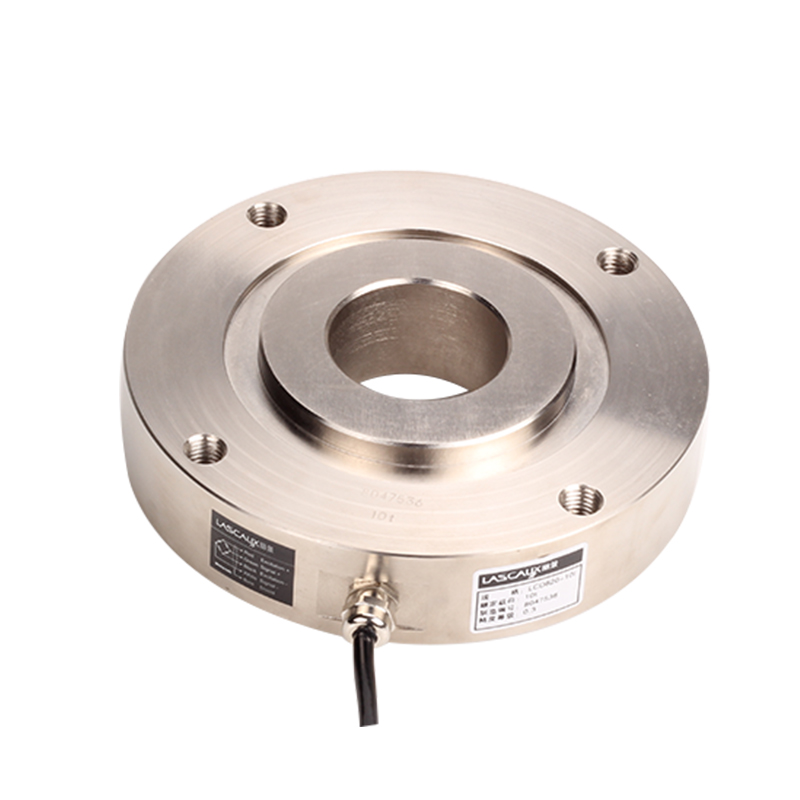

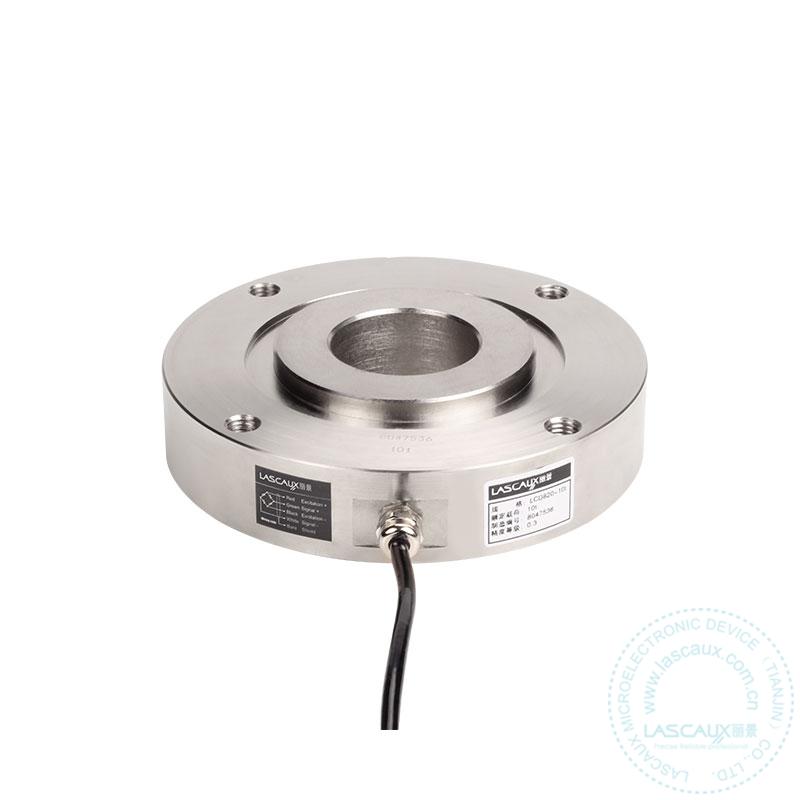

LCD820 Low Profile Disk Load Cell Force Transducer

Be suitable for a wide range of applications including testing or weighing systems.

本店价：

👈Consult customer service for a quote 5 have been sold|0 evaluation

Capacity

10t

20t

30t

50t

LCD820 Low Profile Disk Load Cell

Description：

Model: LCD820

Data sheet

Features:

1. Capacities (t): 1 to 50

2. Compact structure, easy to install

3. Compression load cell

4. Low profile, spherical designing

5. Alloy steel or Stainless Steel material

6. Degree of Protection reaches to IP66

7. For Static and Dynamic Applications

8. Strain Gauge type transducers

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	1,2,5,10,20,50
Rated Output	mV/V	1.2-1.5
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.5
Non-linearity	%R.O.	±0.3
Hysteresis	%R.O.	±0.1
Repeatability	%R.O.	±0.3
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	5m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCD820 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Rated Load:	1t，2t，5t，10t，20t，30t，50t
Rated Output:	1.2-1.5mV/V
Comprehensive Error:	0.5%R.O.
The lengh of the cable:	1t-5t：5m，10t-30t：10m，50t：15m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
