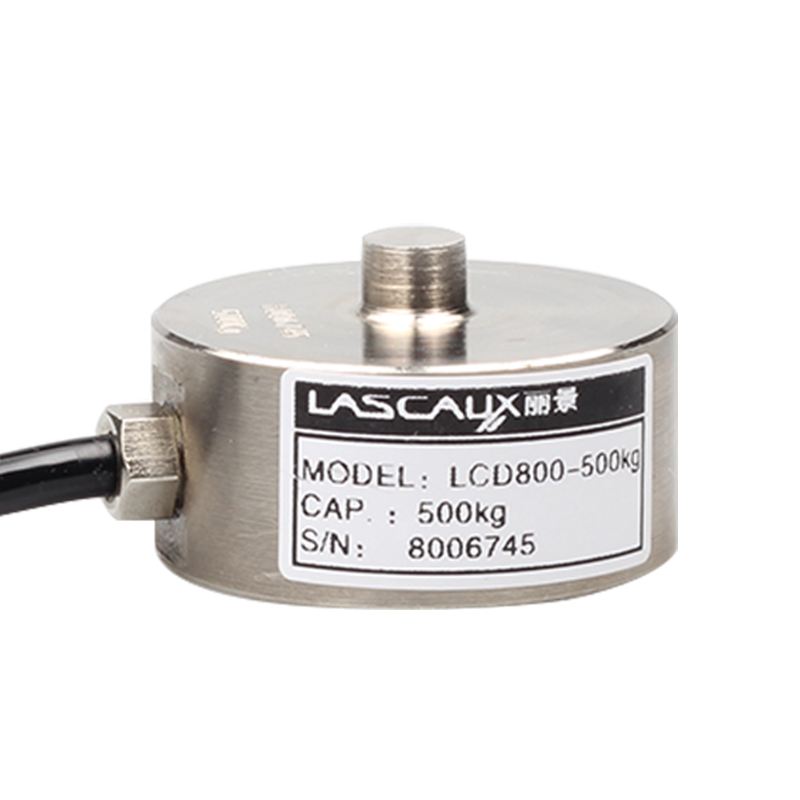

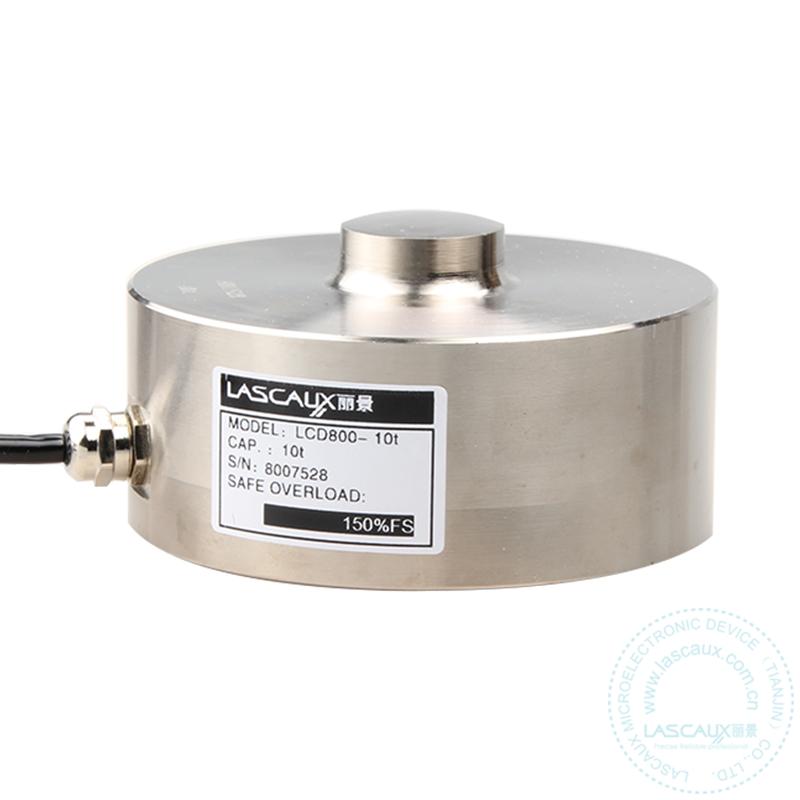

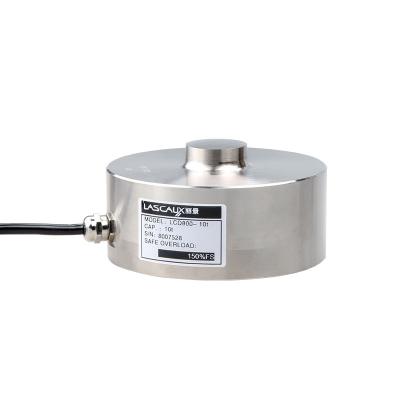

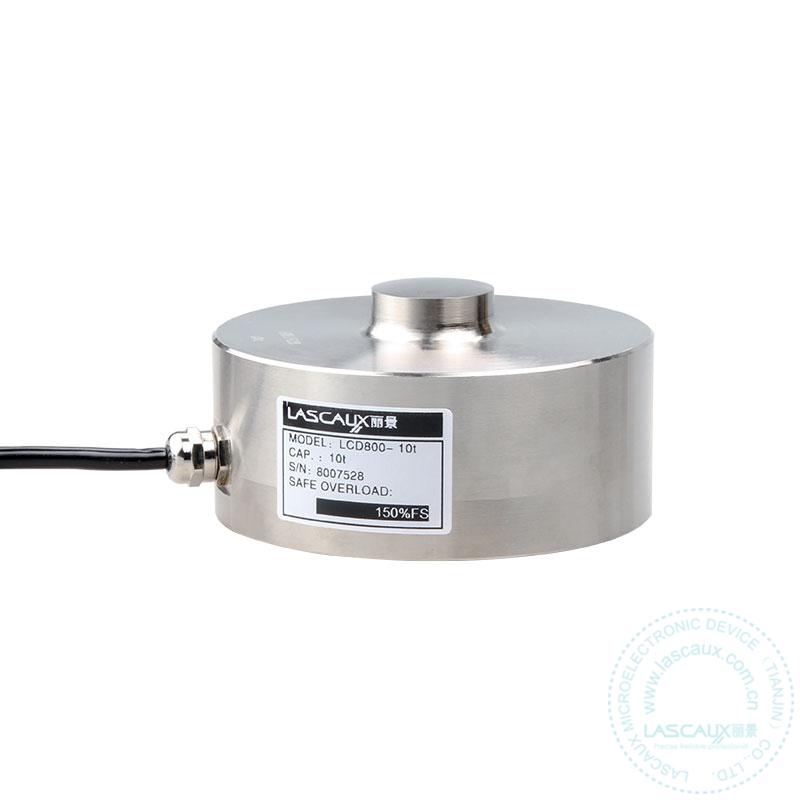

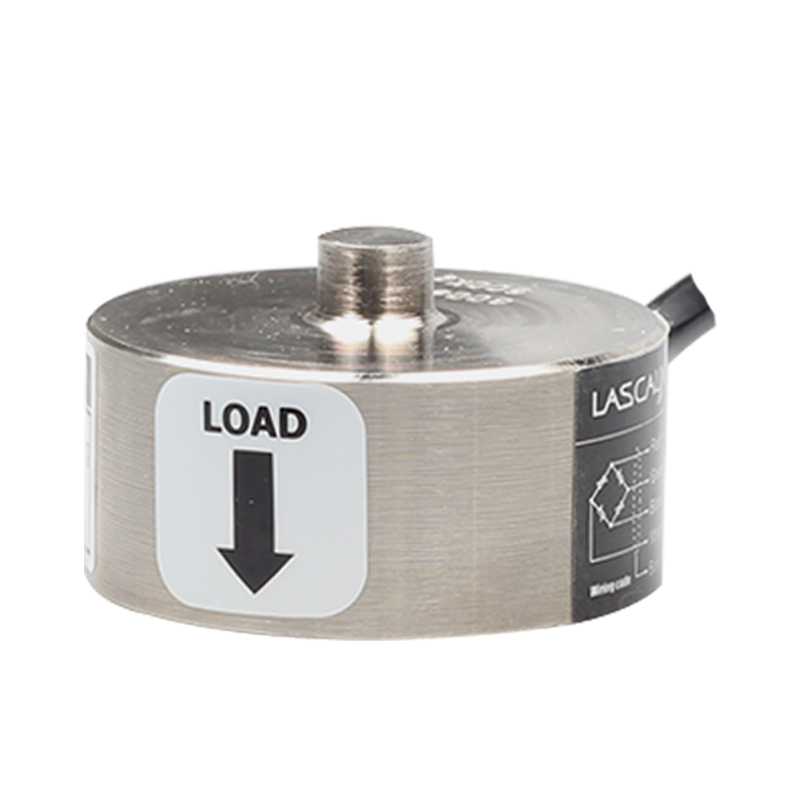

Low Profile Disk Load Cell

Description:

Model: LCD800

Data sheet:

Features:

1. Capacities (t): 0.1 to 50

2. Compact structure, easy to install

3. Compression load cell

4. Low profile, spherical designing

5. High comprehensive precision, high stability

6. High quality alloy steel with nickel plating

7. Alloy steel or Stainless steel material

8. Module installing

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	kg	100,200,500
Rated Load	t	1, 2, 5,10,20,30,50
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.2
Creep/30 minutes	%R.O.	±0.05
Non-linearity	%R.O.	±0.2
Hysteresis	%R.O.	±0.2
Repeatability	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel/Stainless Steel
Degree of protection		IP67/IP68
The length of the cable	m	100kg-5t: 5m 10t-30t：10m 50t:15m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCD800 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Ex Marking:	Exia IIC T4 Ga
Certificate NO.:	CE19.2420
Warranty:	12 months
Rated Load:	0.1t，0.2t，0.5t，1t，2t，5t，10t，20t，30t，50t，100t，200t
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.2%R.O.
Material:	Alloy Steel/Stainless Steel
The lengh of the cable:	100kg-1t: 3m 2t-5t：6m 10t-20t:10m 30t：12m 50t-200t:15m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
