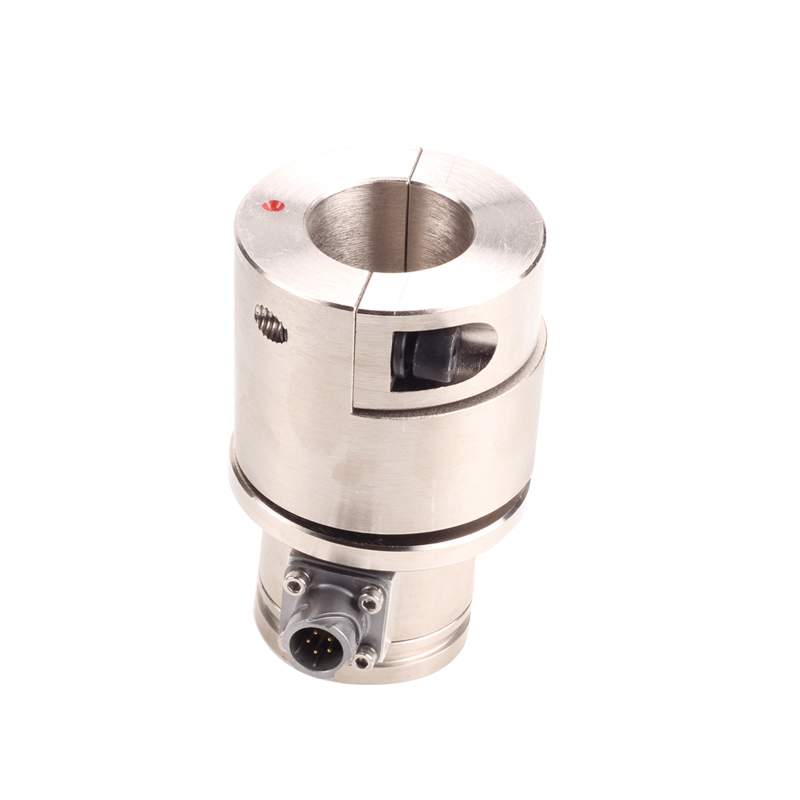

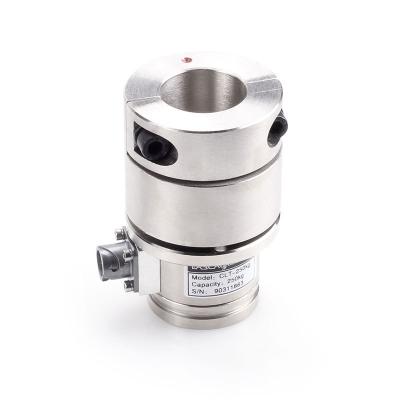

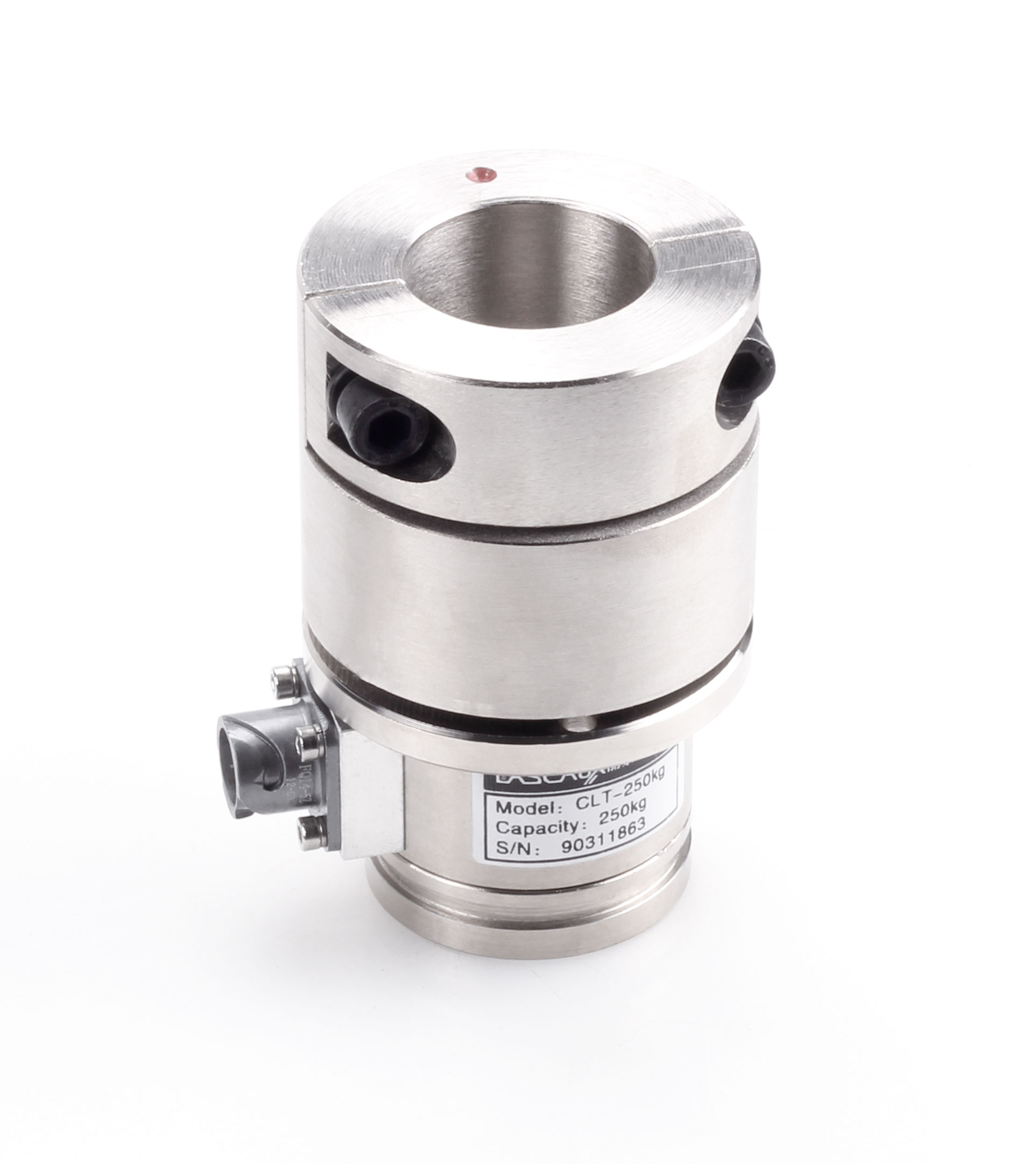

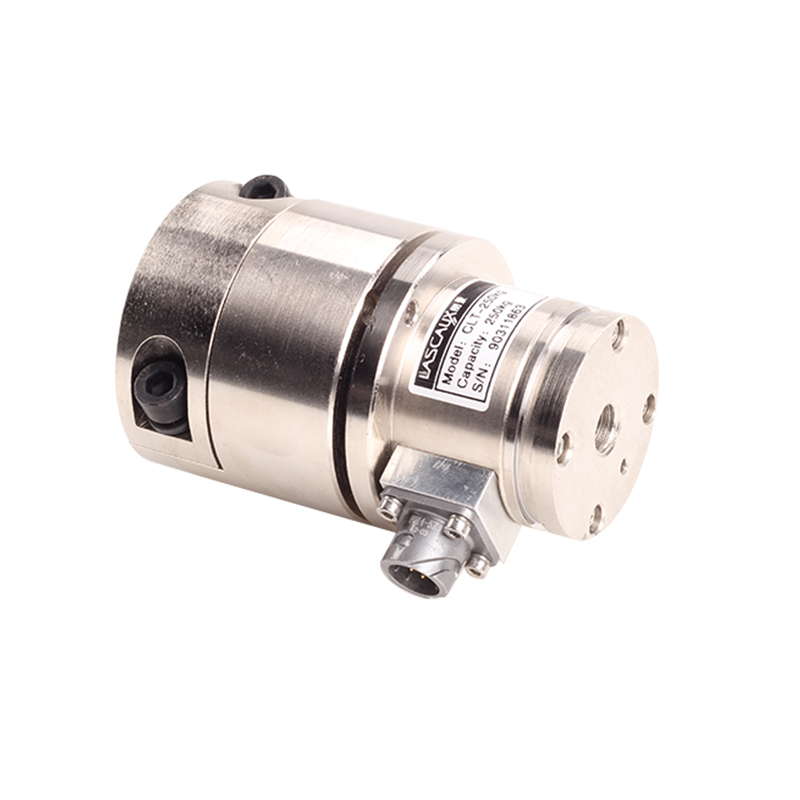

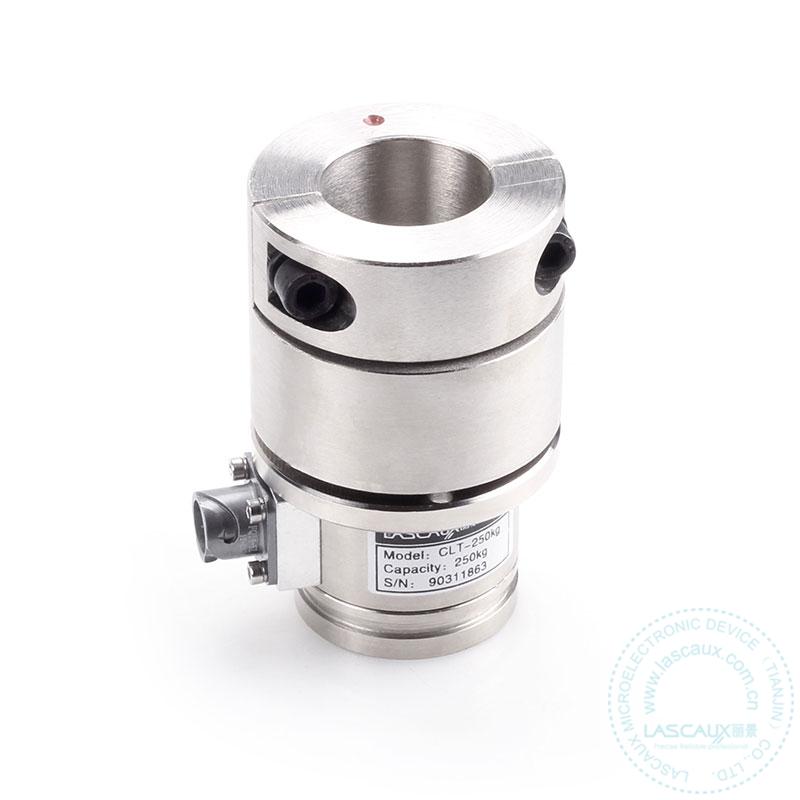

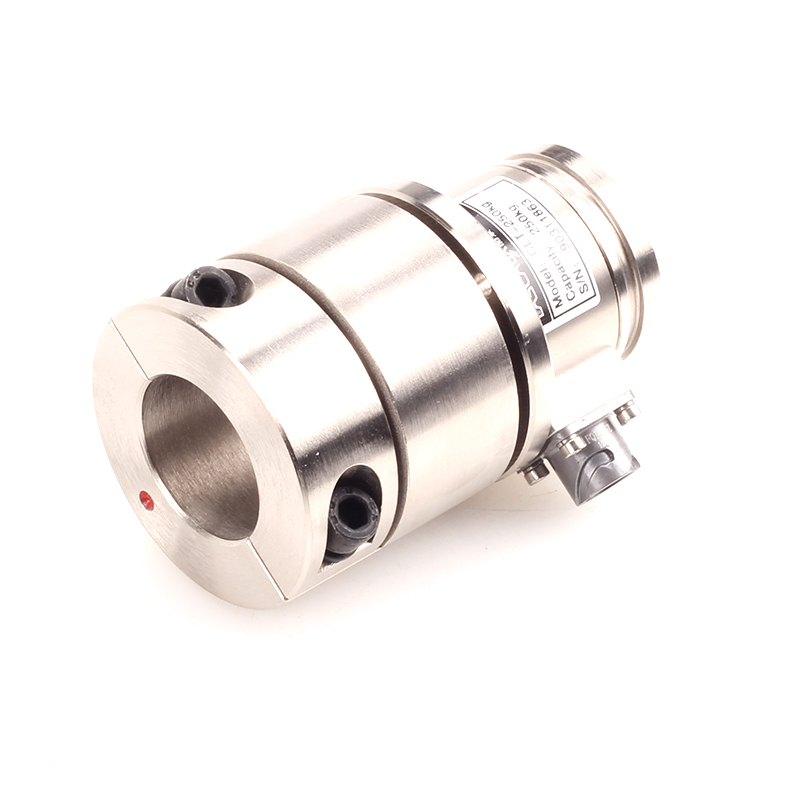

CLT Tension Sensor

Be suitable for measuring the tension, mainly applied for the paper making、chemical industry and other industries.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

10kg

25kg

50kg

75kg

150kg

250kg

张力传感器

Tension Sensor

Description:

Model: CLT

Features:

1. Capacities (kg): 10 to 250

2. Resistance strain measurement methods

3. The level of water-proof reaches IP65

4. It can accurately measure in the low tension

5. Compact structure, easy to install

6. High comprehensive precision, high stability

7. High quality alloy steel with nickel plating

8. Stainless steel material is available

9. Many installations types can satisfy various needs

Applications:

Be suitable for measuring the tension, mainly applied for the paper-making、chemical industry and other industries.

Specifications:

Rated Load	kg	10,25,50,75,150,250
Rated Output	mV/V	1 ± 0.1%
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	CLT Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	10kg，25kg，50kg，75kg，150kg，250kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1±0.1%mV/V
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
