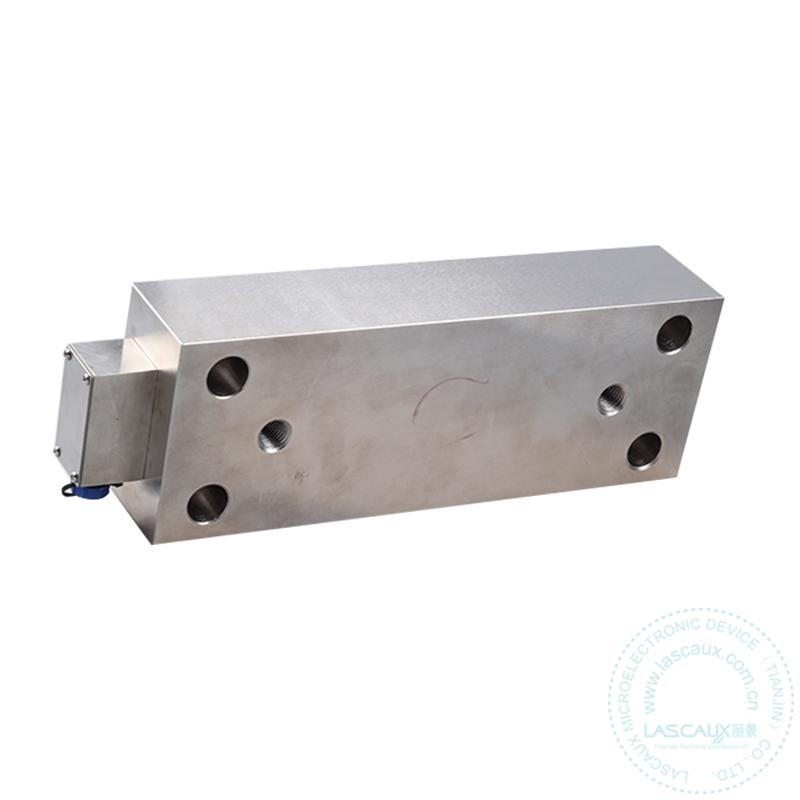

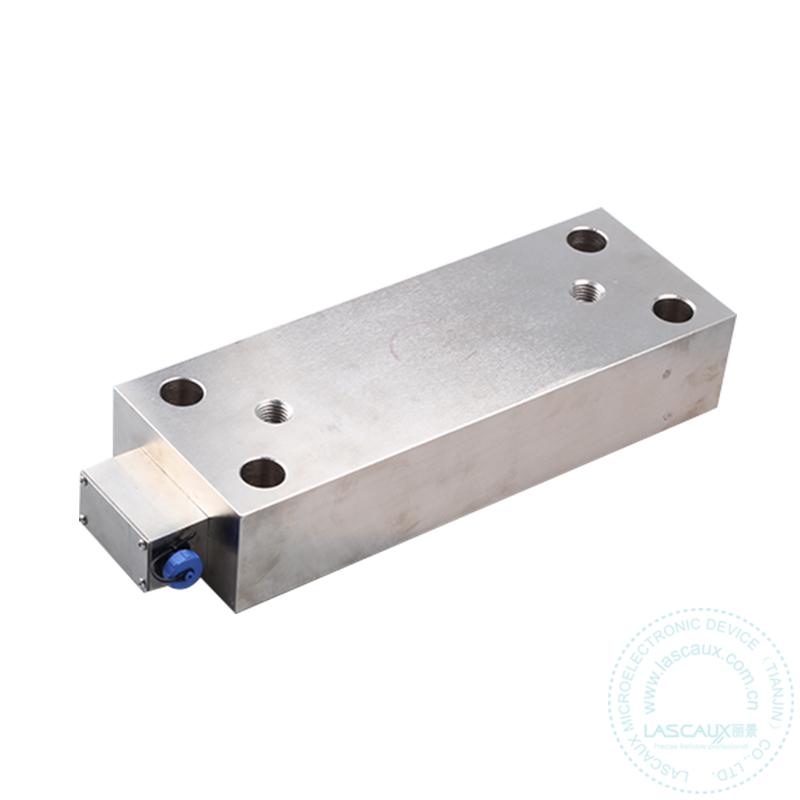

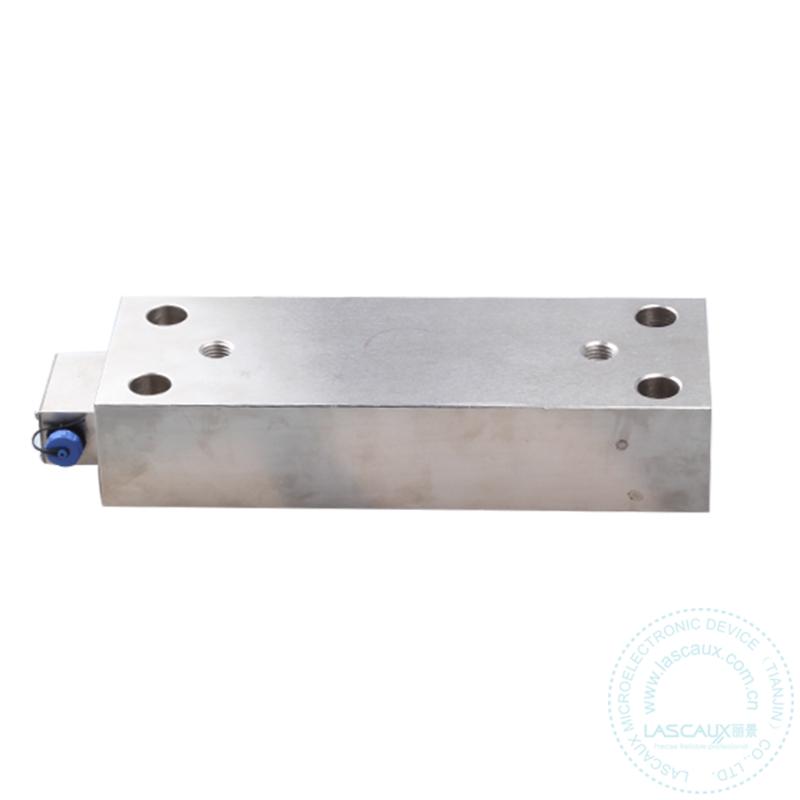

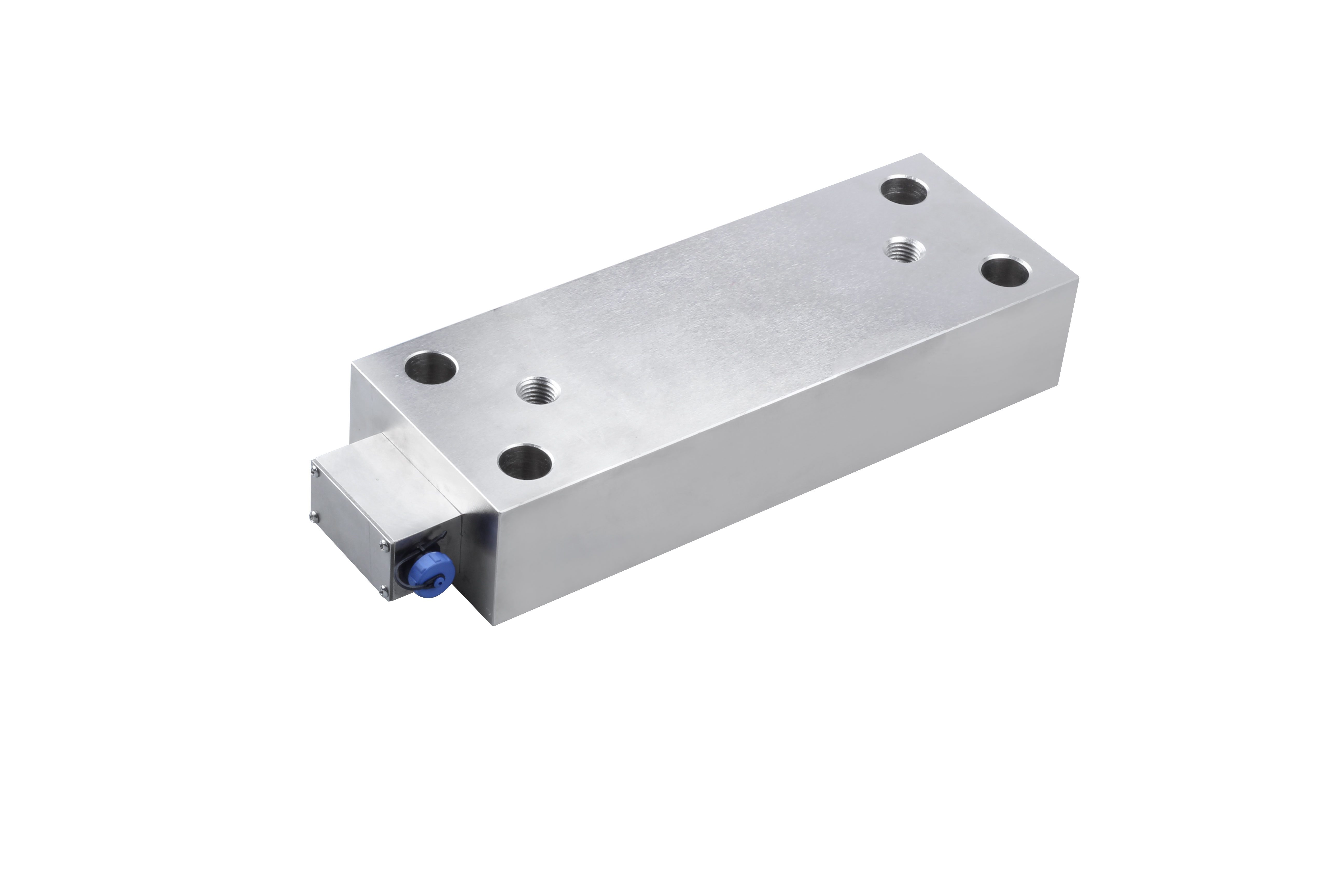

Tension Sensor Description: Model: UPB Features: 1. Capacities (kg): 150 to 10000 2. Resistance strain measurement methods 3. The level of water-proof reaches IP65, hermetically seal structure 4. Compact structure, durable in use, high stability 5. Anodized Aluminum Alloy, High quality alloy steel with nickel plating 6. Easy to install, can measure the perpendicular tension 7. It can accurately measure in the low tension 8. On-line tension measurement accurately Applications: UPB has varieties of series and mounting style, be widely suitable for the curly equipment and production line of printing, composition,coating,cutting, paper-making, rubber, textile, electric wires ,cable and film.
Specifications:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product name : | UPB Tension Sensor |
| Product brand : | LIBIRINTH |
| Warranty: | 12 months |
| Series Specifications: | UPB1、UPB2、UPB3 |
| Rated Load: | 150kg，250kg，500kg，1t，1.5t，2.5t，5t，10t |
| Custom-Made: | YES |
| Output Type: | Analog millivolt voltage signal output：mV/V |
| Rated Output: | 1±0.005mV/V |
| Material: | Alloy Steel |
| Output Impedance: | 380±10Ω |
| Input Impedance: | 350±5Ω |
| The length of the cable: | 3m |
| Recommended excition voltage: | 5-12V |
