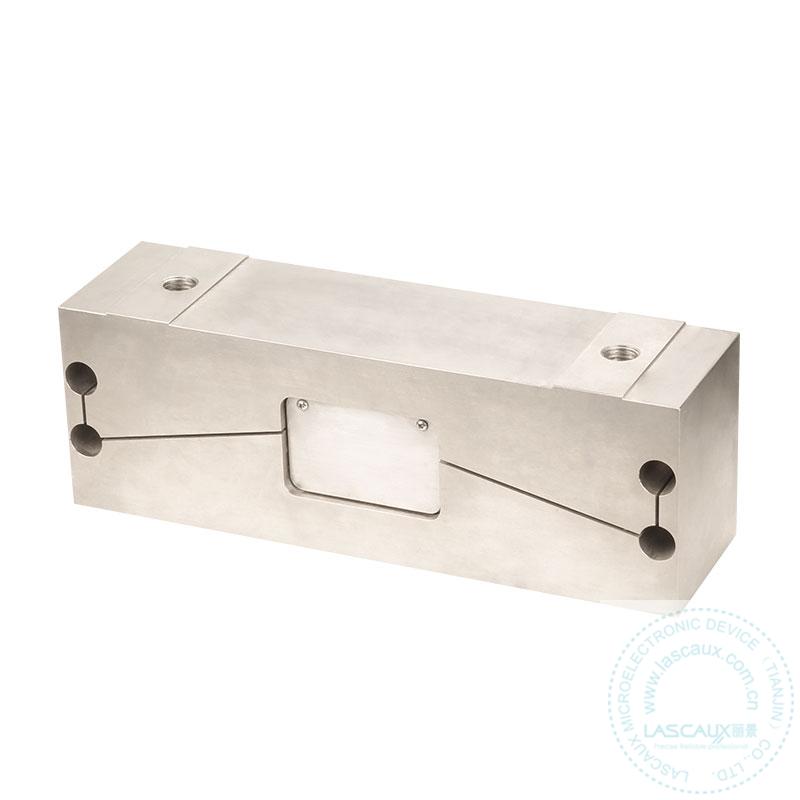

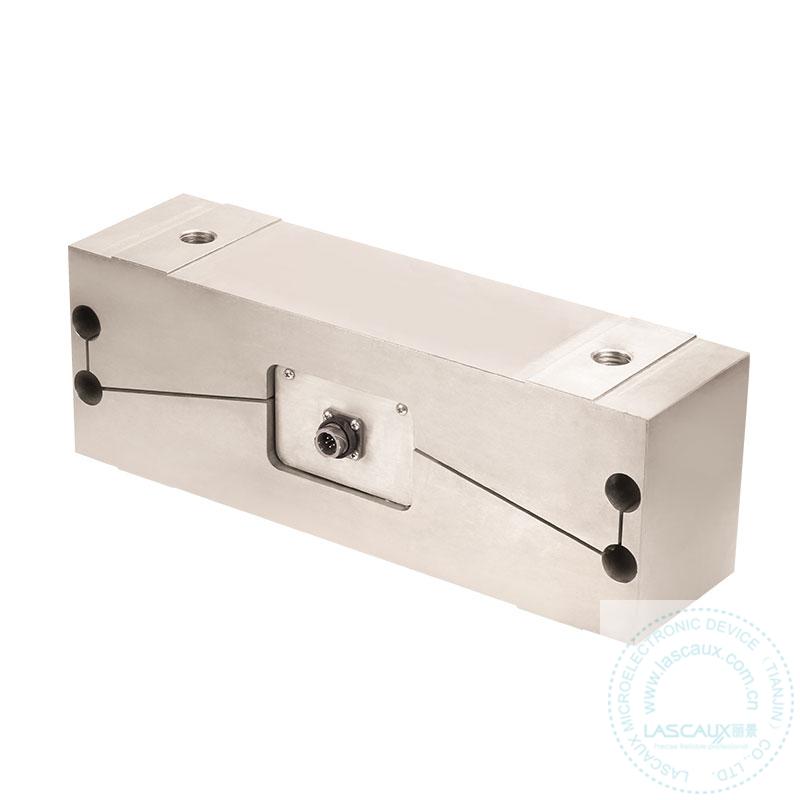

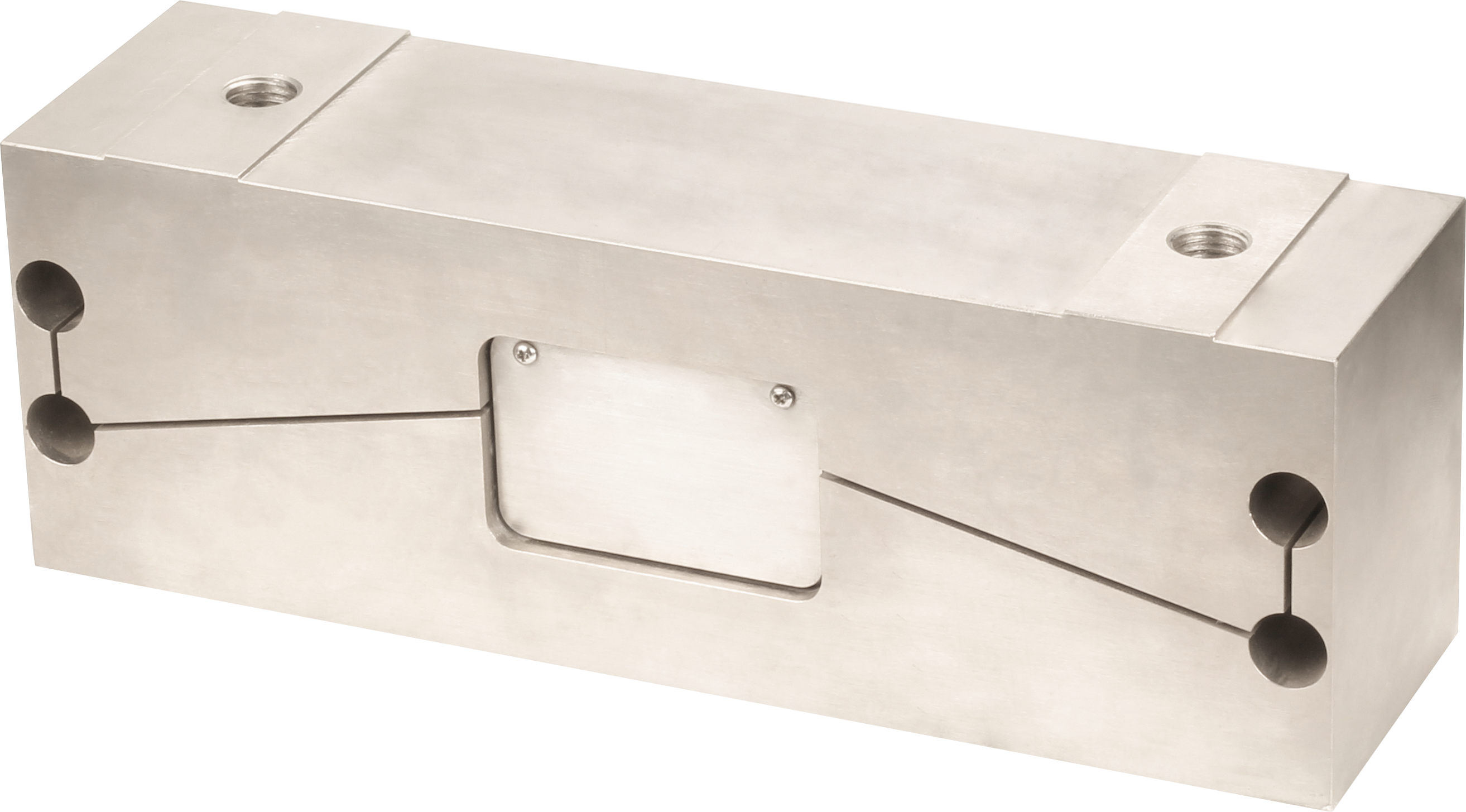

HPB Tension Sensor

Be suitable for the curly equipment and production line of print, cut, papermaking, rubber, textile manufacturing, cable and film.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

200kg

500kg

Tension Sensor

Description:

Model: HPB

Features:

1. Capacities (kg): 200 to 2000

2. Resistance strain measurement methods

3. The level of water-proof reaches IP65, hermetically seal structure

4. Compact structure, durable in use, high stability

5. High quality alloy steel with nickel plating, anti-corrosion strongly

6. It can measure the horizontal tension

Applications:

Be suitable for the curly equipment and production line of print, cut, paper-making, rubber, textile manufacturing, cable and film.

Specifications:

Rated Load	kg	200,500,1000,2000
Rated Output	mV/V	1 ± 0.1%
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	HPB Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	200kg，500kg，1000kg，2000kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1±0.1%mV/V
Material:	Alloy Steel
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
