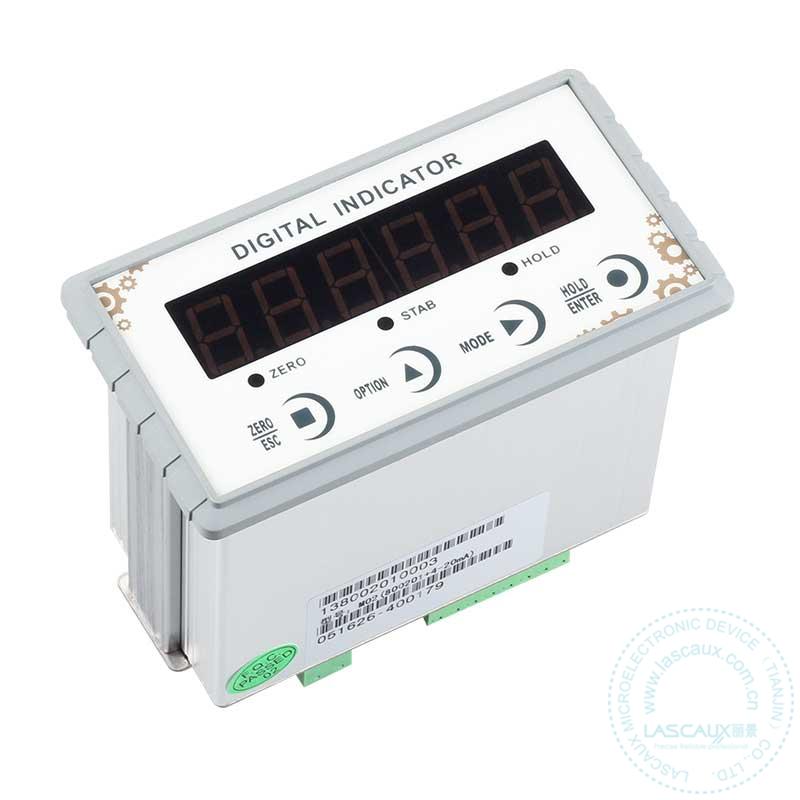

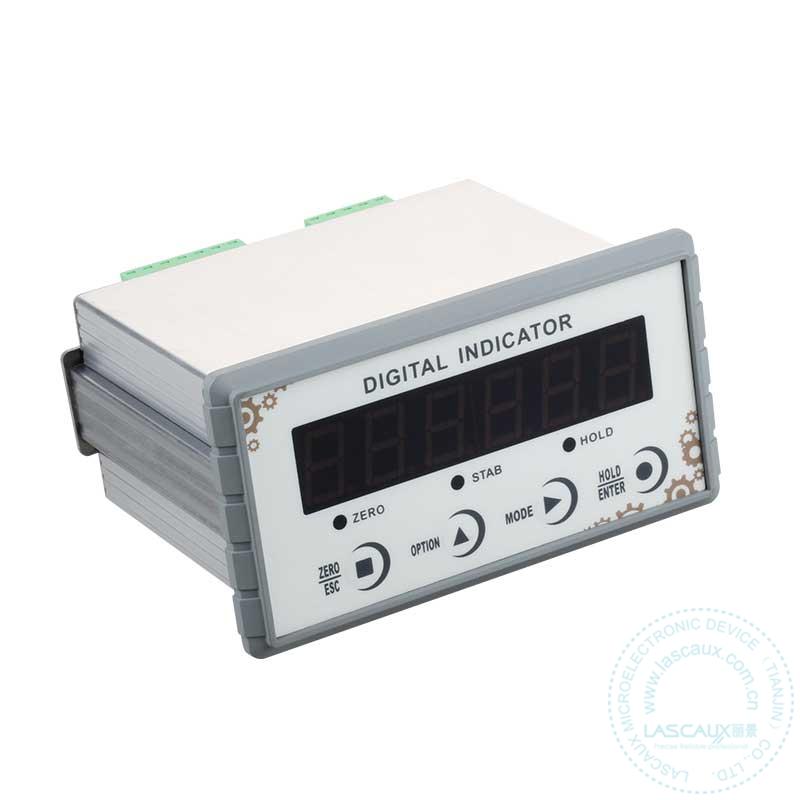

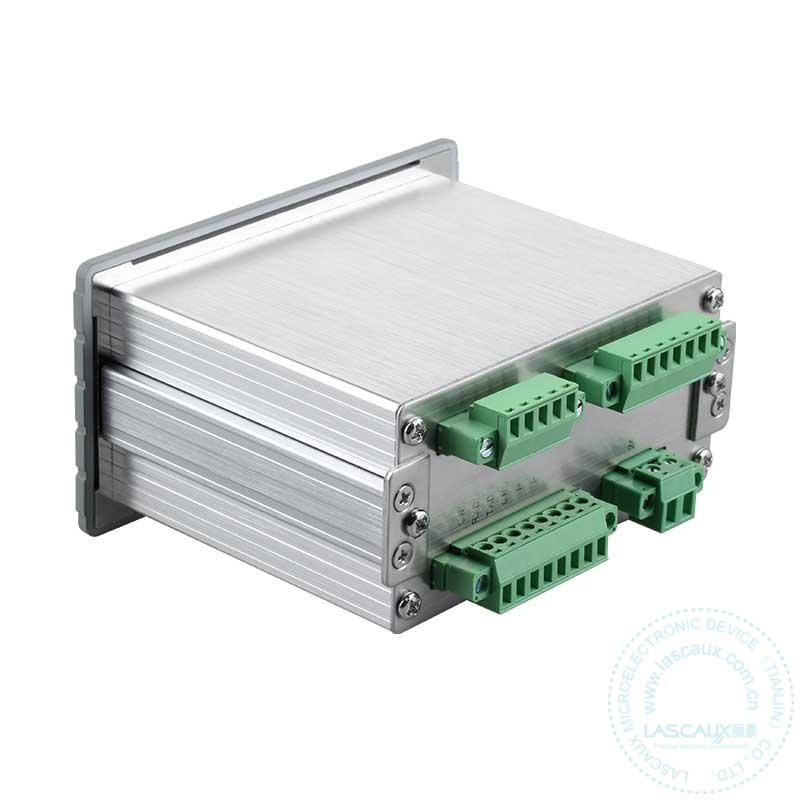

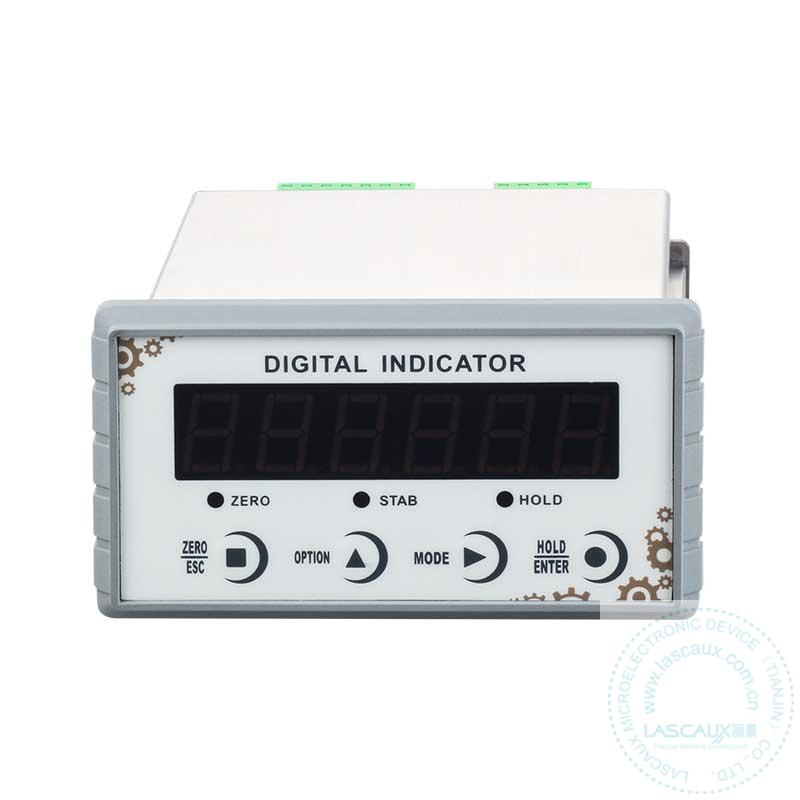

DT45 Weighing Indicator/Transmitter Model: DT45
Features: 1. Small volume, unique design, easy operation 2. Be suitable for resistance strain sensors, force transducers 3. Automatic zero -tracking, automatically zero when powered on 4. Serial communication interface 5. Through serial port calibration weight display (serial port calibration switch) 6. Analog output: 4-20mA.0-10V, On-off output，RS232 or RS485 output
Specifications：
|
| Product name : | DT45 Digital Transmitter |
| Product brand : | LIBIRINTH |
| Warranty: | 12 month |
| Powe Supply: | DC24V±5% |
| Installation: | Panel Installation |
| Display range: | 100-900,000 |
| Working: | -10℃~40℃ |
| display screen: | 6Bit Height 10mm Character |
| Output range: | 0.5µV/d-200µV/d |
| Nonlinear deviation: | ≤0.01﹪of F.S |
| Sample rate: | 120times/s，480times/s，960 times/s |
| Communication and analog quantities: | RS485;RS232;4-20mA,0-10v,0-5v Optional |
| Sensor exciation: | DC5V±5% |
| Consumption power: | MAX6W |
| Humidity: | ≤90% relative hunidity(no condensation) |
| Zero voltage adjustable: | -15mV-15mV |
| Sampling method: | Σ-△ |
| Internal Resolution: | 1/16,000,000 |
| Max.Display division: | 50,000d |
