LCD806 Low Profile Disk Load Cell Force Transducer

Be suitable for a wide range of applications including testing or weighing systems.

本店价：

👈Consult customer service for a quote 5 have been sold|0 evaluation

Capacity

500kg

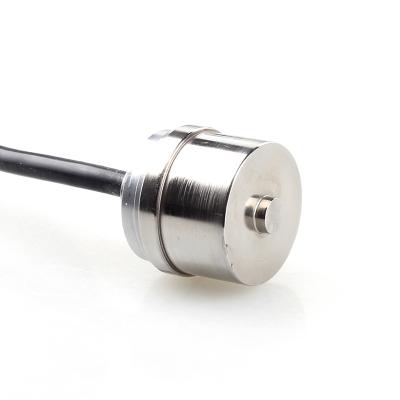

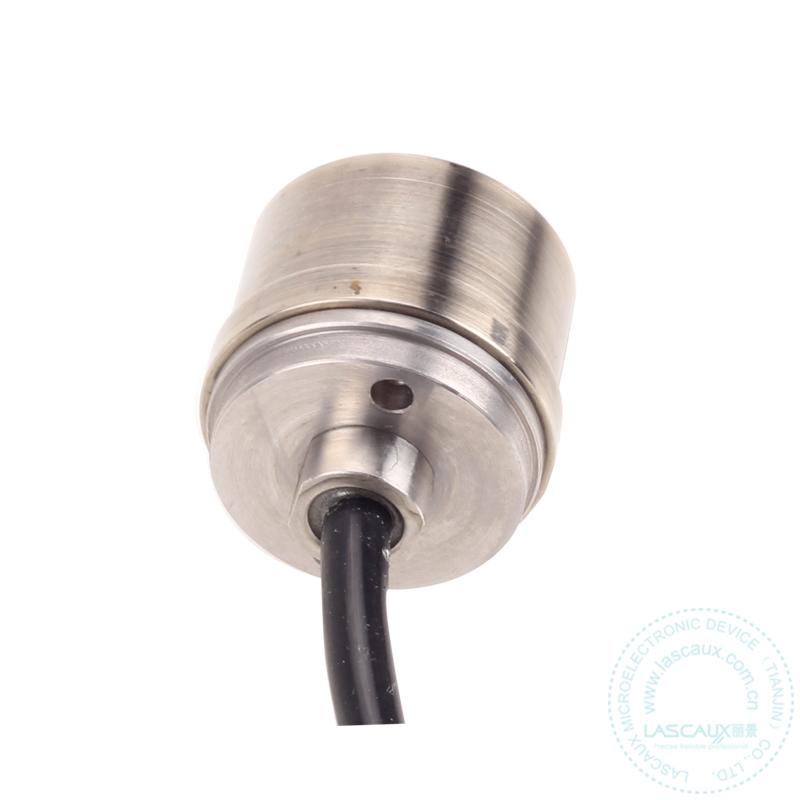

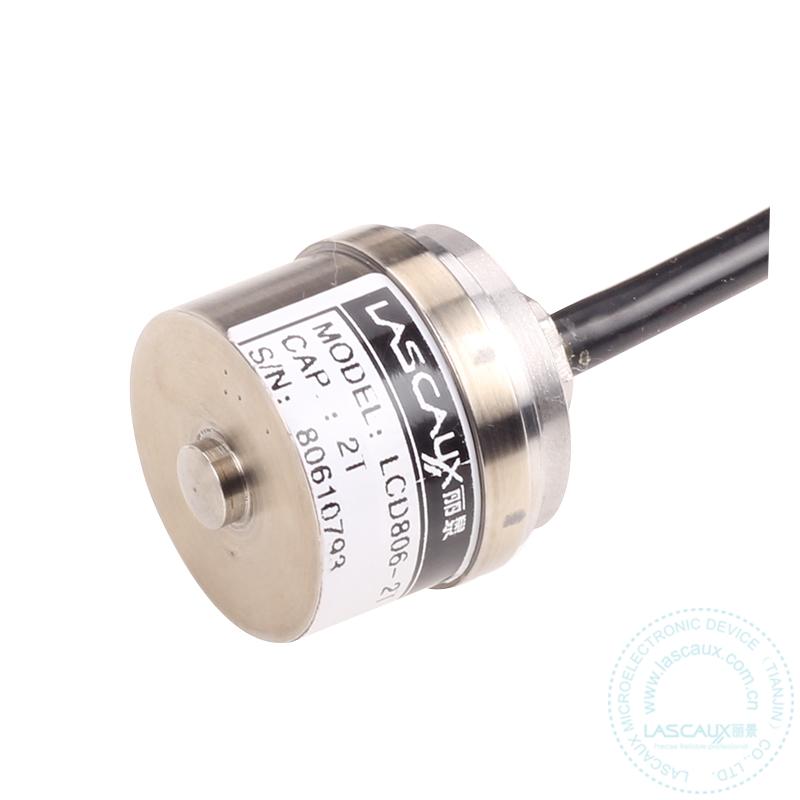

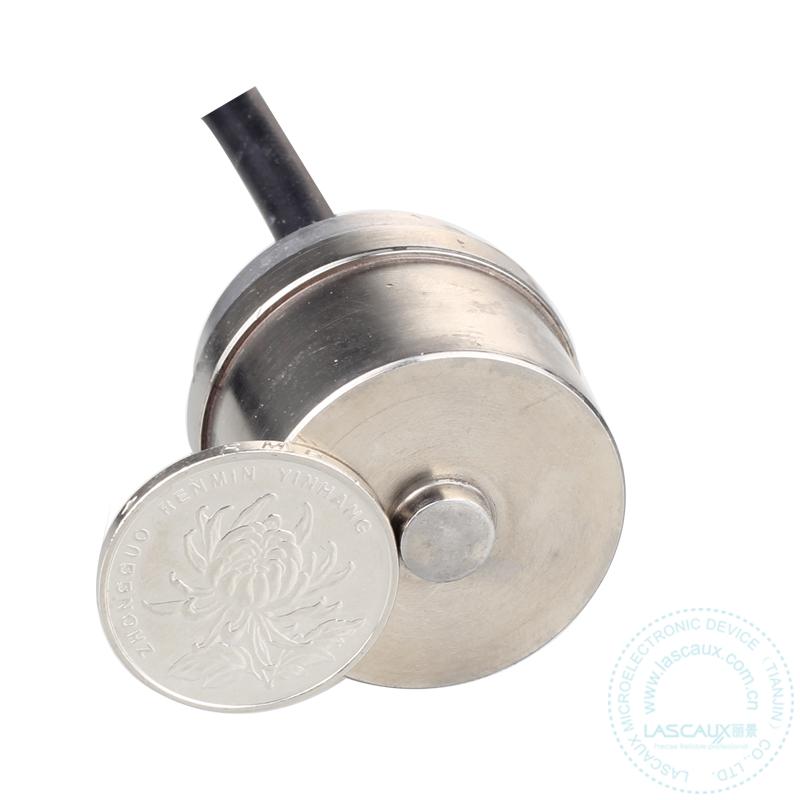

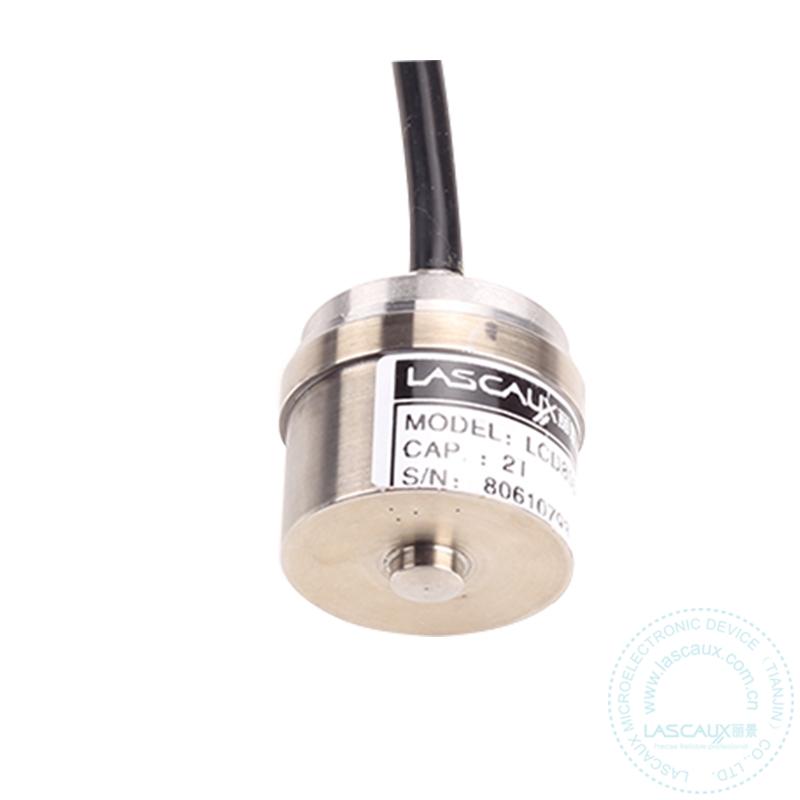

LCD806 Low Profile Disk Load Cell

Description：

Model: LD806

Datasheet:

Features:

1. Capacities (kg):500 to 3000

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. Measure the compression

5. Delicate structure, low profile

6. Stainless steel material

7. High temperature resistance

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	0.5,1,2,3
Rated Output	mV/V	1.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Non-linearity	%R.O.	±0.3
Hysteresis	%R.O.	±0.3
Repeatability	%R.O.	±0.1
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Stainless Steel
Degree of protection		IP68
The length of the cable	m	5
Wiring code	Ex:	Red：＋ Yellow：–
Wiring code	Sig:	Blue：＋ White：–

Product name :	LCD806 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	0.5t，1t，2t，3t
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.0mV/V
Comprehensive Error:	0.3%R.O.
Material:	Stainless Steel
The lengh of the cable:	5m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	5-12v
