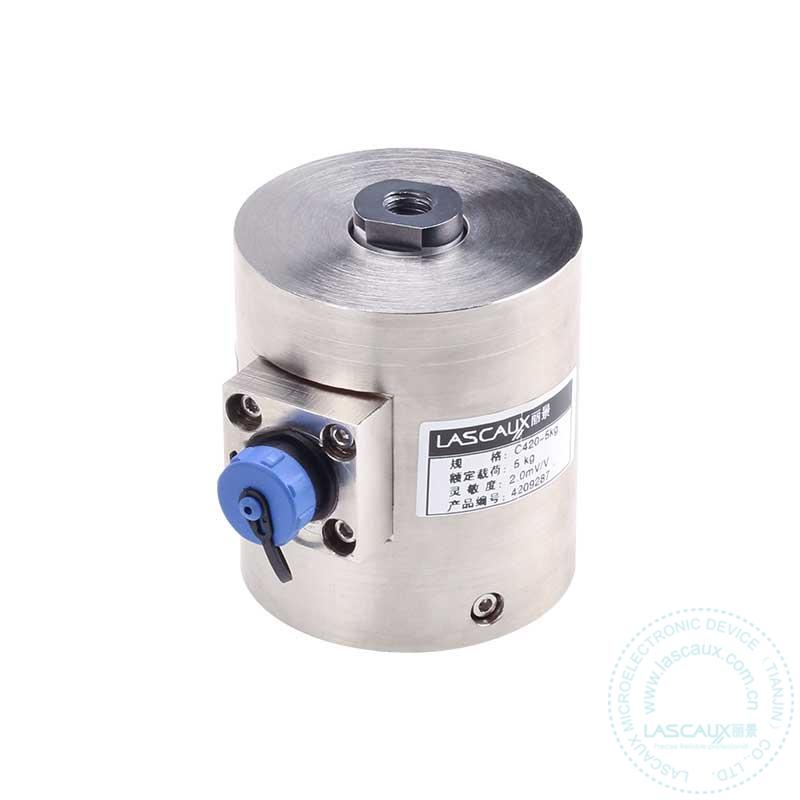

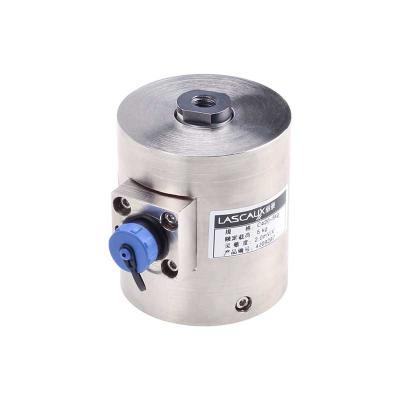

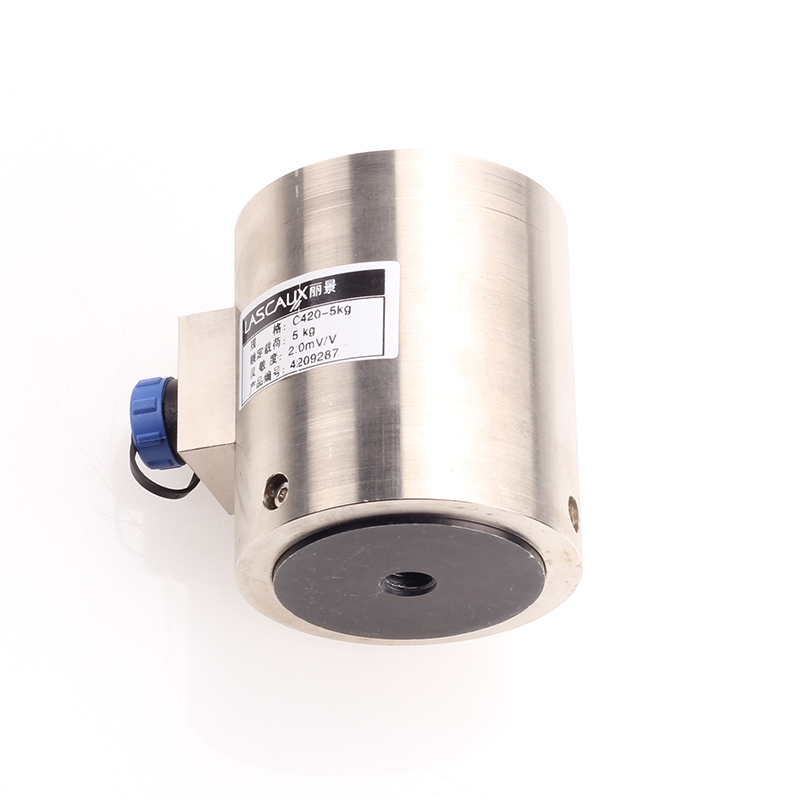

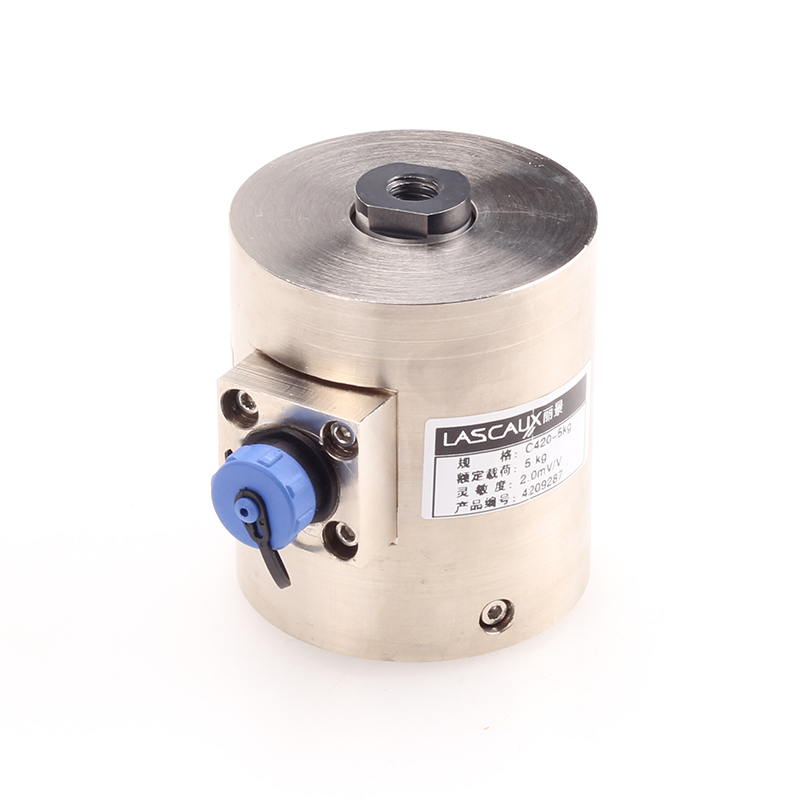

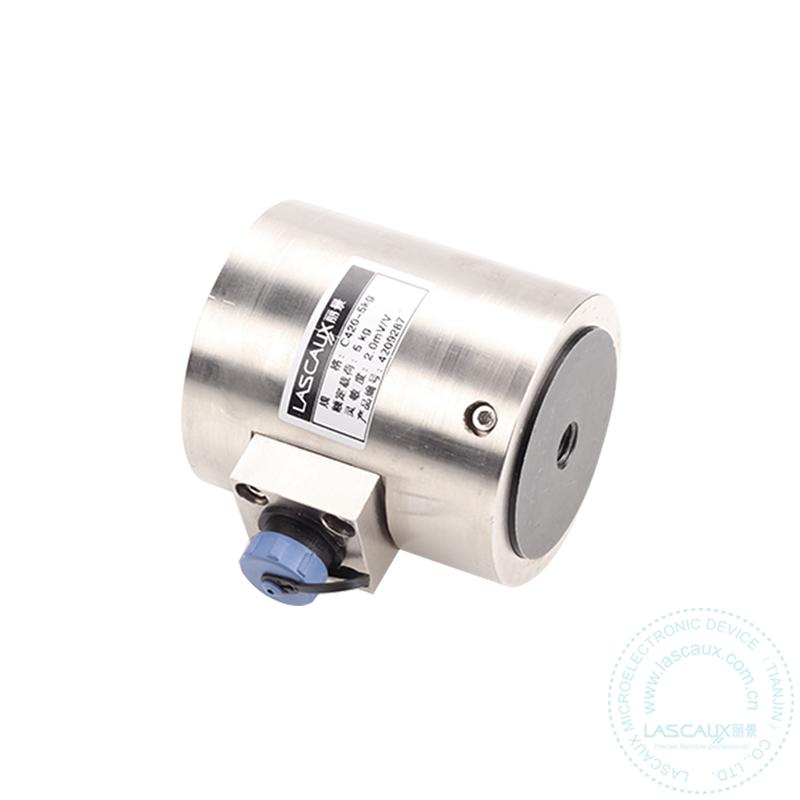

C420 Compression Load Cell

Be suitable for a wide range of applications including testing or weighing systems

本店价：

👈Consult customer service for a quote 8 have been sold|0 evaluation

Capacity

5kg

10kg

20kg

50kg

100kg

200kg

500kg

Compression Load Cell

Description:

Model: C420

Features:

1. Capacities (kg): 5 to 5000kg

2. Compact structure, easy to install

3. Compression and Tension are available

4. Alloy steel or Aluminum material

5. Degree of protection reaches to IP65

6. For Static and Dynamic Applications

7. Resistance strain measurement methods

8. High quality alloy steel with nickel plating

Applications:

Be suitable for a wide range of applications including testing or weighing systems

Specification：

Rated Load	kg	5,10,20,50,100,200,500
Rated Load	t	1, 2, 5
Rated Output	mV/V	2.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.03
Hysteresis	%R.O.	±0.03
Repeatability	%R.O.	±0.03
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.03
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.03
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Alloy Steel、Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	C420 Compression Load Cell
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	5kg，10kg，20kg，50kg，100kg，200kg，500kg，1t，2t
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	2.0mV/V
Comprehensive Error:	0.05%R.O
Material:	Alloy Steel/Aluminum
The lengh of the cable:	3m
Input Impedance:	410±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
