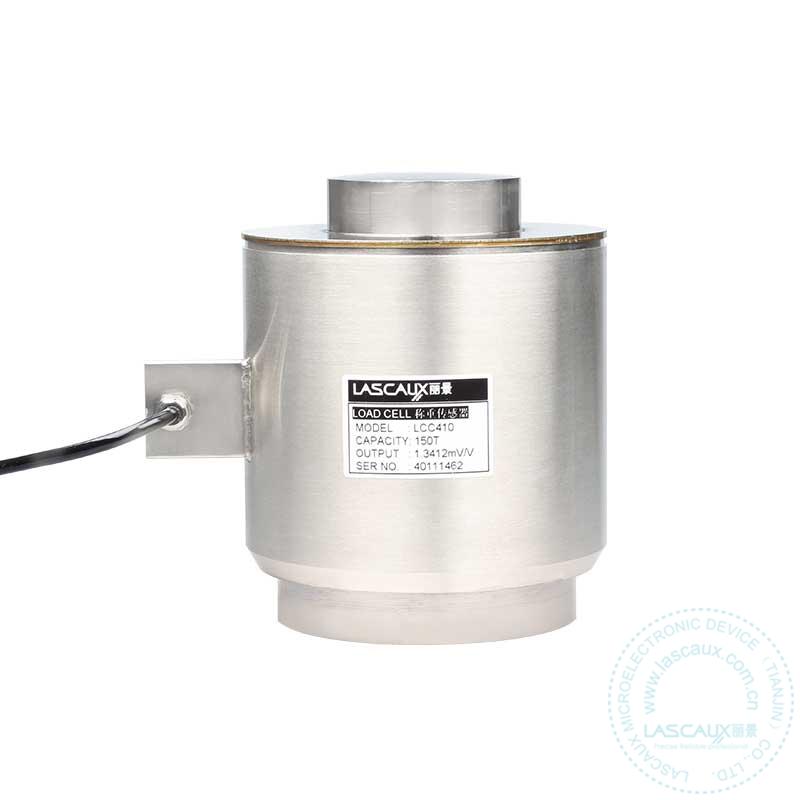

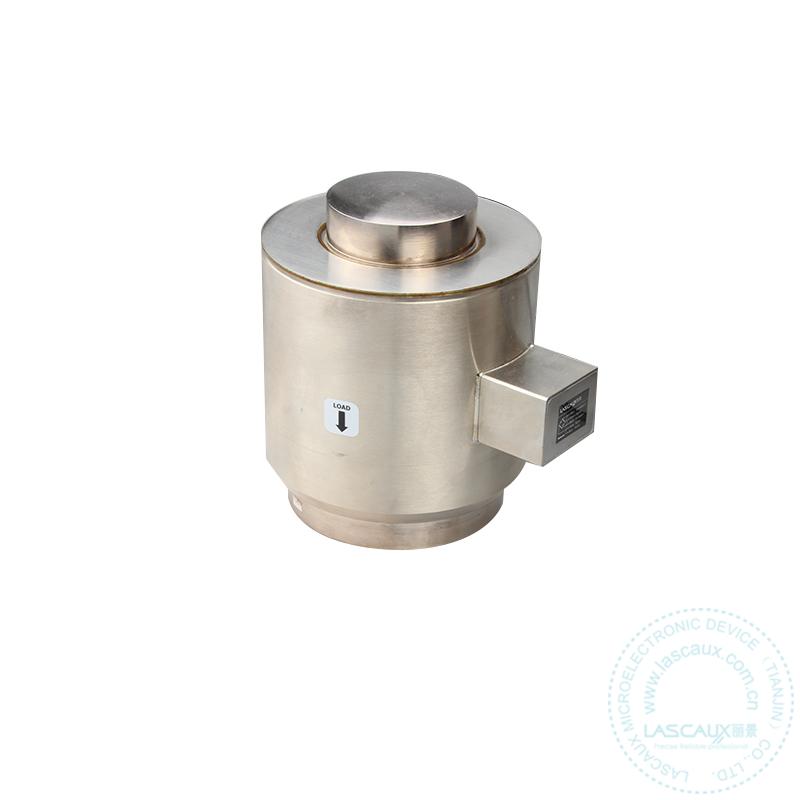

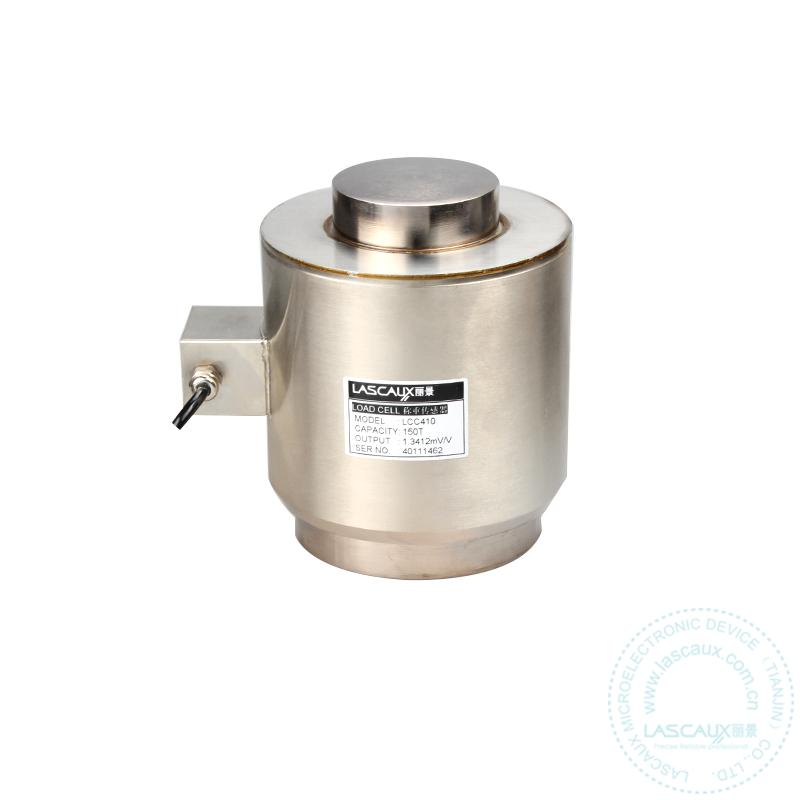

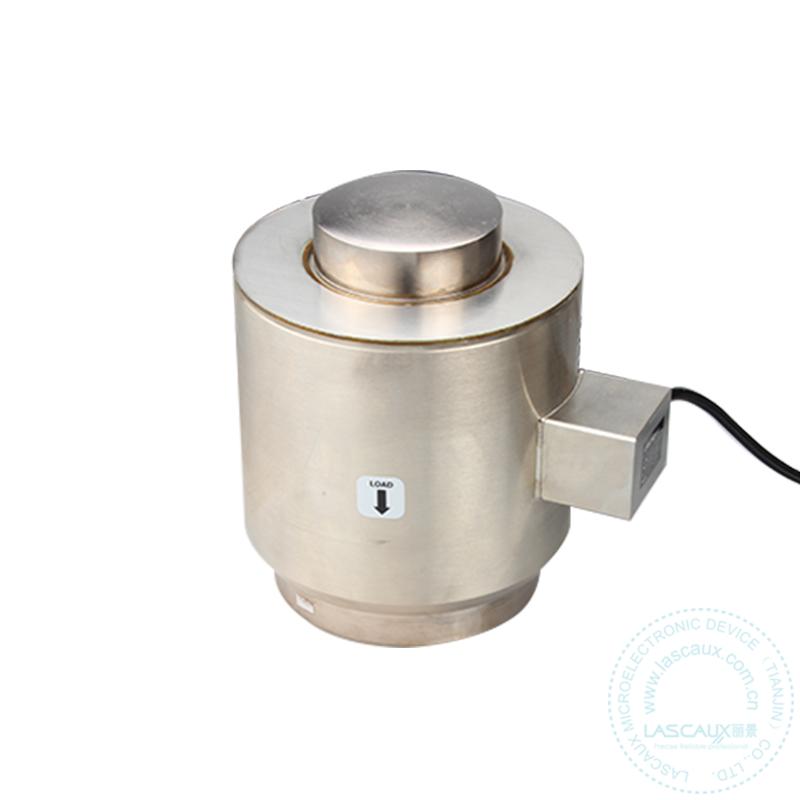

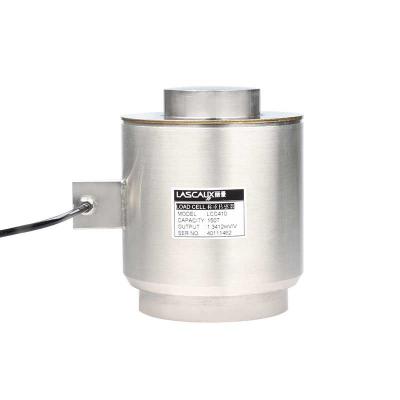

LCC410 Compression Load Cell

Be suitable for the fields of Hopper and tank weighing, ladle scale, Rolling force measurement, testing machine and large tonnage on weighing control

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10t

20t

50t

100t

150t

200t

250t

500t

600t

Compression Load Cell

Description:

Model: LCC410

Data sheet

LCC410 Data

Features:

1. Capacities (t):10 to 600

2. Compact structure, easy to install

3. Heavy Capacity

4. Compression load cell

5. High comprehensive precision, high stability

6. High quality alloy steel with nickel plating

7. Stainless steel material shell

8. Degree of protection reaches to IP67

Applications:

Be suitable for the fields of Hopper and tank weighing, ladle scale, Rolling force measurement, testing machine and large tonnage on weighing control

Specifications:

Rated Load	t	10,20,50,100,150,200,250,500,600
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.02
Non-linearity	%R.O.	±0.05
Hysteresis	%R.O.	±0.05
Repeatability	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP67
The length of the cable	m	10m(10t-20t), 15m(50t-600t)
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	LCC410 Compression Load Cell
Product brand :	LIBIRINTH
Rated Load:	10t，20t，50t，100t，150t，200t，250t，500t，600t
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.1%R.O.
The lengh of the cable:	10t-20t：10m，50t-600t：15m
Input Impedance:	410±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
