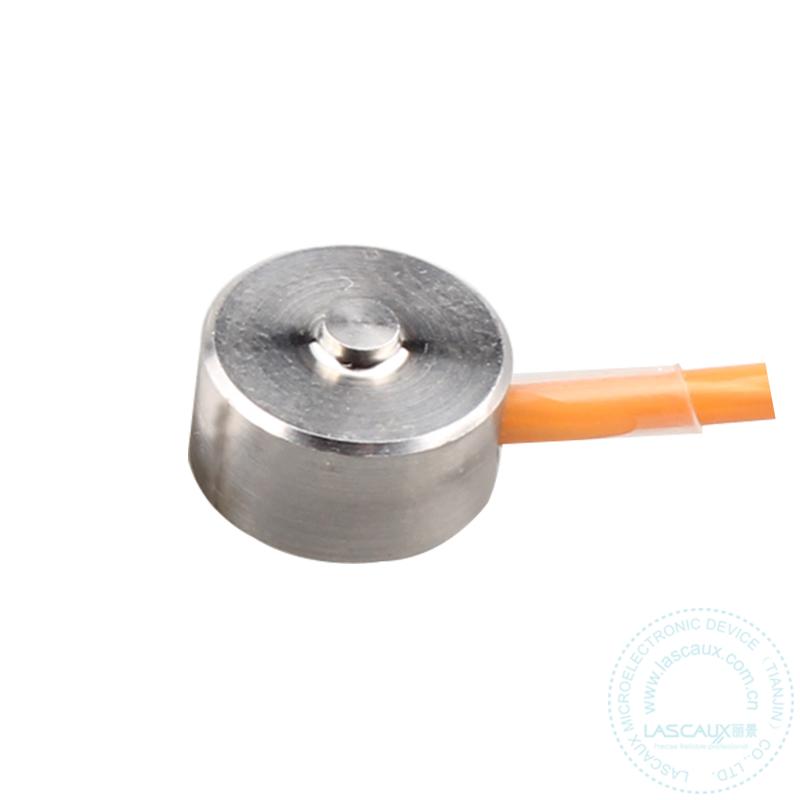

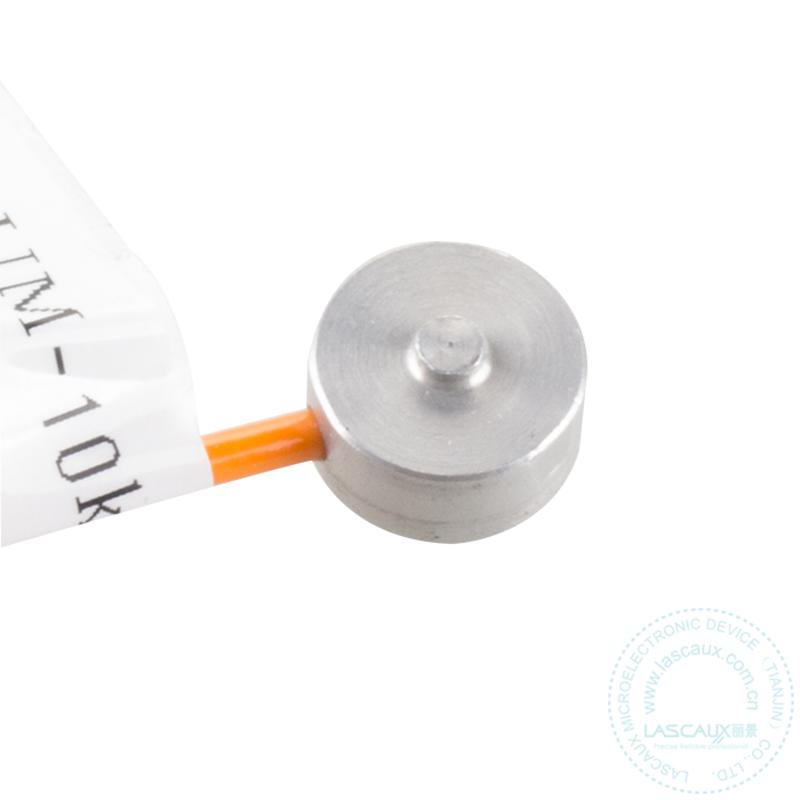

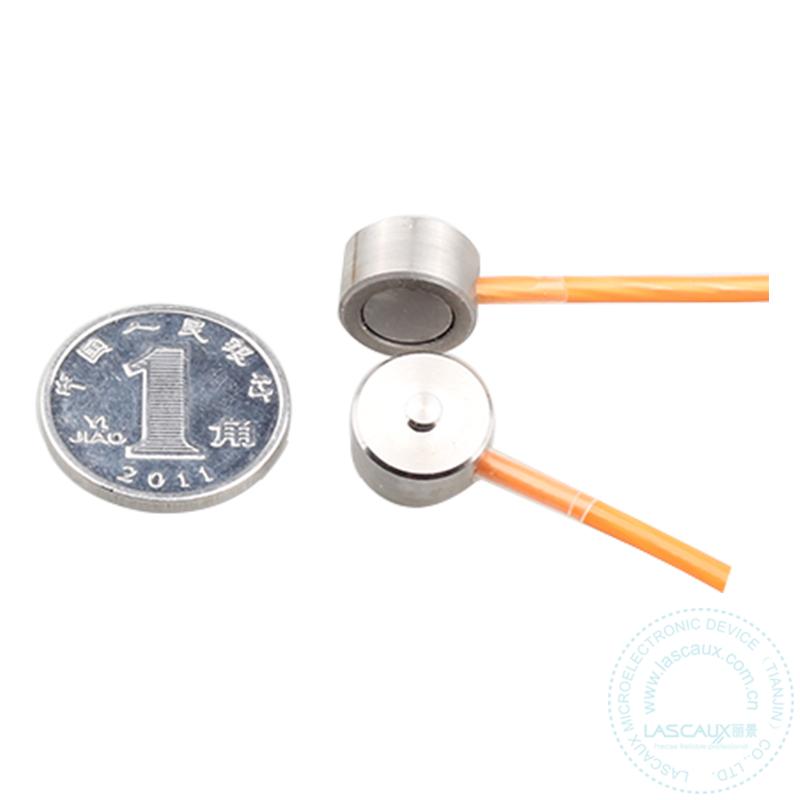

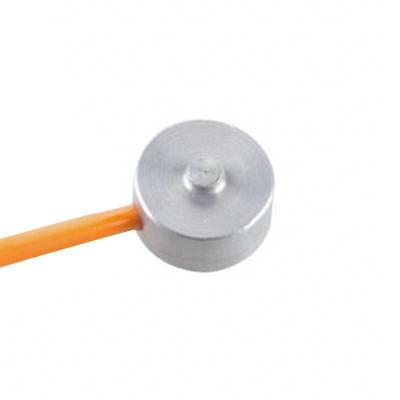

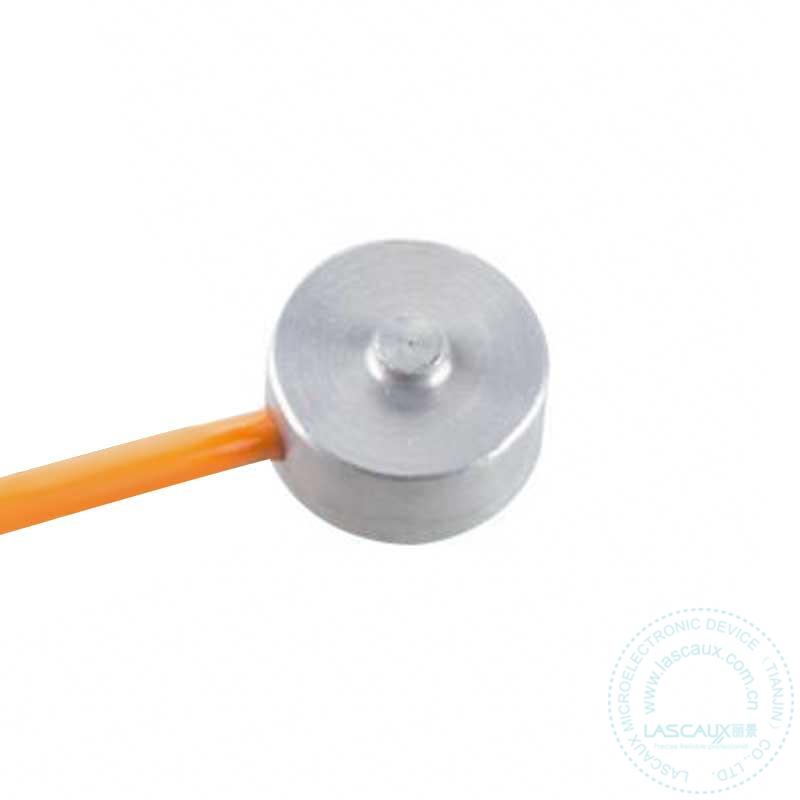

UM Force Transduscer

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

2kg

5kg

10kg

20kg

50kg

100kg

200kg

500kg

UM Micro Force Transducers

Description:

Model: UM

Data sheet

UM data

Features:

1. Capacities (kg): 2 to1000

2. Force Transducer

3. Compact structure, easy mounting

4. Delicate structure, low profile

5. Stainless steel material, corrosion resistance

6. Degree of protection reaches to IP65, High quality silica gel

7. High comprehensive precision, high stability

8. Compression sensor

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into

the device, in order to monitor the force.

Specifications:

Rated Load	kg	2,5,10,20,50,100,200,500,1000
Rated Output	mV/V	1.2-1.5
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.5
Creep/30 minutes	%R.O.	±0.5
Repeatability	%R.O.	±0.3
Non-linearity	%R.O.	±0.5
Repeatability	%R.O.	±0.3
Hysteresis		±0.5
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	3-5
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Stainless Steel
Degree of protection		IP65
The length of the cable	m	1m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	UM Force Transduscer
Product brand :	LIBIRINTH
Rated Load:	2kg，5kg，10kg，20kg，50kg，100kg，200kg，500kg，1t
Rated Output:	1.2~1.5mV/V
Comprehensive Error:	0.5%R.O.
The lengh of the cable:	1m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	3-5v
