MDT Force Transduscer

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

2kg

5kg

10kg

20kg

50kg

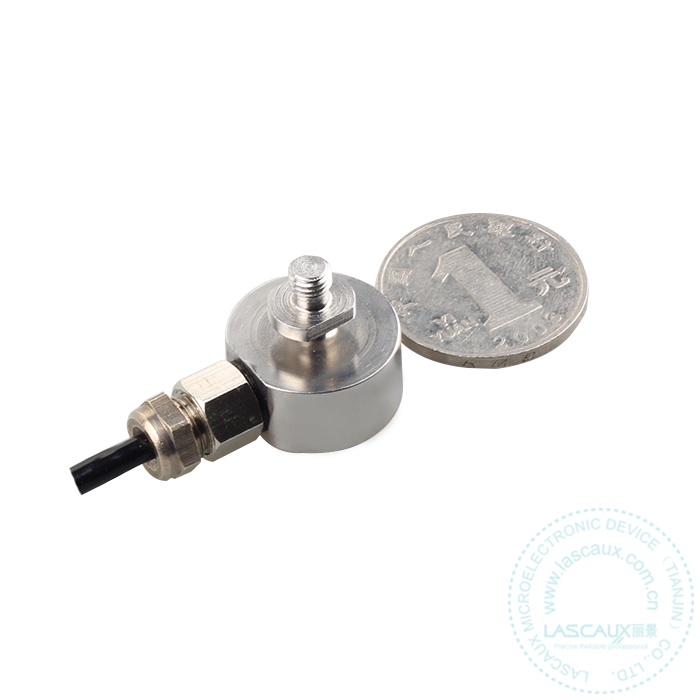

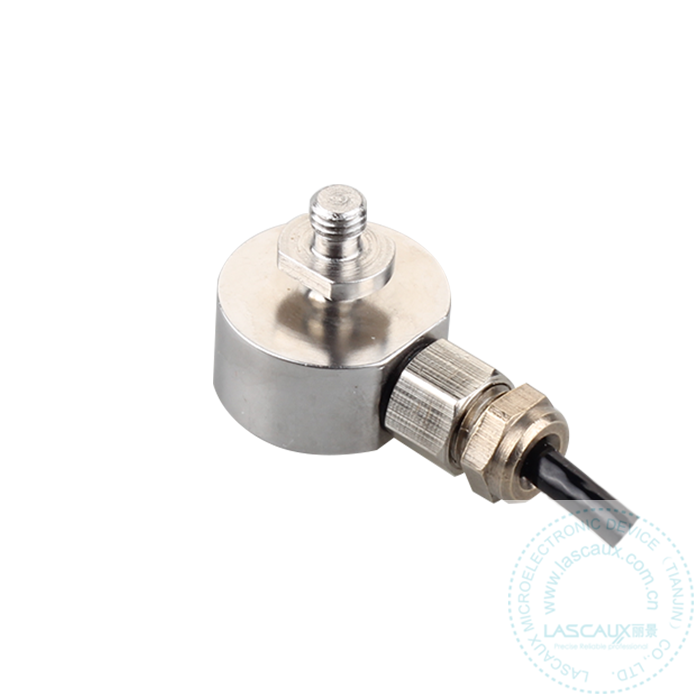

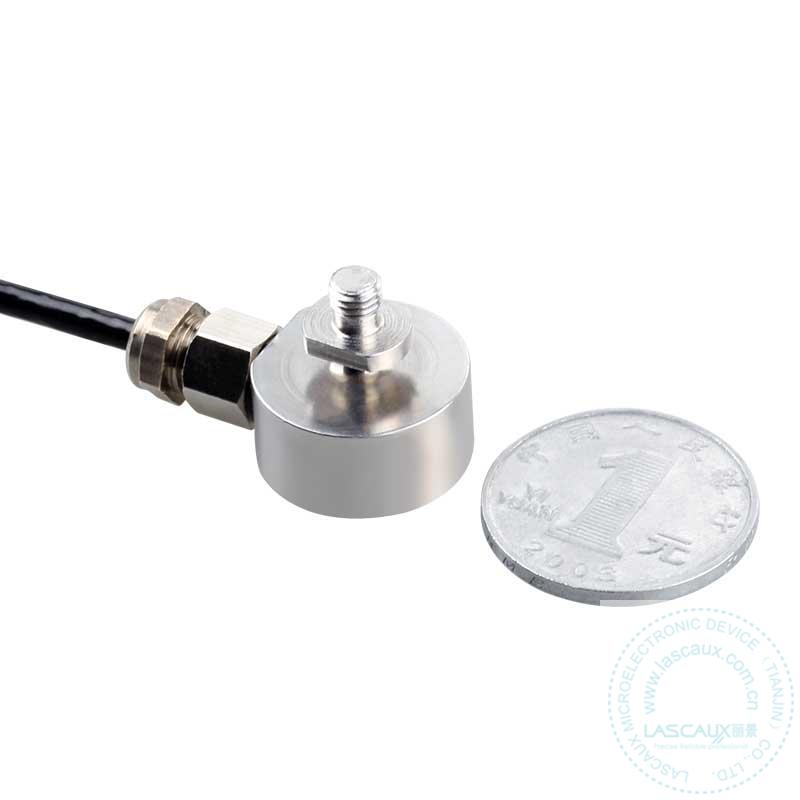

MDT Micro Force Transducers

Description:

Model: MDT

Data sheet

MDT data

Features:

1. Capacities (kg): 5 to 50

2. Force Transducer

3. Compact structure, easy mounting

4. Delicate structure, low profile

5. Stainless steel material, corrosion resistance

6. Degree of protection reaches to IP66, High quality silica gel

7. High comprehensive precision, high stability

8. Compression and tension are available

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

Specifications:

Rated Load	kg	5,10,20,50
Rated Output	mV/V	1.6-1.8
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.5
Creep/30 minutes	%R.O.	±0.5
Repeatability	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	3-5
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Stainless Steel
Degree of protection		IP66
The length of the cable	m	1m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Specification

Product name :	MDT Force Transduscer
Product brand :	LIBIRINTH
Rated Load:	2kg，5kg，10kg，20kg，50kg
Rated Output:	2.0mV/V
Comprehensive Error:	0.03%R.O.
The lengh of the cable:	1m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	3-5v
