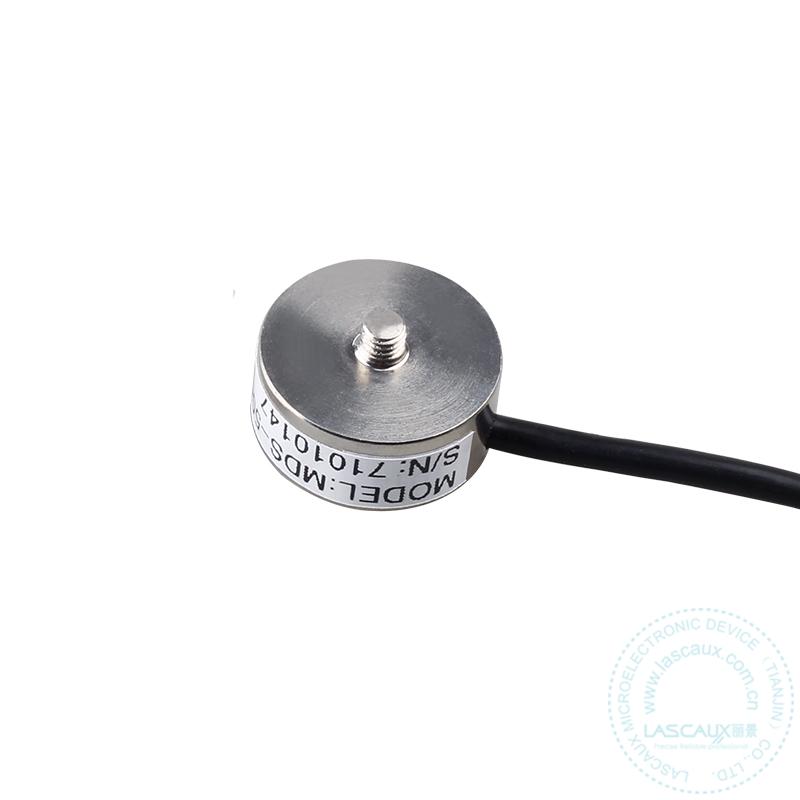

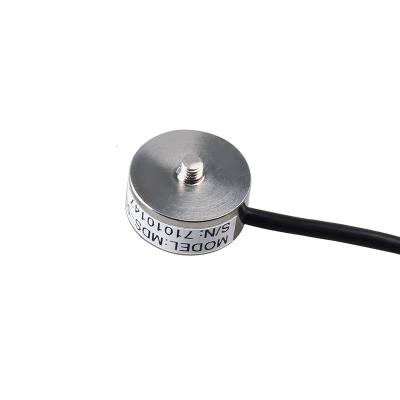

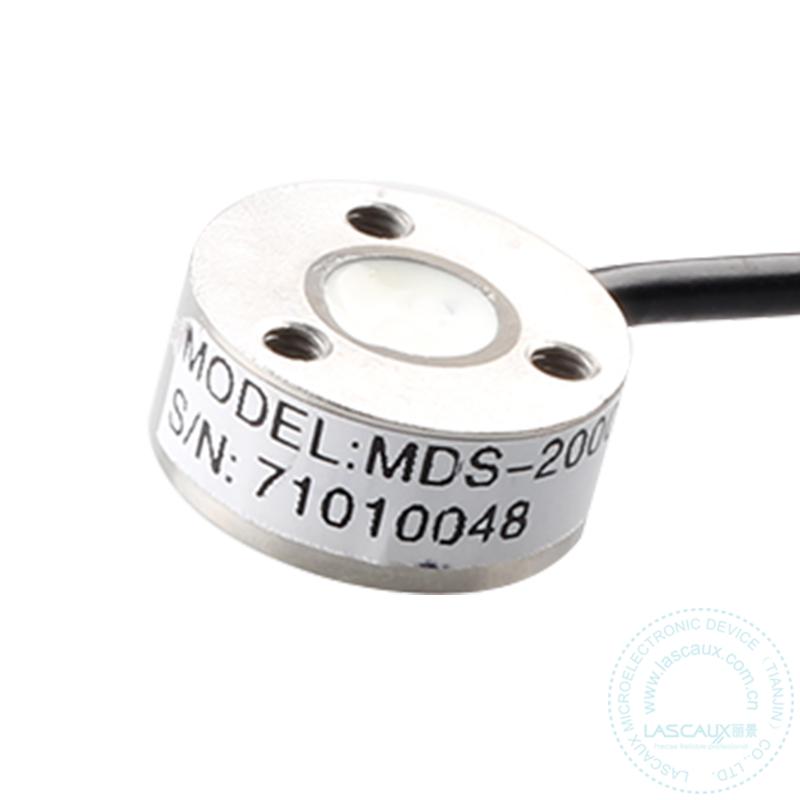

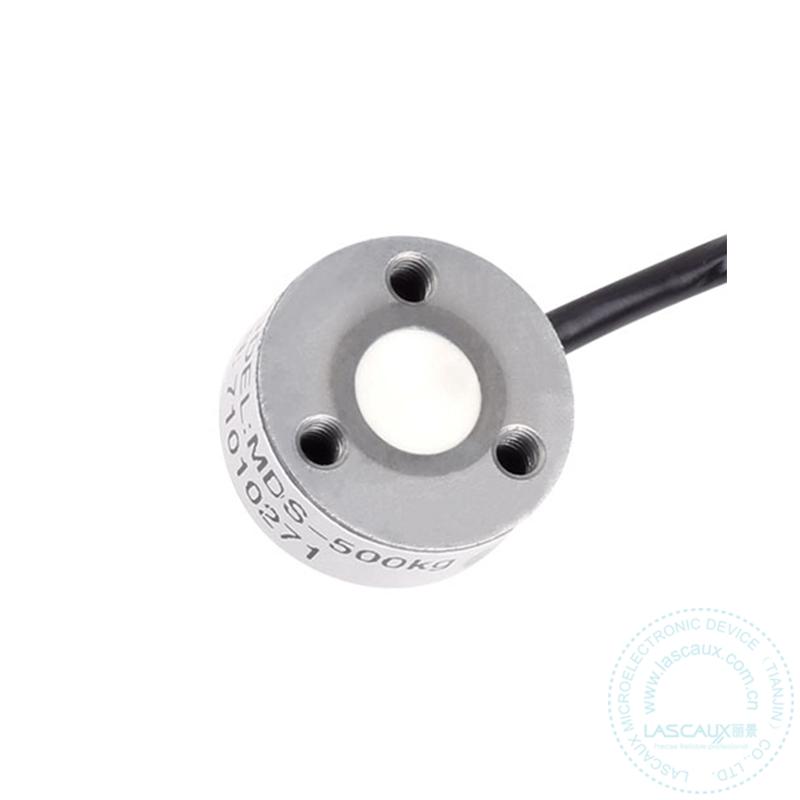

MDS Micro Force Transducers

Description:

Model: MDS

Data sheet

Features:

1. Capacities (kg): 2 to 2000

2. Force Transducer

3. Compact structure, easy mounting

4. Delicate structure, low profile

5. Aluminum and Stainless Steel material

6. Degree of protection reaches to IP65

7. High comprehensive precision, high stability

8. Compression Load Cell

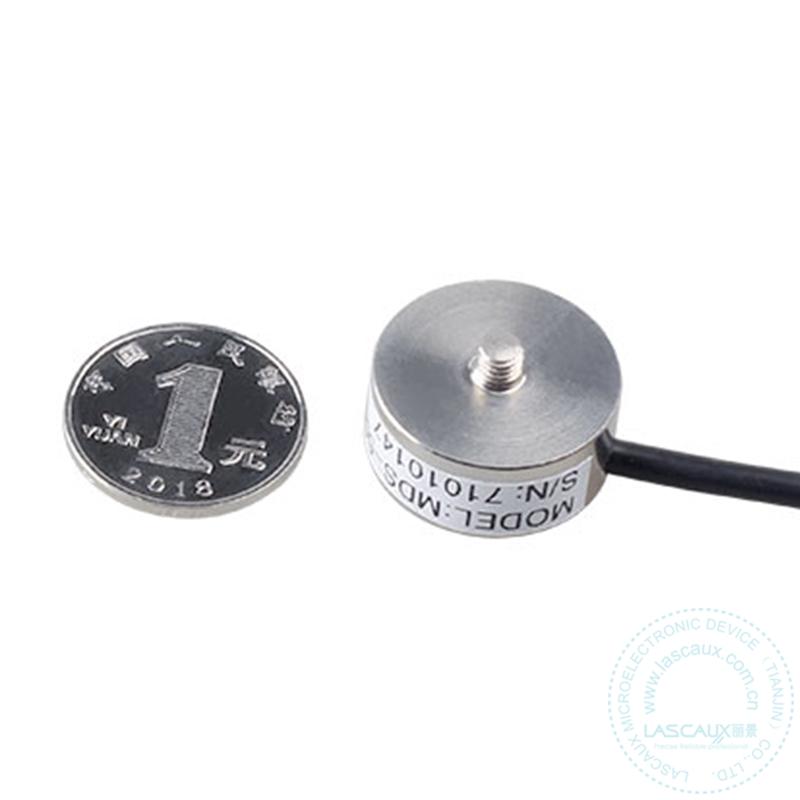

9. Diameter is 25.4mm, the height is less than 15mm

10. For Static and Dynamic Applications

11. Strain gauge Type Transducer

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device,

in order to monitor the force.

Specifications:

Rated Load	kg	2,5,10,20,50,100,200,500
Rated Load	t	1, 2
Rated Output	mV/V	1~1.5±0.20
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Creep/30 minutes	%R.O.	±0.05
Non-linearity	%R.O.	±0.05
Hysteresis	%R.O.	±0.05
Repeatability	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum or Stainless Steel
Degree of protection		IP65/IP67
The length of the cable	m	1m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Product name :	MDS Force Transduscer
Product brand :	LIBIRINTH
Rated Load:	2kg，5kg，10kg，20kg，50kg，100kg，200kg，500kg，1t，2t
Rated Output:	1.0mV/V(2kg-5kg),1.6-1.8mV/V(10kg-2t)
Comprehensive Error:	0.5%R.O.
Repeatability:	0.3%R.O.
The lengh of the cable:	1m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	3-5v
