LSM100 Force Transducer Pull Pressure Sensor

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

本店价：

👈Consult customer service for a quote 2 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

2kg

5kg

10kg

20kg

50kg

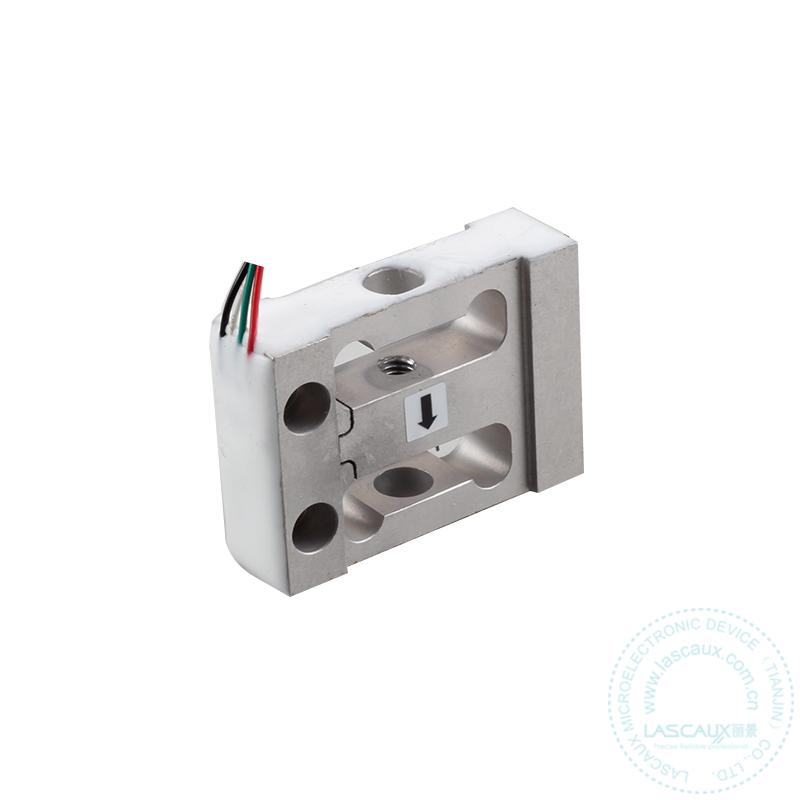

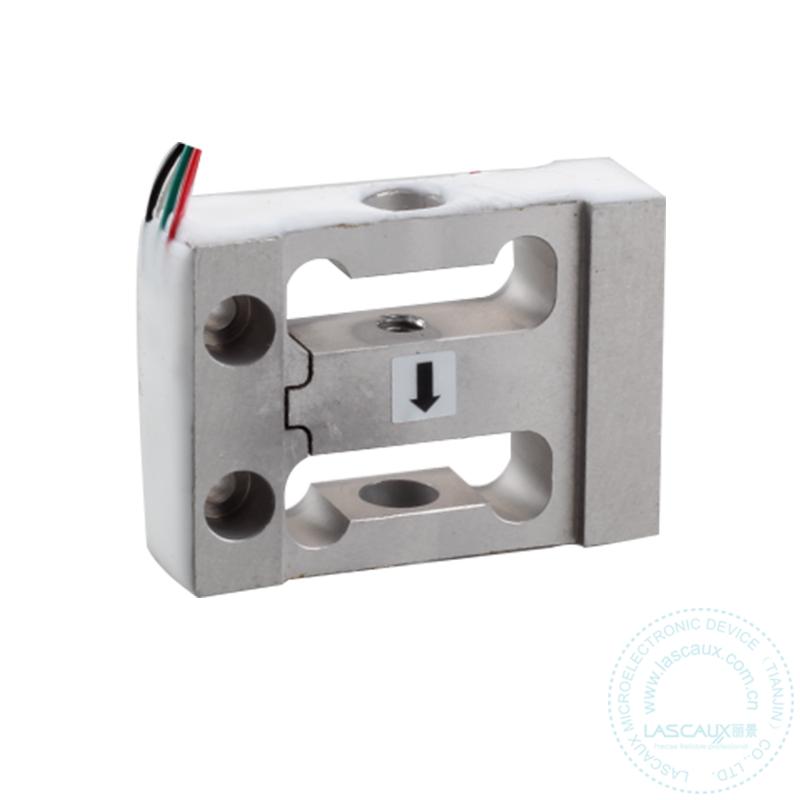

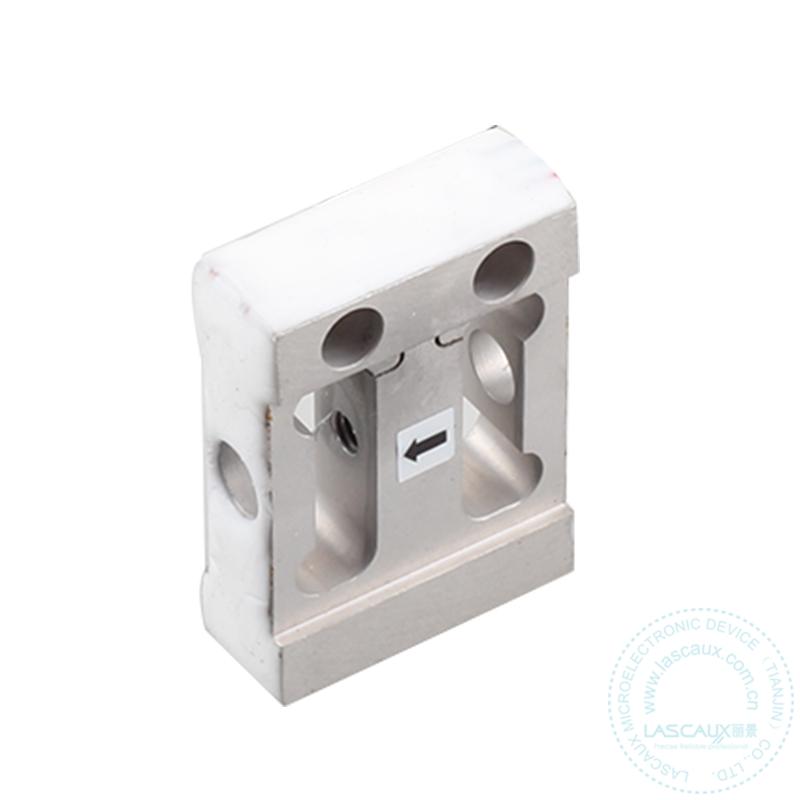

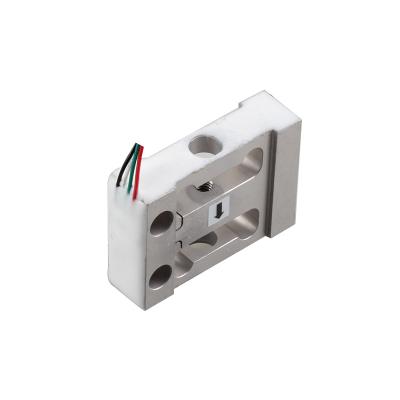

LSM100 Micro Force Transducers

Description:

Model: LSM100

Data sheet

LSM100 Data

Features:

1. Capacities (kg):2 to 50

2. Force Transducer

3. Compact structure, easy mounting

4. Delicate structure, low profile

5. Anodized Aluminum Alloy

6. High comprehensive precision, high stability

7. Compression and tension sensor

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device,

in order to monitor the force.

Specifications:

Rated Load	kg	2,5,10,20,50
Rated Output	mV/V	2
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.03
Creep/30 minutes	%R.O.	±0.03
Repeatability	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	10
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	mm	170
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Specification

Product name :	LSM100 Force Transducer Pull Pressure Sensor
Product brand :	LIBIRINTH
Rated Load:	2kg，5kg，10kg，20kg，50kg
Rated Output:	2.0mV/V
Comprehensive Error:	0.03%R.O.
The lengh of the cable:	170mm
Recommended Excitation Voltage:	3-5v
