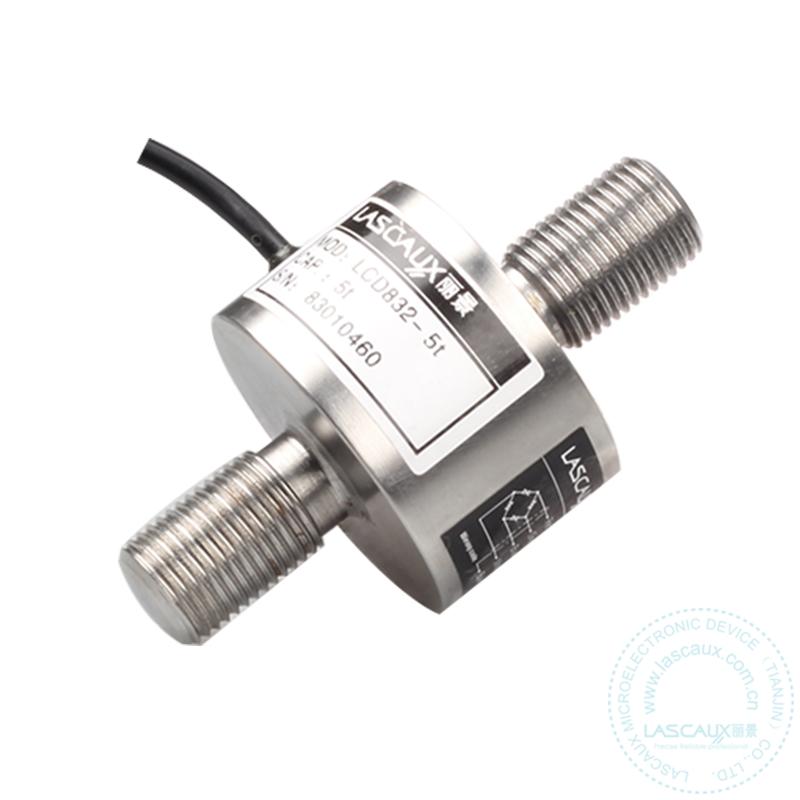

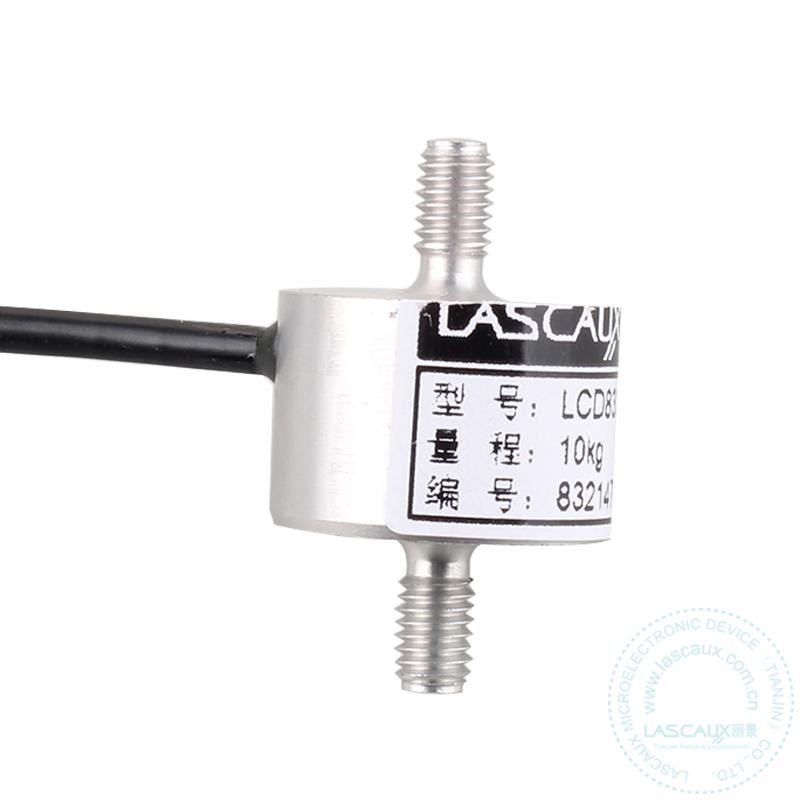

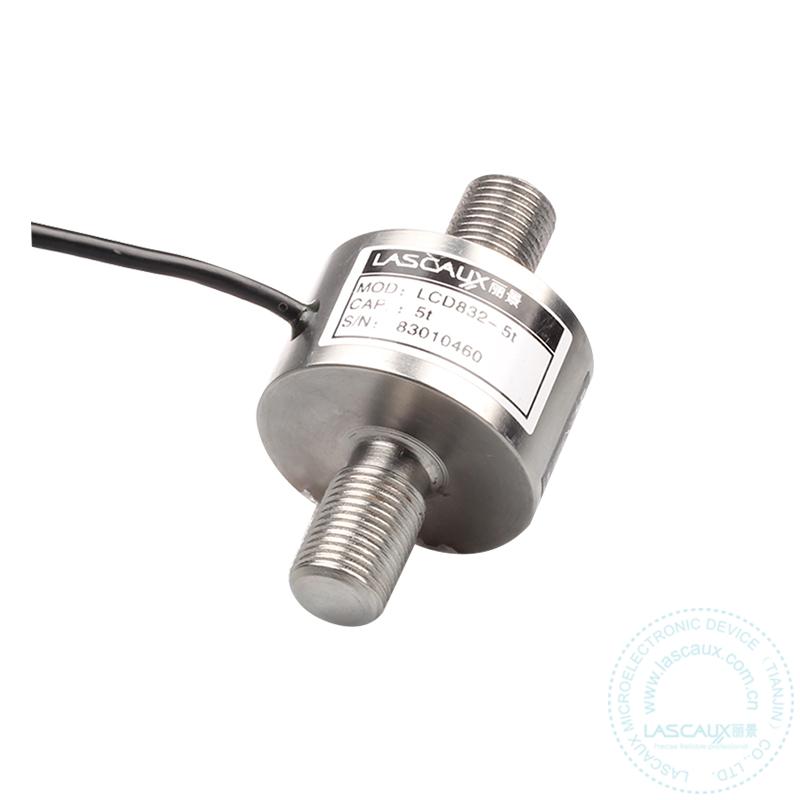

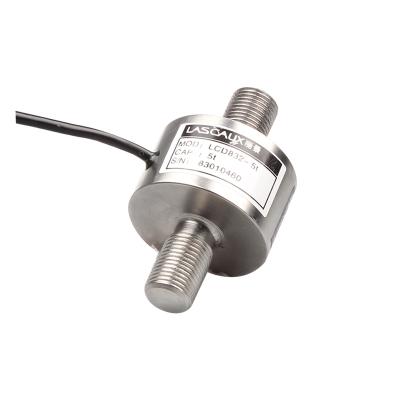

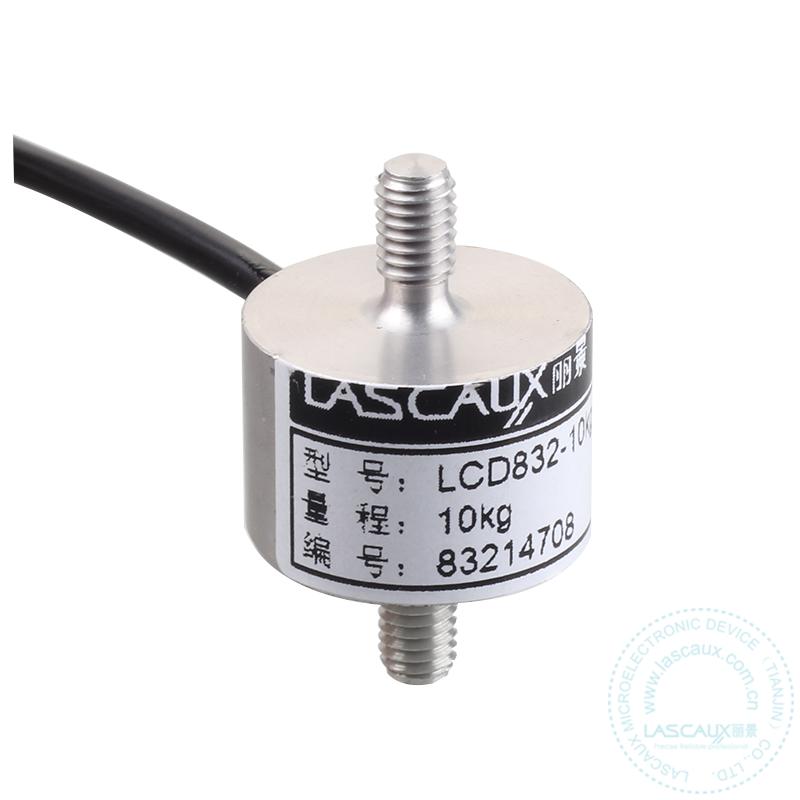

LCD832 Low Profile Disk Load Cell

Description：

Model: LCD832

Data sheet

Features:

1. Capacities (kg): 5 to 5000

2. Compact structure, easy to install

3. Compression and tension load cell

4. Small size with Low profile

5. Aluminum and Stainless steel material

6. Static and Dynamic Applications

Applications:

Be suitable for a wide range of applications including testing or weighing systems, material testing machines, Dynamometers and so on.

Specifications:

Rated Load	kg	5,10,20,50,100,200,500
Rated Load	t	1, 2, 5
Rated Output	mV/V	1.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Non-linearity	%R.O.	±0.3
Hysteresis	%R.O.	±0.3
Repeatability	%R.O.	±0.1
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	350±5
Output impedance	Ω	350±3
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum (≤20kg)and Stainless Steel（≥50kg）
Degree of protection		IP65/IP67
The length of the cable	m	2m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCD832 Force Transducer Pull Pressure Sensor
Product brand :	LIBIRINTH
Rated Load:	5kg，10kg，20kg，50kg，100kg，200kg，500kg，1t，2t，5t
Rated Output:	1.0mV/V
Comprehensive Error:	0.3%R.O.
The lengh of the cable:	3m
Input Impedance:	350±5Ω
Output Impedance:	350±3Ω
Recommended Excitation Voltage:	5-12v
