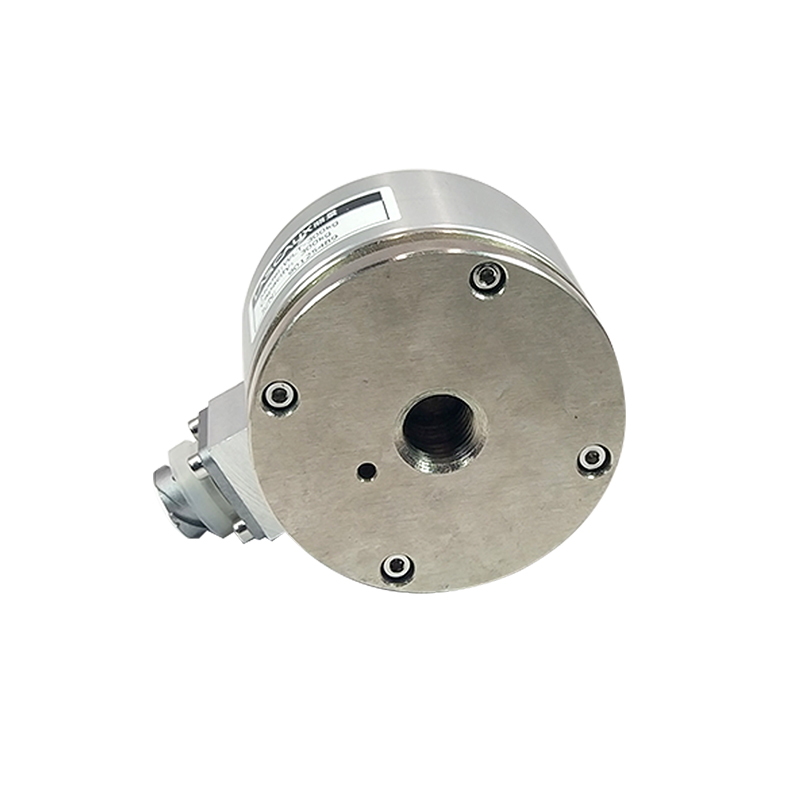

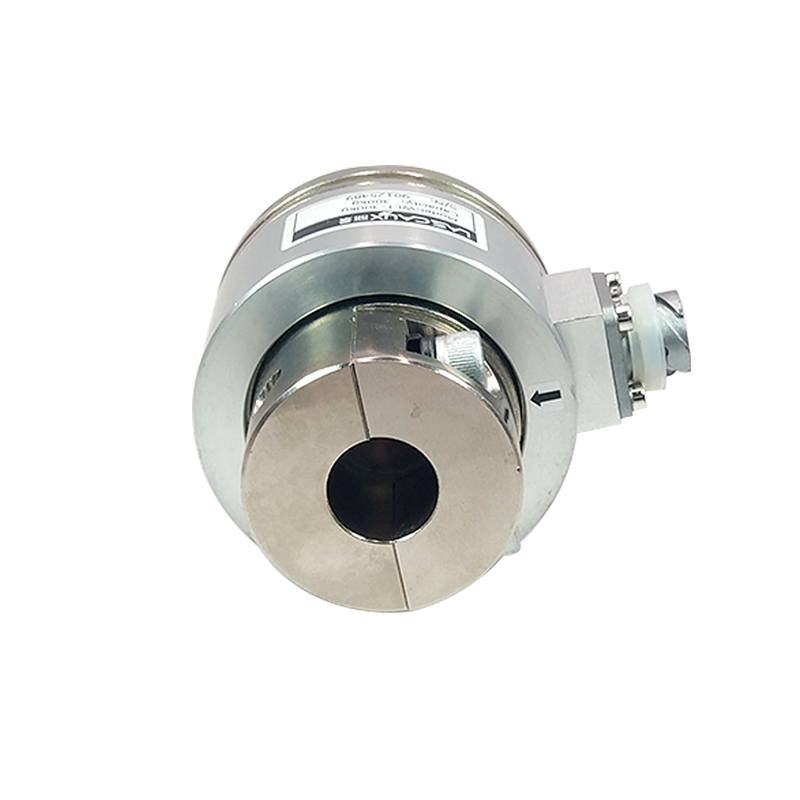

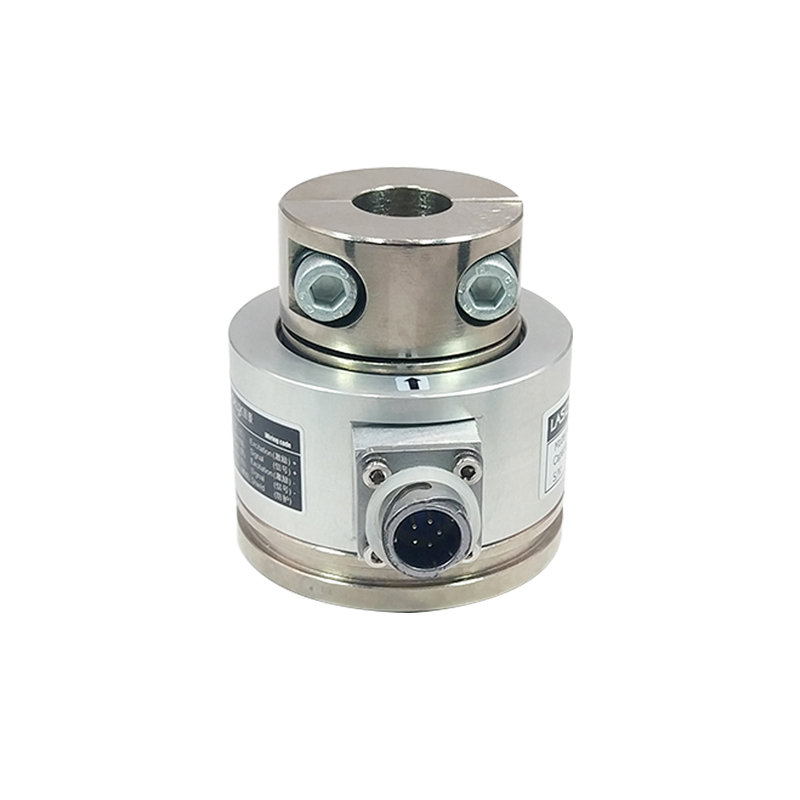

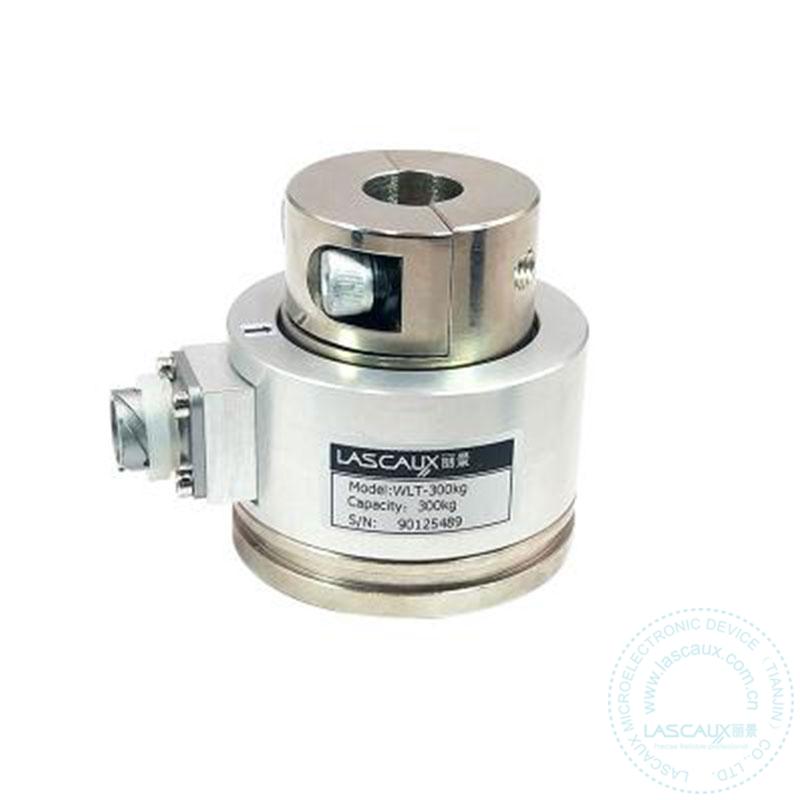

WLT Tension Sensor

Be suitable for measuring the tension of plastic film and tape used for winding on the roller machinery, the object is including mental wire, electric wires, cable.

本店价：

👈Consult customer service for a quote 16 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

5kg

10kg

25kg

50kg

100kg

WLT张力传感器

WLT Tension Sensor

Description:

Model: WLT

Data sheet

WLT Data

Features:

1. Capacities (kg): 5 to 100

2. Resistance strain measurement methods

3. Degree of protection can reach to IP66

4. It can accurately measure in the low tension

5. Compact structure, save the space, easy to install

6. High comprehensive precision, high stability

7. High quality alloy steel with nickel plating

8. Stainless steel material is available

9. Many installations types can satisfy various needs

Applications:

Be suitable for measuring the tension of plastic film and tape used for winding on the roller machinery, the object is including mental wire, electric wires, cable

Specifications:

Rated Load	kg	5,10,25,50,100
Rated Output	mV/V	1
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	WLT Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	5kg，10kg，25kg，50kg，100kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.0mV/V
Material:	Alloy Steel
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
