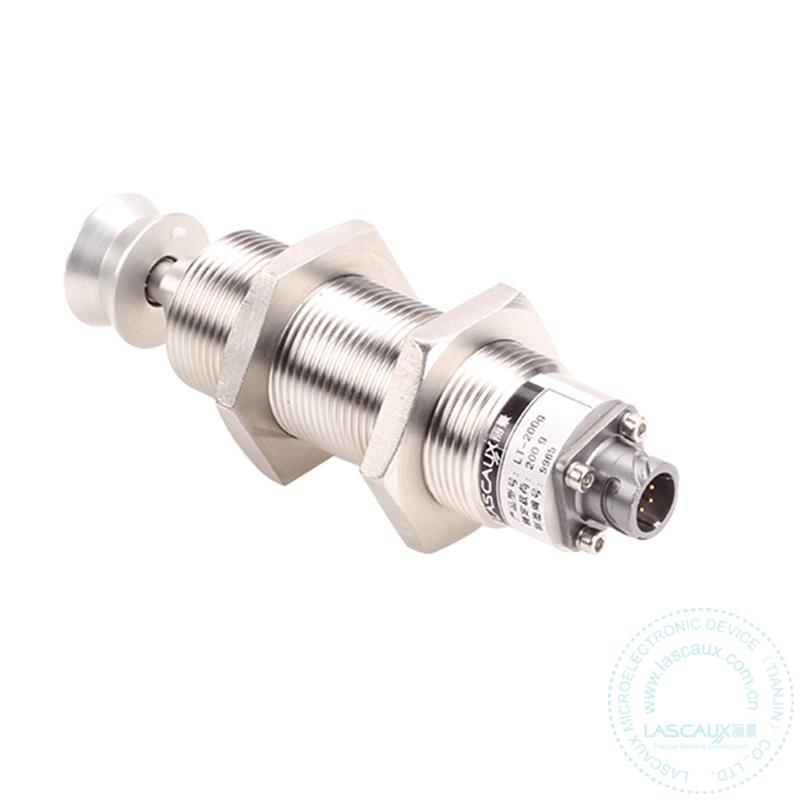

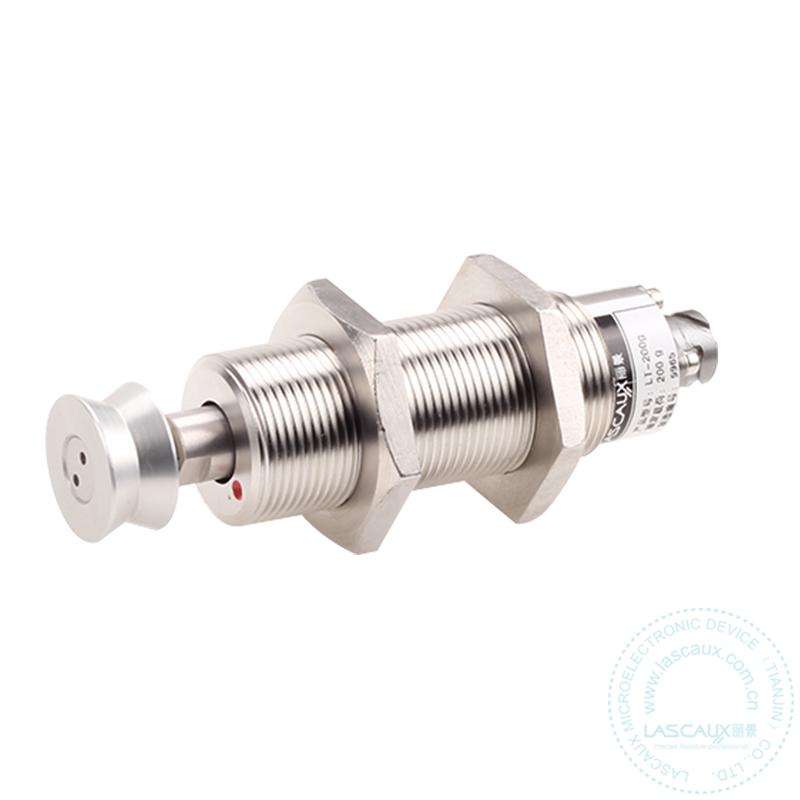

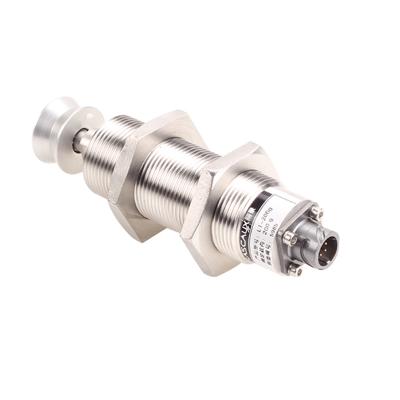

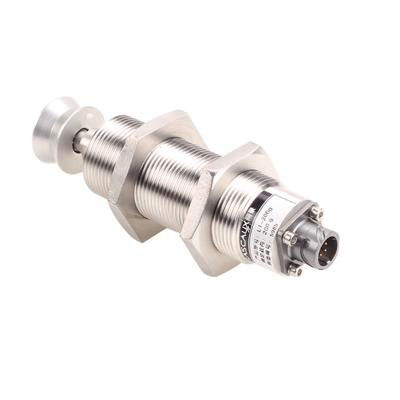

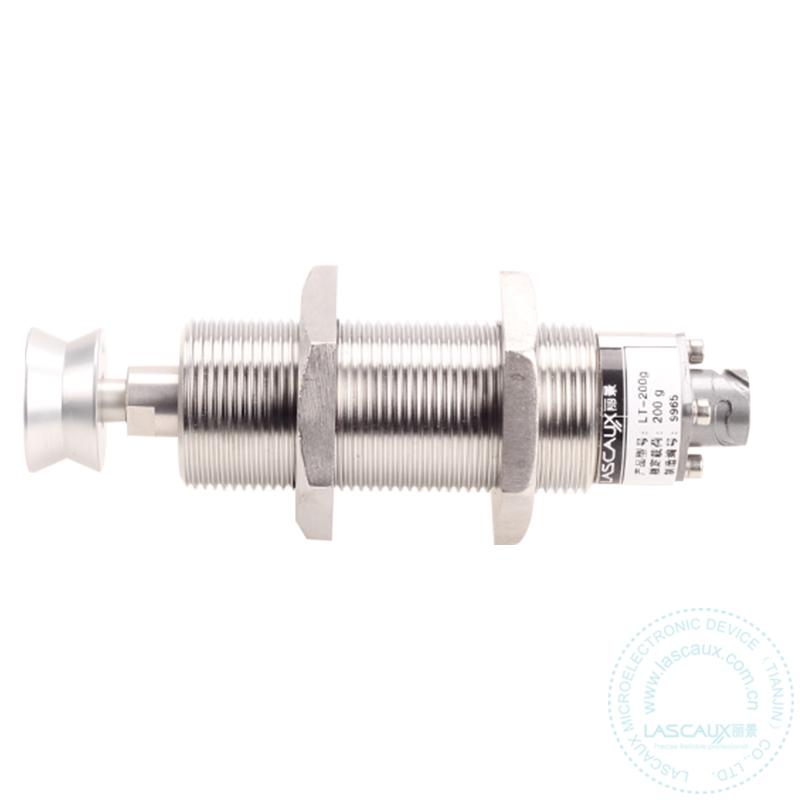

LT Tension Sensor

Be suitable for measuring the tension of uncoiling、coiling and moving, the object is including electric wires, metal wire, glass fiber, nylon, rubber and composite materials

本店价：

👈Consult customer service for a quote 8 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

0.2kg

0.5kg

1kg

2kg

LT张力传感器

Tension Sensor

Description:

Model: LT

Data sheet

LT Data

Features:

1. Capacities (g): 200 to 2000

2. Resistance strain measurement methods

3. Compact structure, save the space

4. Various installation ways: overlapping style or threaded style

5. Many installations types can satisfy various needs

6. It can accurately measure in the low tension

7. Durable in use，Highly optimized for general use

8. Roller is made of Aluminum

Applications:

Be suitable for measuring the tension of uncoiling、coiling and moving, the object is including electric wires, metal wire, glass fiber, nylon, rubber and composite materials

Specifications:

Rated Load	g	200,500,1000,2000
Rated Output	mV/V	1
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	LT Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	0.2kg，0.5kg，1kg，2kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.0mV/V
Material:	Aluminum
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
