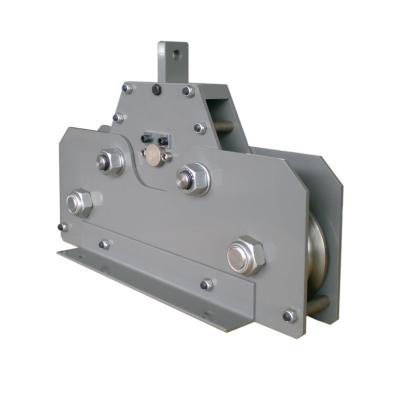

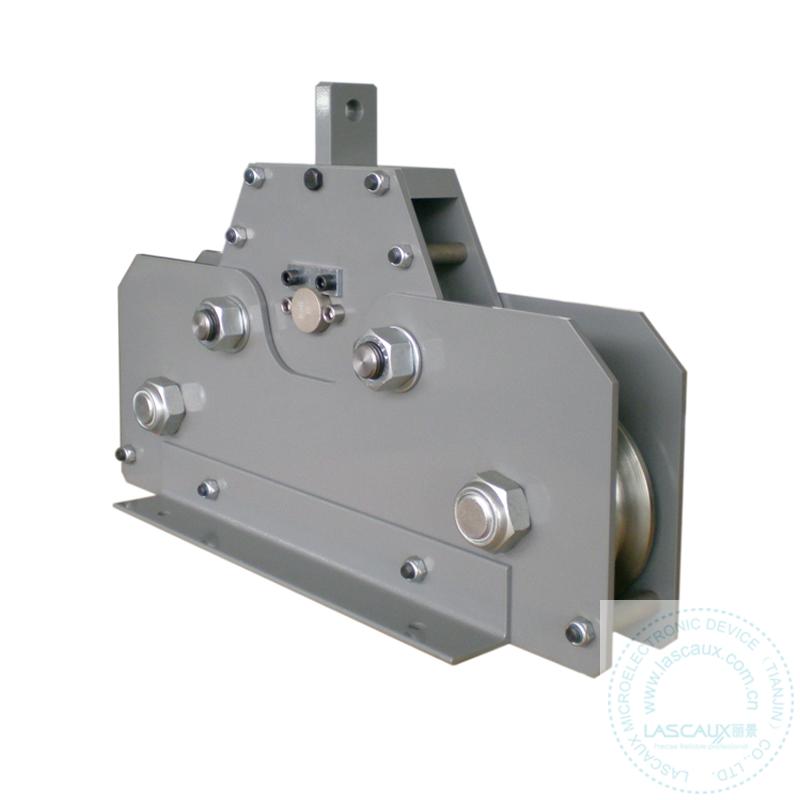

RL Tension Sensor

Be suitable for measuring the tension, the object is including cable, anchor and other similar products

本店价：

👈Consult customer service for a quote 3 have been sold|0 evaluation

Capacity

10t

20t

30t

RL张力传感器

Tension Sensor

Description:

Model: RL

Data sheet

Features:

1. Capacities (t): 5 to 30

2. Resistance strain measurement methods

3. High comprehensive precision, high stability

4. Degree of protection reaches to IP65

5. Removable, compact structure, easy to install and maintenance

6. The range of tension can reach to 500ton; the diameter of rope can reach to 115mm

Applications:

Be suitable for measuring the tension, the object is including cable, anchor and other similar products

Specifications:

Rated Load	t	5,10,20,30
Rated Output	mV/V	1.2-1.5mV/V
Zero Balance	%R.O.	≤±2
Comprehensive Error	%R.O.	<±3
Non-linearity	%R.O.	<±0.5
Hysteresis	%R.O.	<±0.5
Repeatability	%R.O.	<±0.5
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Steel
Degree of protection		IP65
The length of the cable	m	10m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Product name :	RL Tension Sensor
Product brand :	LIBIRINTH
Rated Load:	5t，10t，20t，30t
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.2~1.5mV/V
Material:	Alloy Steel
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	10m
Recommended excition voltage:	5-12V
