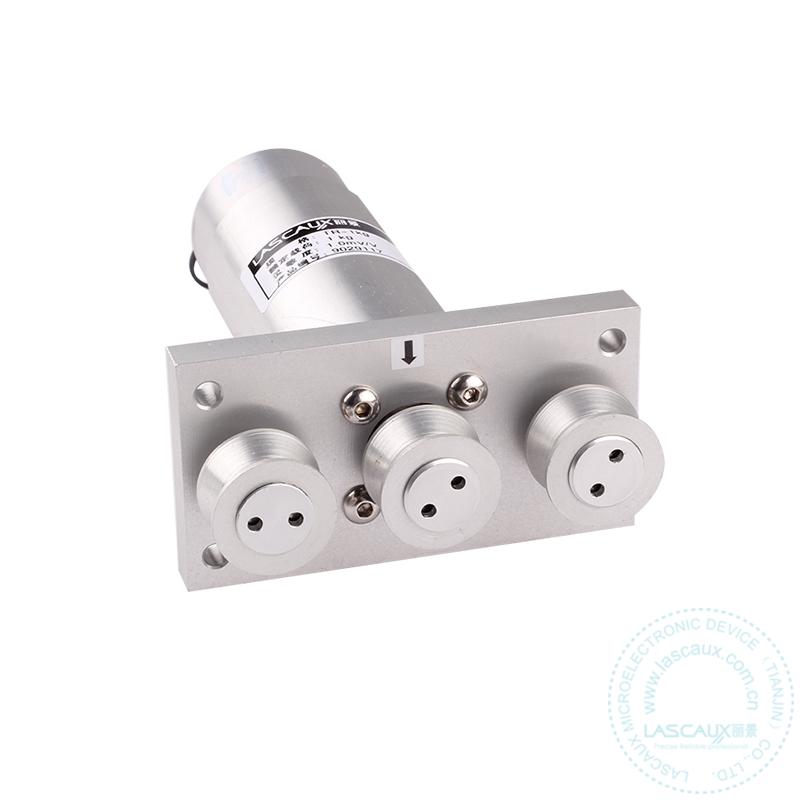

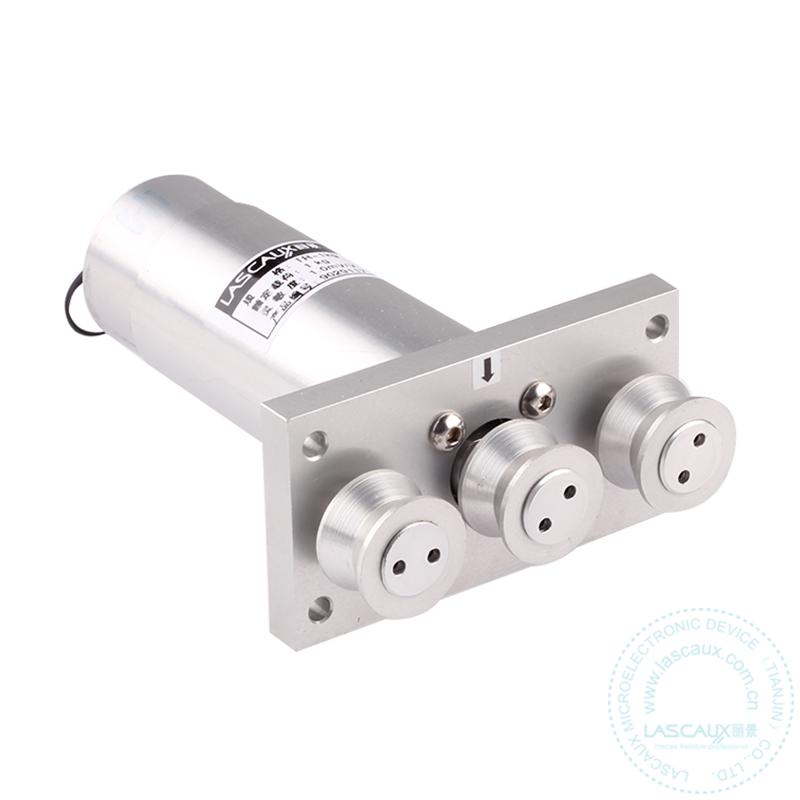

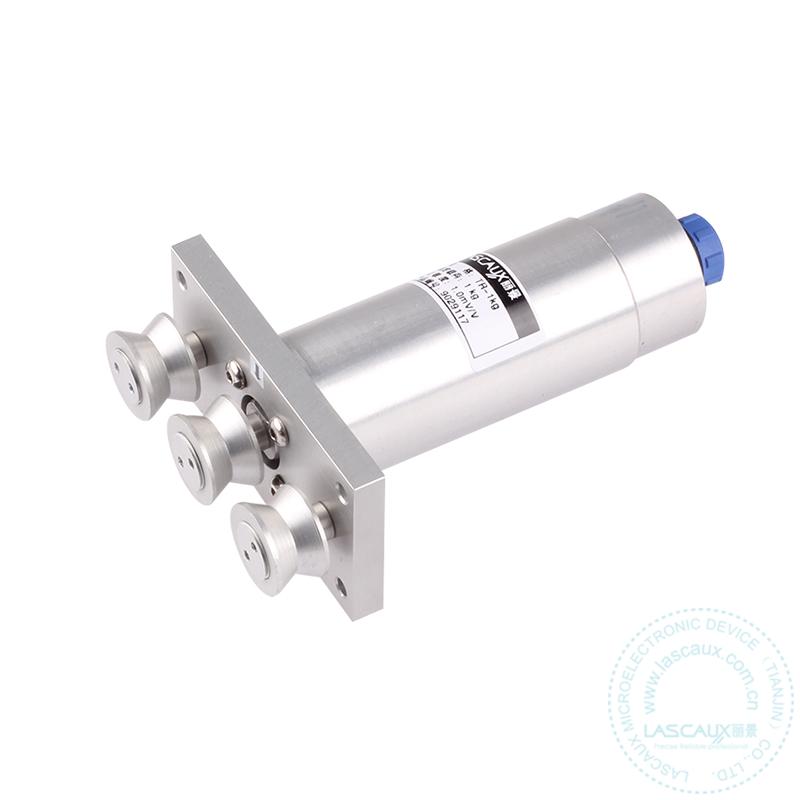

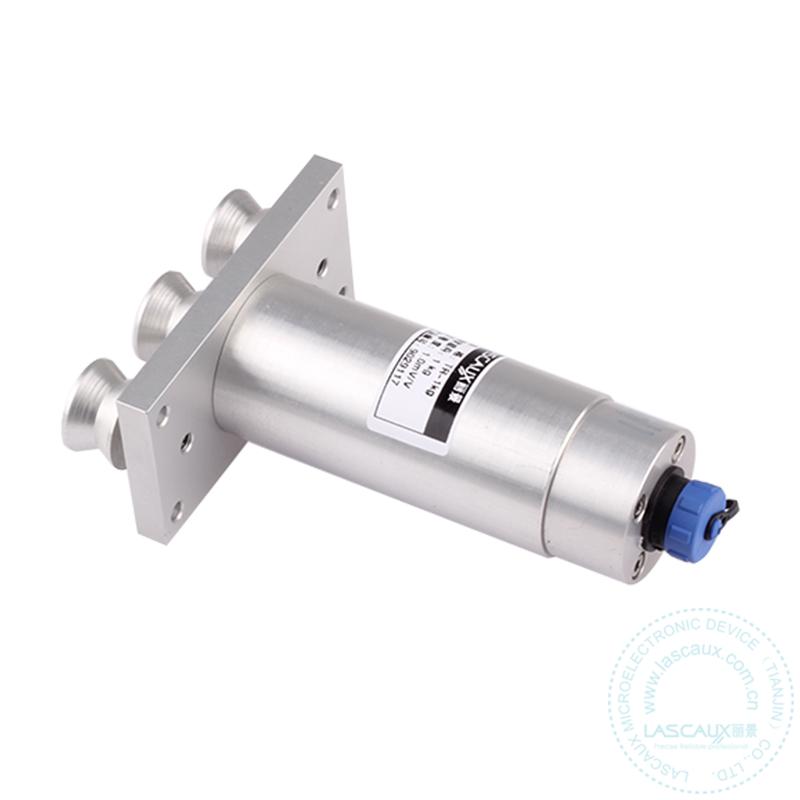

TR Tension Sensor

Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.

本店价：

👈Consult customer service for a quote 7 have been sold|0 evaluation

Capacity

0.1kg

0.2kg

0.5kg

1kg

2kg

5kg

10kg

20kg

50kg

Tension Sensor

Description:

Model: TR

Data sheet

Features:

1. Capacities (kg):0.1 to 50 kg

2. Resistance strain measurement methods

3. Compact structure, durable in use，easy to install

4. High comprehensive precision, high stability

5. Roller is made of Aluminum、chromium plating Alloy Steel、Plastic、Ceram

6. Be matched with amplifiers, 0-10v or 4-20mA are available

7. On-line tension measurement accurately

Applications:

Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.

Specifications:

Rated Load	kg	0.1,0.5,1,2,5,10,20,50
Rated Output	mV/V	1.5
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.03
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.03
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Product name :	TR Tension Sensor
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	0.1kg，0.2kg，0.5kg，1kg，2kg，5kg，10kg，20kg，50kg
Custom-Made:	YES
Output Type:	Analog millivolt voltage signal output：mV/V
Rated Output:	1.5mV/V
Material:	Aluminum
Output Impedance:	380±10Ω
Input Impedance:	350±5Ω
The length of the cable:	3m
Recommended excition voltage:	5-12V
