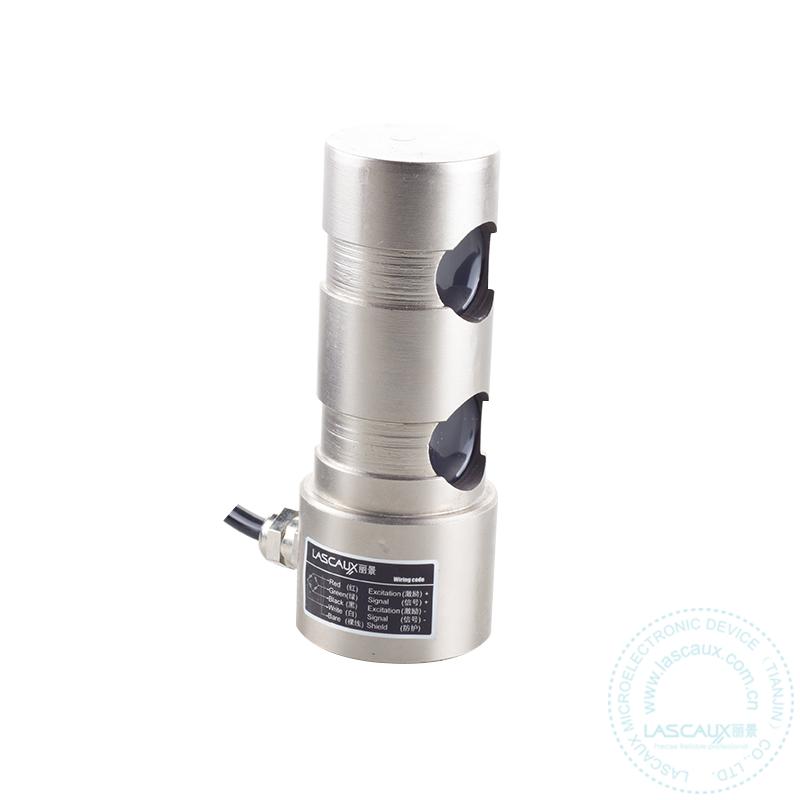

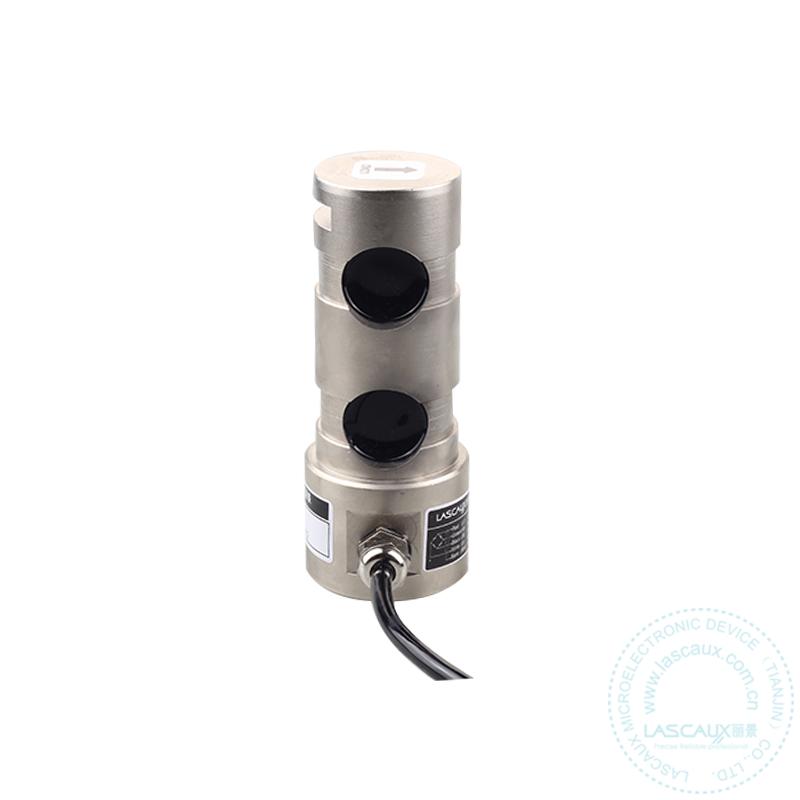

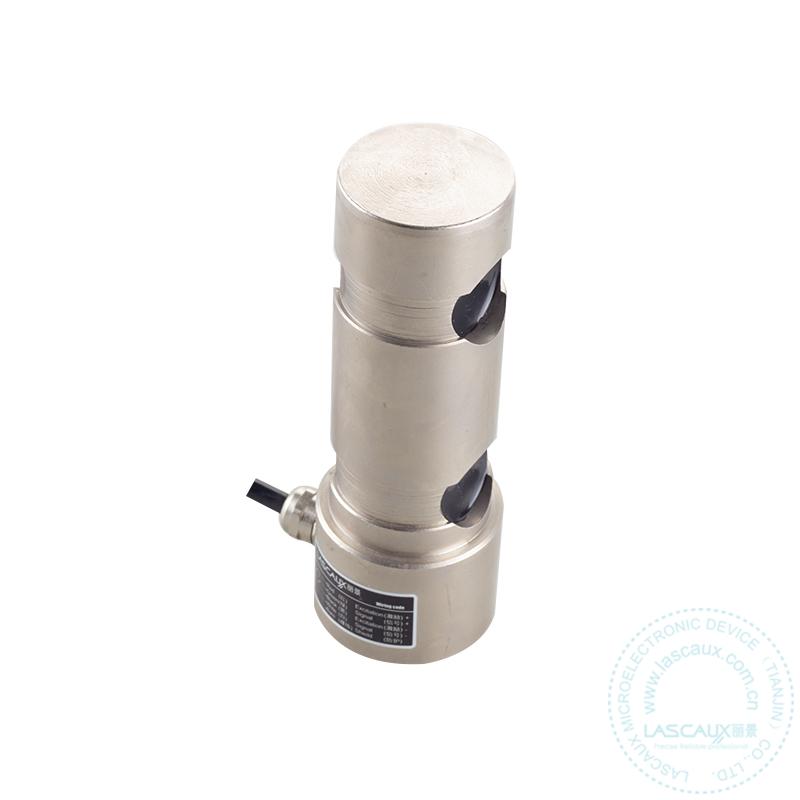

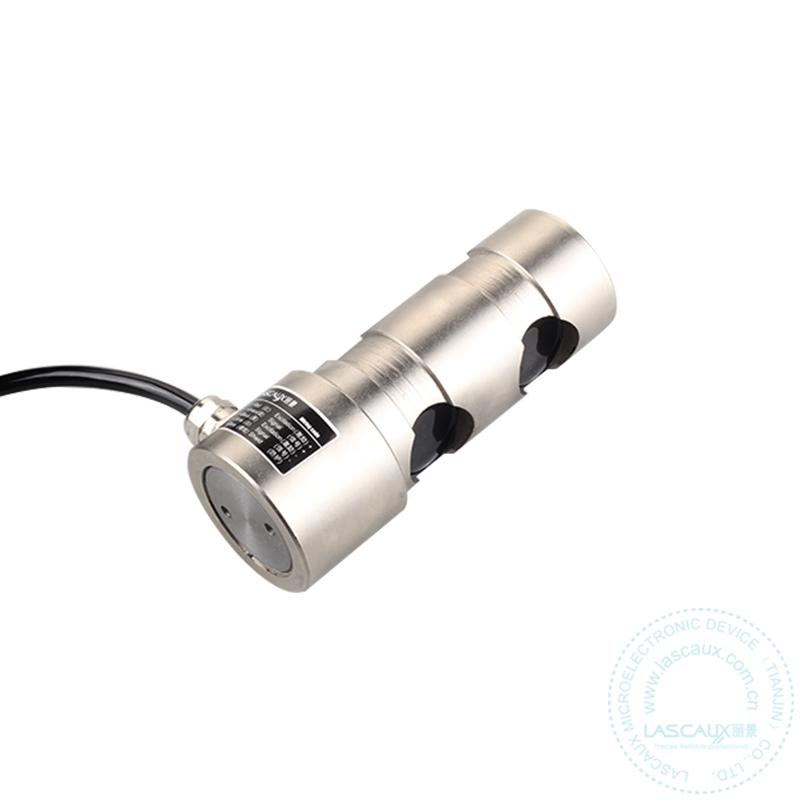

616 Double Ended Shear Beam Load Cell

Be used in rope, shackles, bearing blocks and other special scales.

本店价：

👈Consult customer service for a quote 9 have been sold|0 evaluation

Capacity

10t

20t

40t

616 Load Pins

Description：

Model: 616

Features:

1. Capacities (t): 2 to 40

2. Compact structure, hollow section, tube type

3. The capacity of anti-torsion and bend resistance is very strong

4. Easy to assemble and use

5. High stability

6. High quality alloy steel with nickel plating

Applications:

Be used in rope, shackles, bearing blocks and other special scales.

Specifications:

Rated Load	t	2,5,10,20,40
Rated Output	mV/V	1.5
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.5
Repeatability	%R.O.	±0.2
Creep/30 minutes	%R.O.	±0.2
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel/Stainless Steel
Degree of protection		IP66/ip68
The length of the cable	m	6m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	616 Double Ended Shear Beam Load Cell
Product brand :	LIBIRINTH
Custom-Made:	是
Warranty:	12个月
Rated Load:	2t，5t，10t，20t，40t
Output Type:	模拟量毫伏值电压信号输出：mV/V
Rated Output:	1.5mV/V
Comprehensive Error:	0.5%R.O.
Material:	合金钢
The lengh of the cable:	6m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-12v
