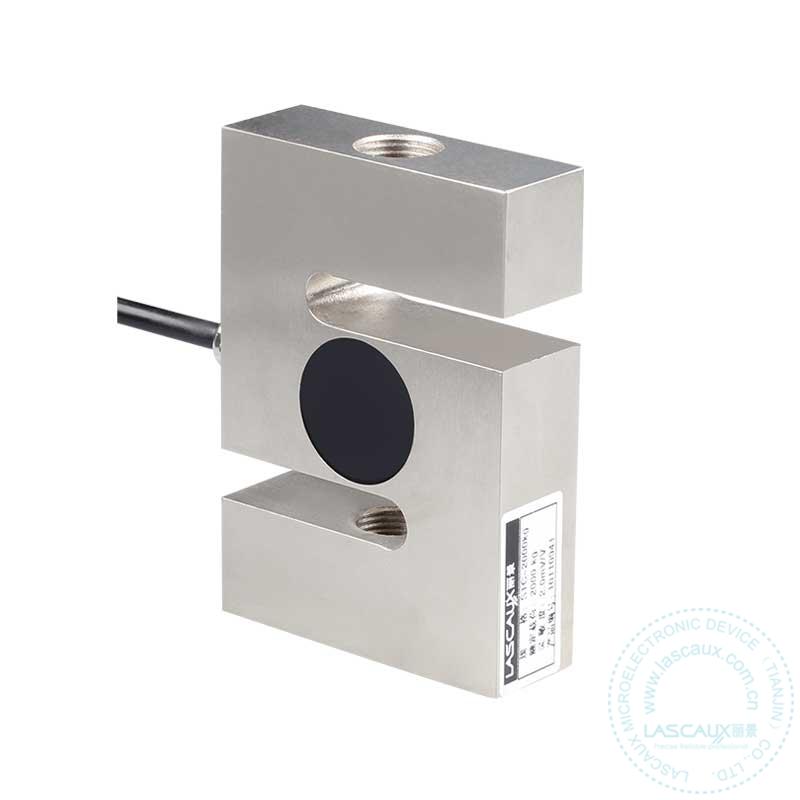

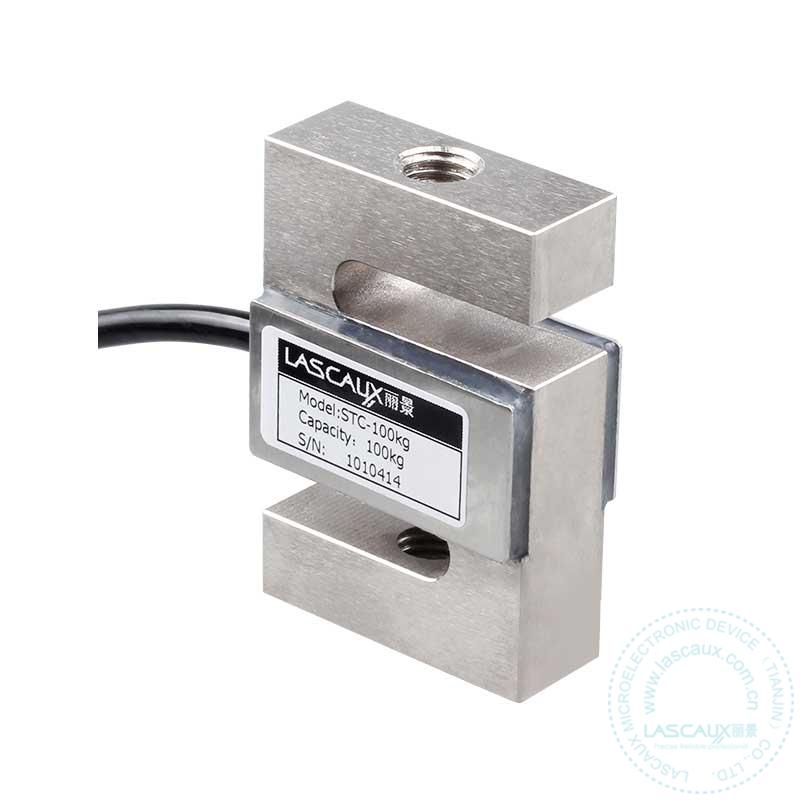

STC S-Type load cell

Description：

Model: STC

Data sheet

STC Data

Features:

1. Capacities (kg): 5 to 10000

2. Compact structure, easy to install

3. Compression and tension load cell

4. High comprehensive precision, high stability

5. High quality alloy steel with nickel plating

6. Alloy steel or Stainless steel material

7. Module installing

Applications:

Be suitable for Crane Scales, Electronic mechanic scales, Hopper and tank weighing, Packing Scales, Quantitative feeding machine, filling machine, Universal material testing machine and other electronic weighing devices.

Specifications:

Rated Load	kg	5,10,20,50,100,200,300,500
Rated Load	t	1, 2, 3, 5, 7.5, 10
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	5kg-1t: 3m 2t-5t：6m 7.5t-10t:10m

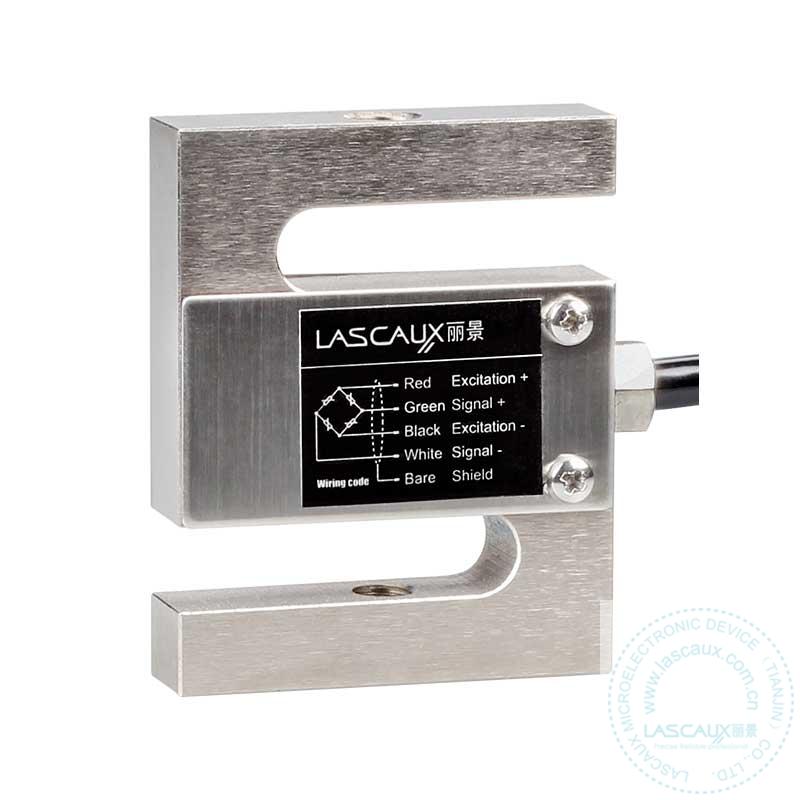

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Dimension（mm）：

Capacity（kg）	Unit	L	H	W	W1	M
5, 10, 20, 50	mm	50.8	63.5	12.7	20	M8×1.25
100, 200, 300, 500	mm	50.8	76.2	19.1	27	M 12×1.75
1000,1500	mm	50.8	76.2	25.4	-	M 12×1.75
2000,3000,5000	mm	76.2	107.9	25.4	-	M 20×1.5
7500，10000	mm	118	142	56	-	M30*2

Specification

Product name :	STC S-Type Load Cell Pull Pressure Sensor
Product brand :	LIBIRINTH
Rated Load:	5kg，10kg，20kg，50kg，100kg，200kg，300kg，500kg，1t，2t，3t，5t，7.5t，10t
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	5kg-1t-3m，2t-5t-6m，7.5t-10t-10m
Recommended Excitation Voltage:	5-12v
