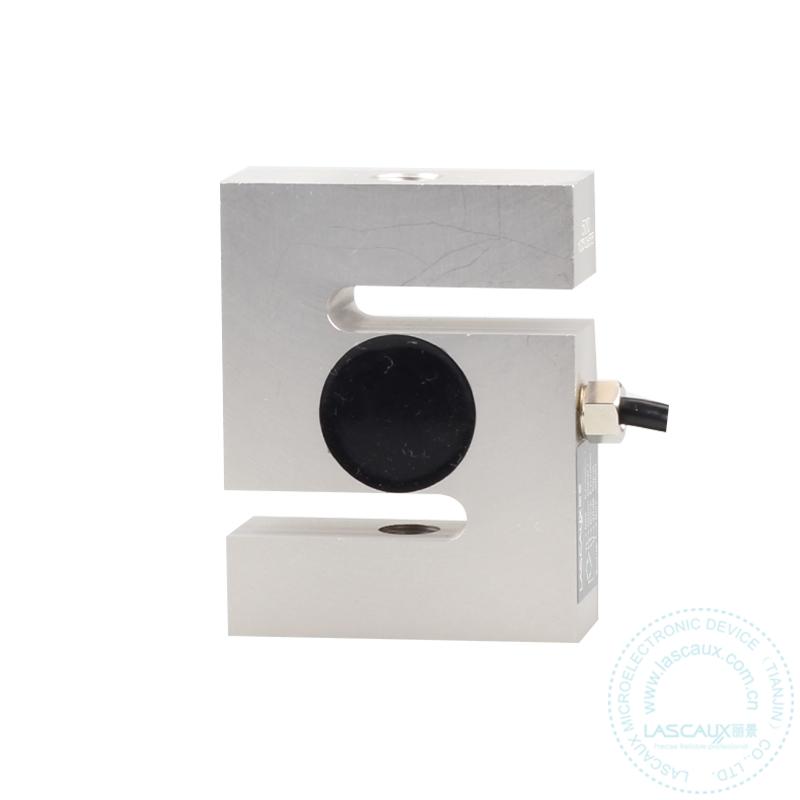

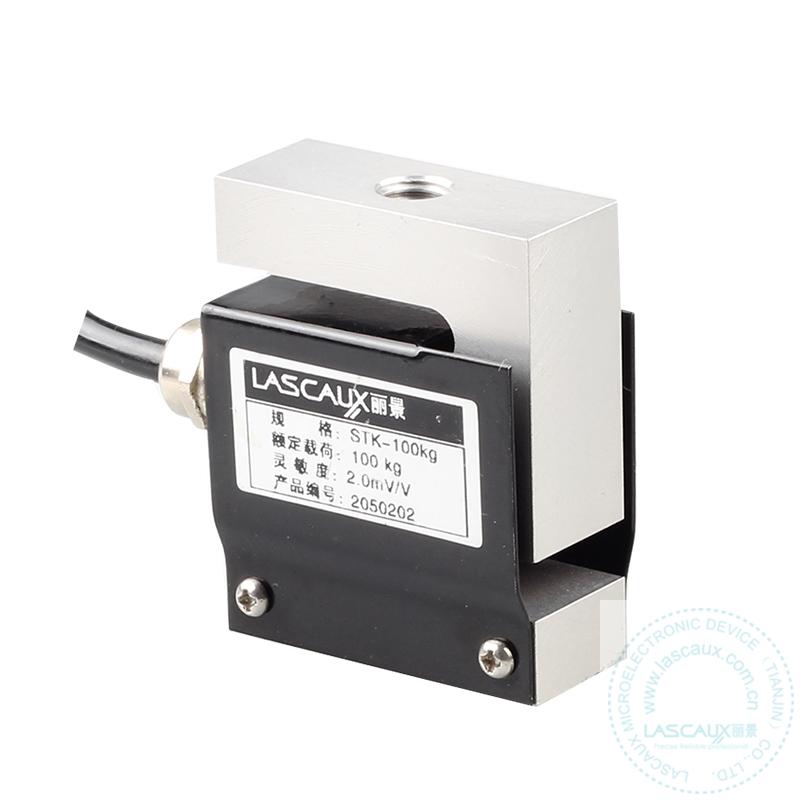

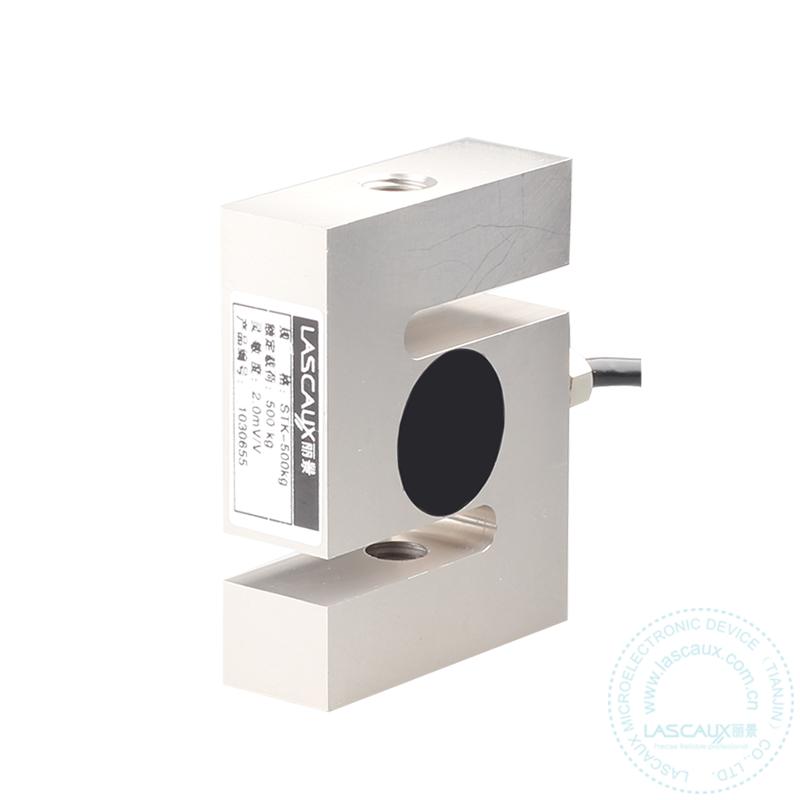

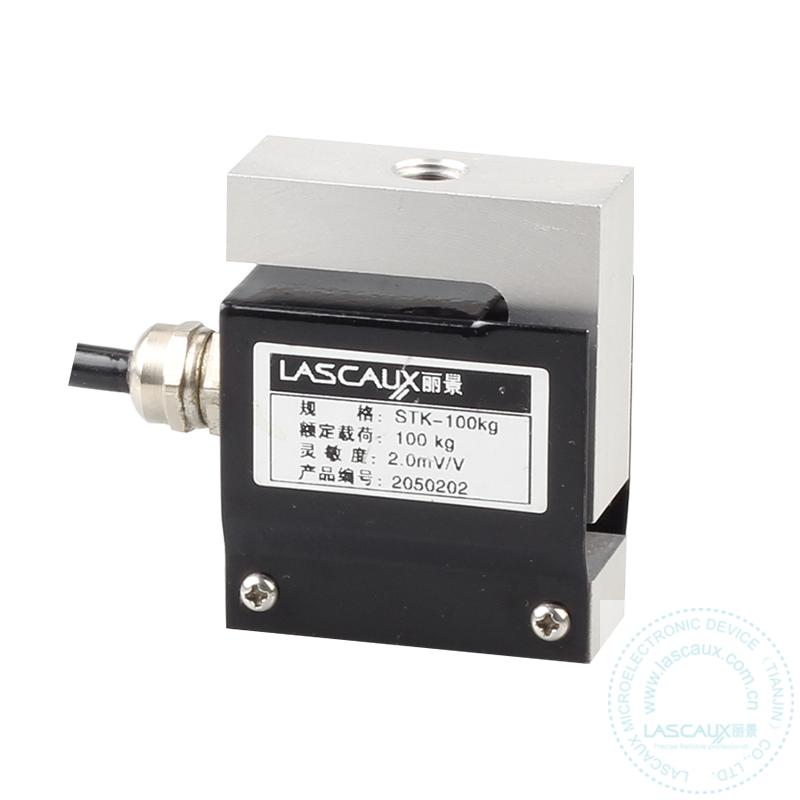

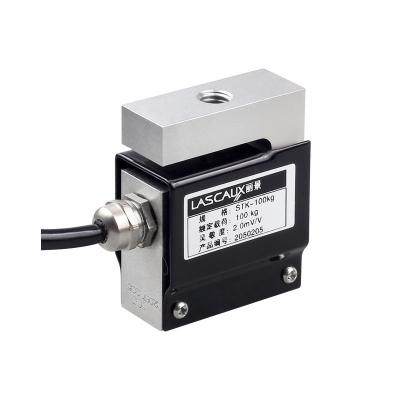

STK S-Type Load Cell Pull Pressure Sensor

Be suitable for Crane Scales, Electronic mechanic scales, Hopper and tank weighing, Packing Scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.

本店价：

👈Consult customer service for a quote 62 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10kg

20kg

50kg

80kg

100kg

200kg

300kg

500kg

STK S-Type load cell

Description：

Model: STK

Data sheet

STK Data

Features:

1. Capacities (kg): 10 to 500

2. Compact structure, easy to install

3. Compression and tension load cell

4. High comprehensive precision, high stability

5. Anodized Aluminum Alloy

Applications:

Be suitable for Crane Scales, Electronic mechanic scales, Hopper and tank weighing, Packing Scales, quantitative feeding machine,

filling machine, universal material testing machine and other electronic weighing devices.

Specifications:

Rated Load	kg	10,20,50,80,100,200,300,500
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.03
Creep/30 minutes	%R.O.	±0.03
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.03
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.03
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	STK S-Type Load Cell Pull Pressure Sensor
Product brand :	LIBIRINTH
Rated Load:	10kg，20kg，50kg，80kg，100kg，200kg，300kg，500kg
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.03%
The lengh of the cable:	3m
Recommended Excitation Voltage:	5-12v
