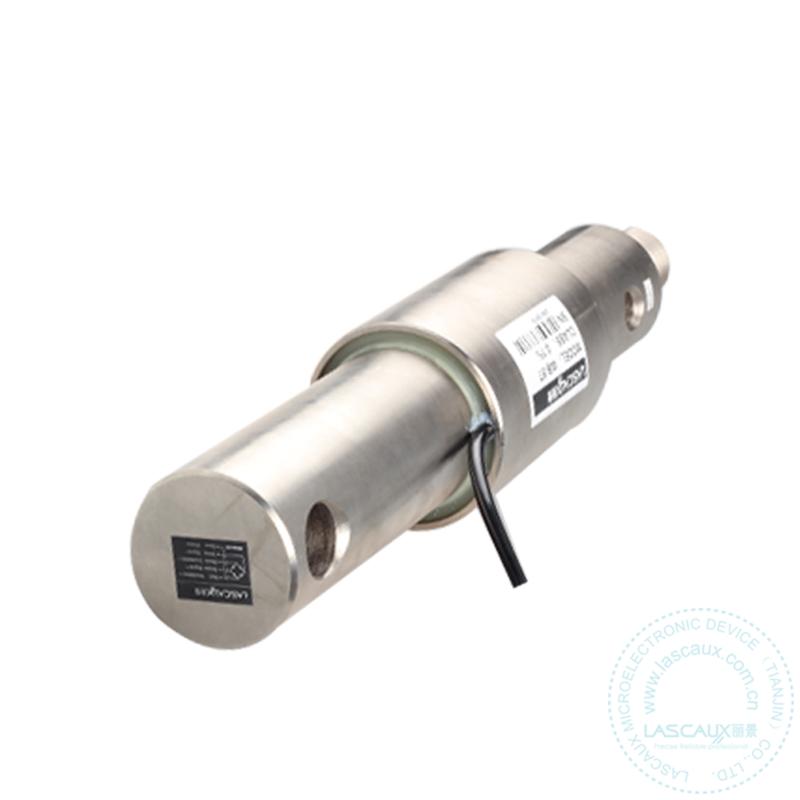

WB Single Ended Shear Beam Load Cell

Be mainly suitable for Total Mixed Ration feed mixer, and weighing control of ingredients in chemical, food and pharmaceuticals industry.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

WB Single Ended Shear Beam Load Cell

Description：

Model: WB

Data sheet

WB data

Features:

1. Capacities (kg): 5t

2. Compact structure, easy to install

3. The rated output is very low, Tractive-type

4. High comprehensive precision, high stability

5. High quality alloy steel with nickel plating

6. Alloy steel or Stainless steel material

7. It is mainly used for Total Mixed Ration feed mixer, tension TMR

Applications:

Be mainly suitable for Total Mixed Ration feed mixer, and weighing control of ingredients in chemical,

food and pharmaceuticals industry.

Specifications:

Rated Load	t	5
Rated Output	mV/V	0.6
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.1
Non-linearity	%R.O.	±0.1
Hysteresis	%R.O.	±0.1
Repeatability	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP67
The length of the cable	m	5m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	WB Single Ended Shear Beam Load Cell
Product brand :	LIBIRINTH
Rated Load:	5t
Rated Output:	0.6mV/V
Comprehensive Error:	0.1%R.O.
The lengh of the cable:	5m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
