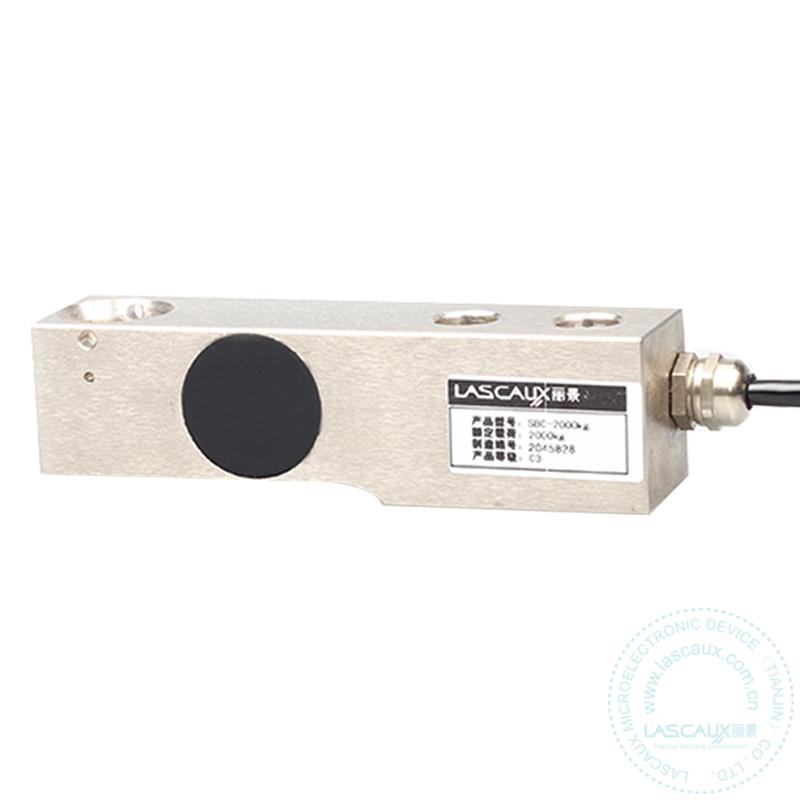

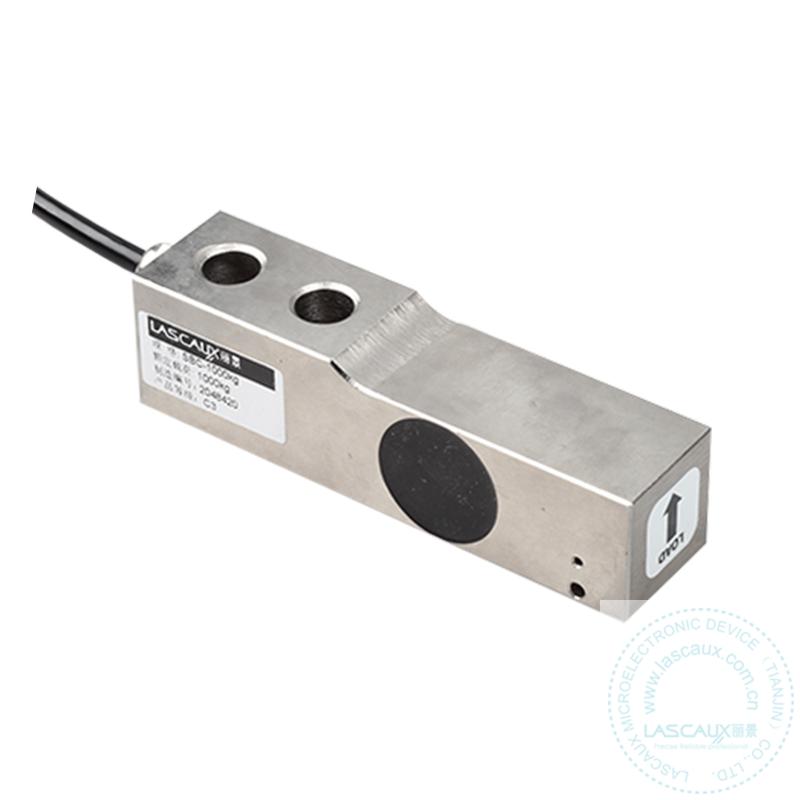

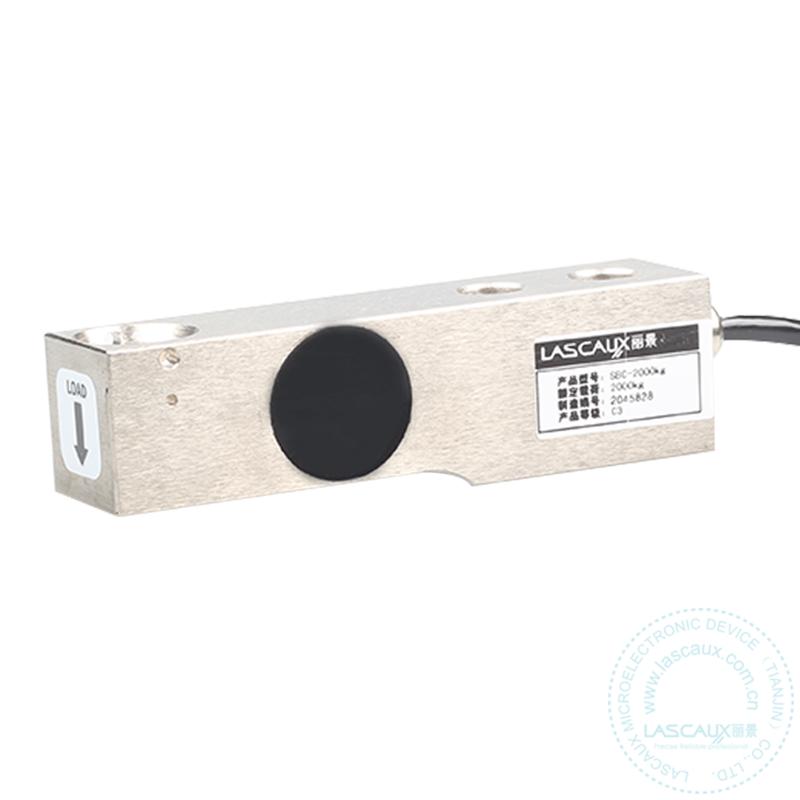

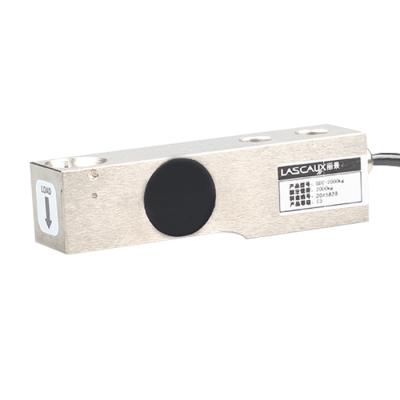

SBC Single Ended Shear Beam Load Cell

Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

500kg

SBC Single Ended Shear Beam Load Cell

Description：

Model: SBC/SBC-SS

Data sheet

SBC data

Features:

1. Capacities (t): 0.5 to 5

2. Compact structure, easy to install

3. High comprehensive precision, high stability

4. High quality alloy steel with nickel plating

5. Alloy steel or Stainless Steel material

6. Degree of protection reaches to IP68

7. Module installing

Applications:

Be suitable for the fields of Hopper and tank weighing, belt scales, and other Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load	t	0.5,1,2,3,5
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel or Stainless Steel
Degree of protection		IP67/IP68
The length of the cable	m	0.5-3t:3m 3t-5t:5m

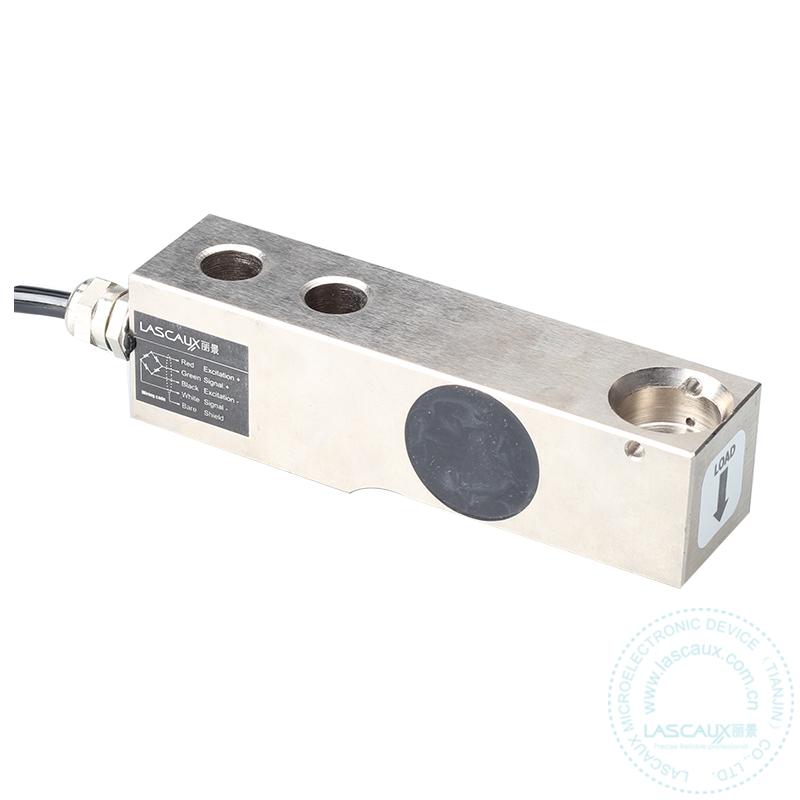

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
Tightening torque	N·m	0.5-2t:98 N·m 3t-5t:275N·m

Specification

Product name :	SBC Single Ended Shear Beam Load Cell
Product brand :	LIBIRINTH
Rated Load:	0.5t，1t，2t，3t，5t，7.5t
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	0.5t-2t：3m，3t-5t：5m
Input Impedance:	380±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
Tightening Torque:	0.5t-2t：98N·m，3t-5t：275N·m
