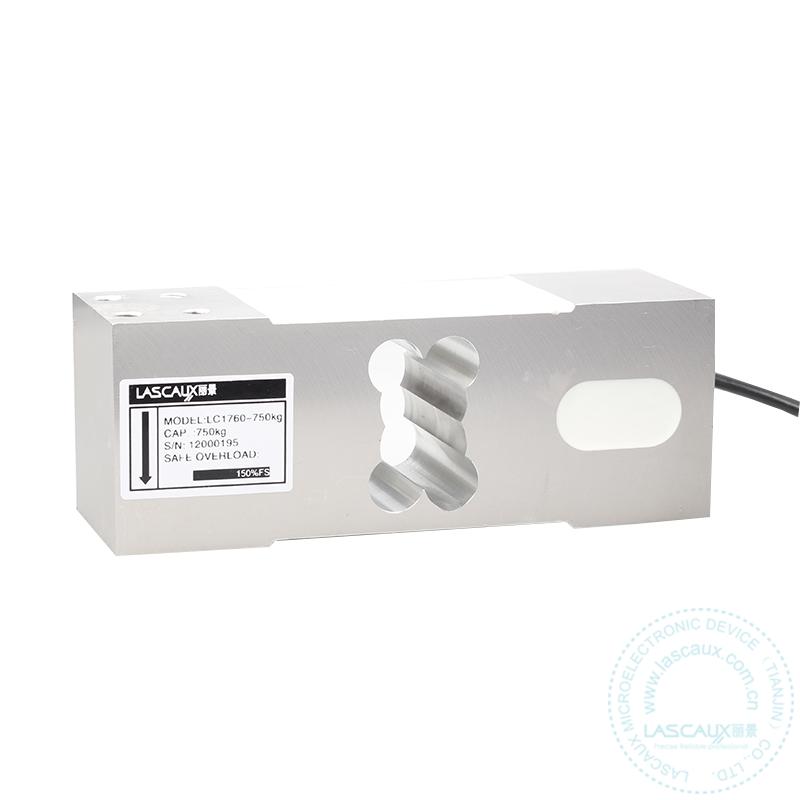

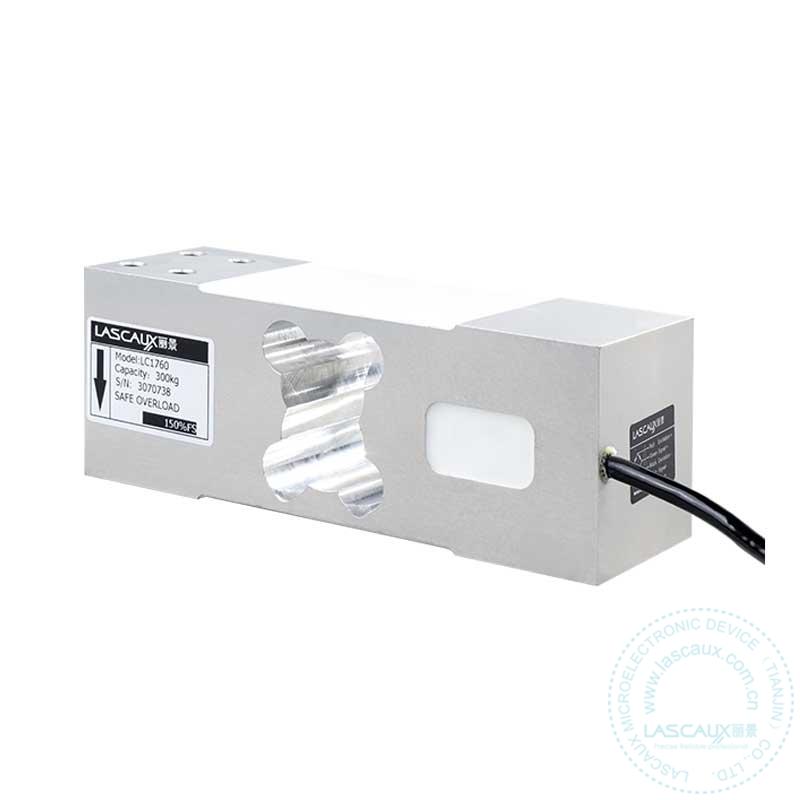

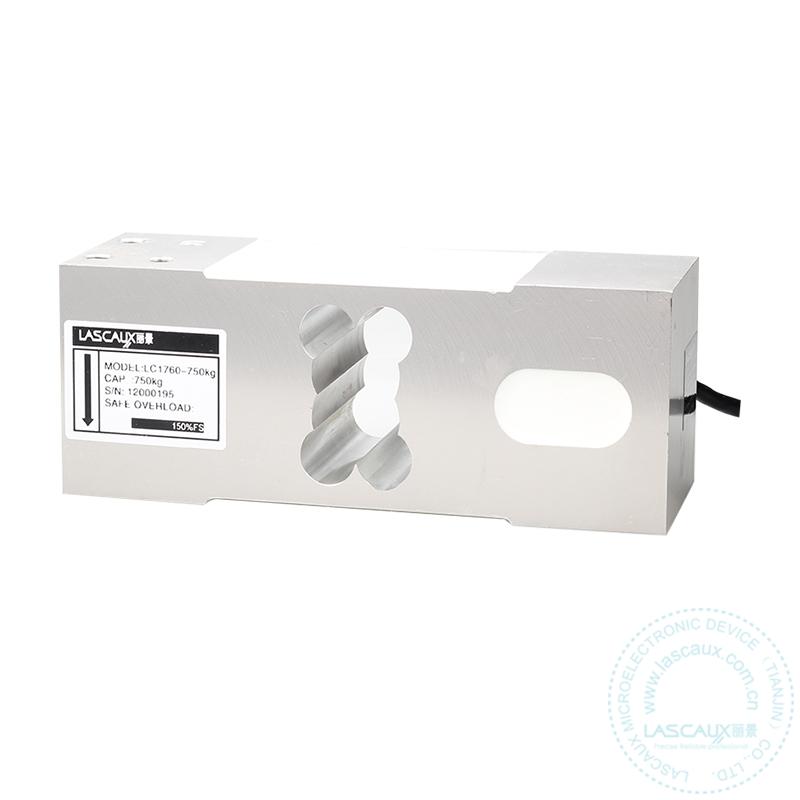

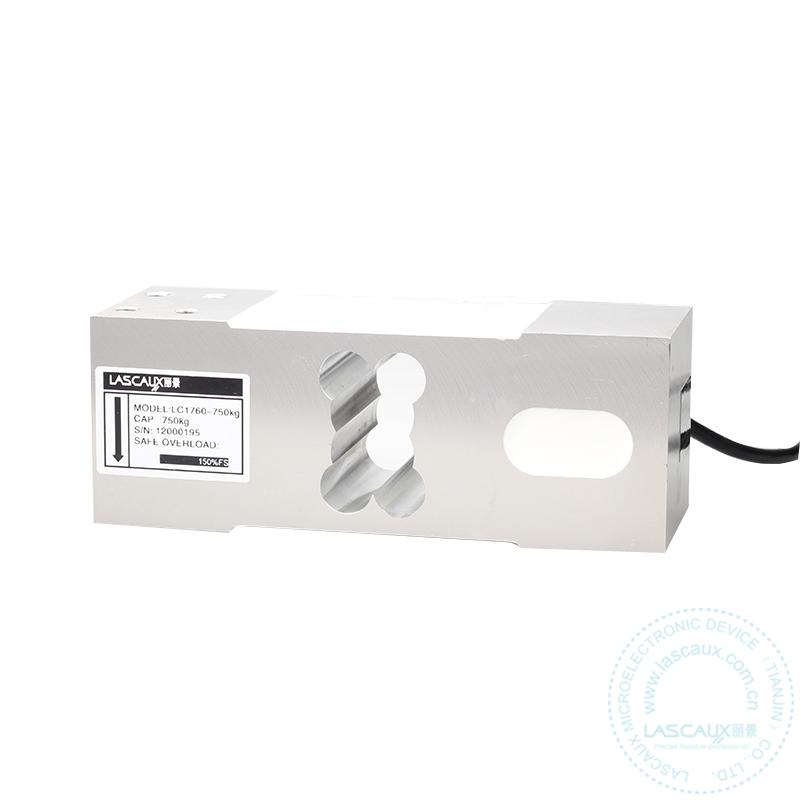

LC1760 Single Point Load Cell

Be suitable for the fields of Low profile platform scales, Chemical, Industries of Foods,Pharmaceuticals, which has huge important on weighing and control.

本店价：

👈Consult customer service for a quote 127 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

50kg

100kg

200kg

300kg

500kg

750kg

LC1760 Single Point Load Cell

Description：

Model: LC1760

Data sheet

LC1760

Features:

1. Capacities (kg):50 to 750

2. High comprehensive precision, high stability

3. Compact structure, easy to install

4. Low profile

5. Anodized Aluminum Alloy

6. The four deviations has been adjusted

7. Recommended Platform size: 600mm*600mm

Applications:

Be suitable for the fields of Low profile platform scales, Chemical, Industries of Foods,

Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load	kg	50,100,200,300,500,750
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
Recommended Platform size	mm	600*600
Tightening Torque	N·m	50kg-200kg:25 N·m 300kg-750kg:30 N·m

Specification

Product name :	LC1760 Single Point Load Cell
Product brand :	LIBIRINTH
Rated Load:	50kg，100kg，200kg，300kg，500kg，750kg
Rated Output:	2.0±0.2mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	3m
Input Impedance:	410±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
Tightening Torque:	50kg-200kg：25N·m，300kg-750kg：30N·m
Maximum Platfrom Size:	600mm*600mm
