LC1776 Single Point Load Cell

Be suitable for the fields of Low profile platform scales(Single load cell), Packaging Scales, Quantitative feeding machine , Filling machine ,Belt scales, Feeding machine and other Industries weighing system

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

750kg

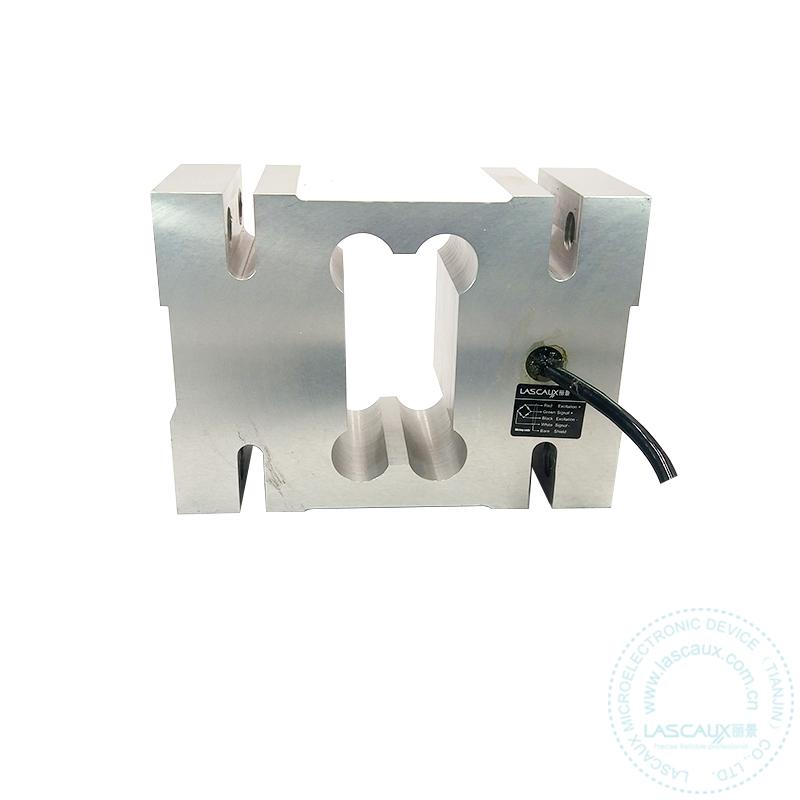

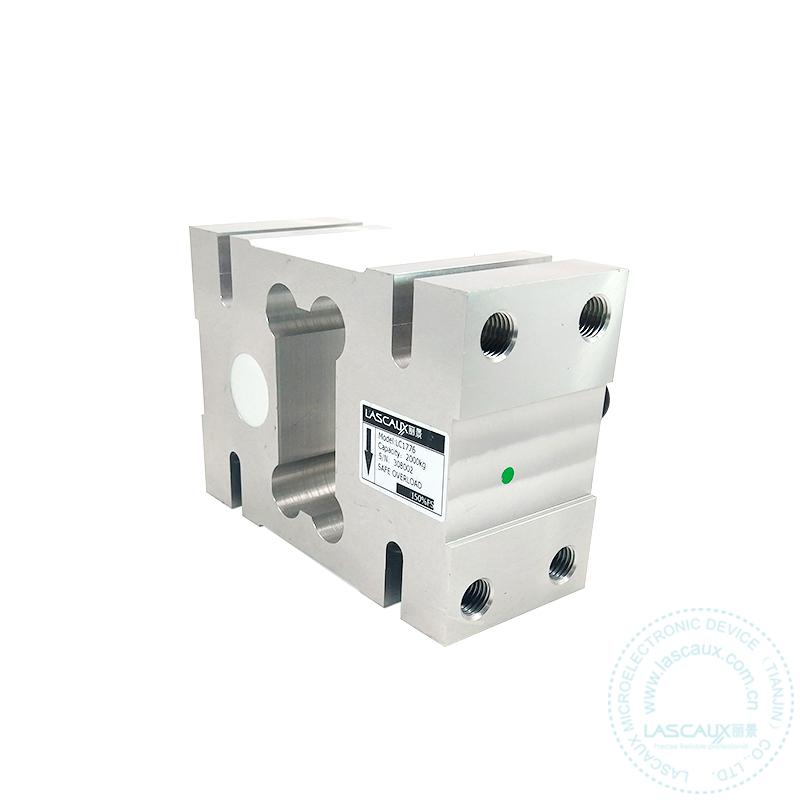

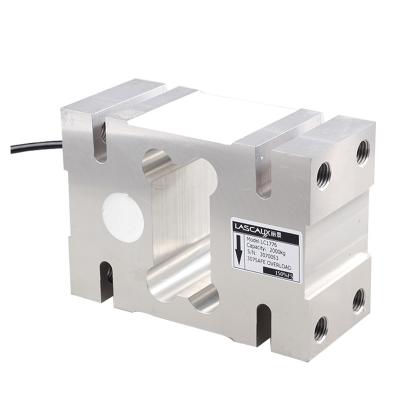

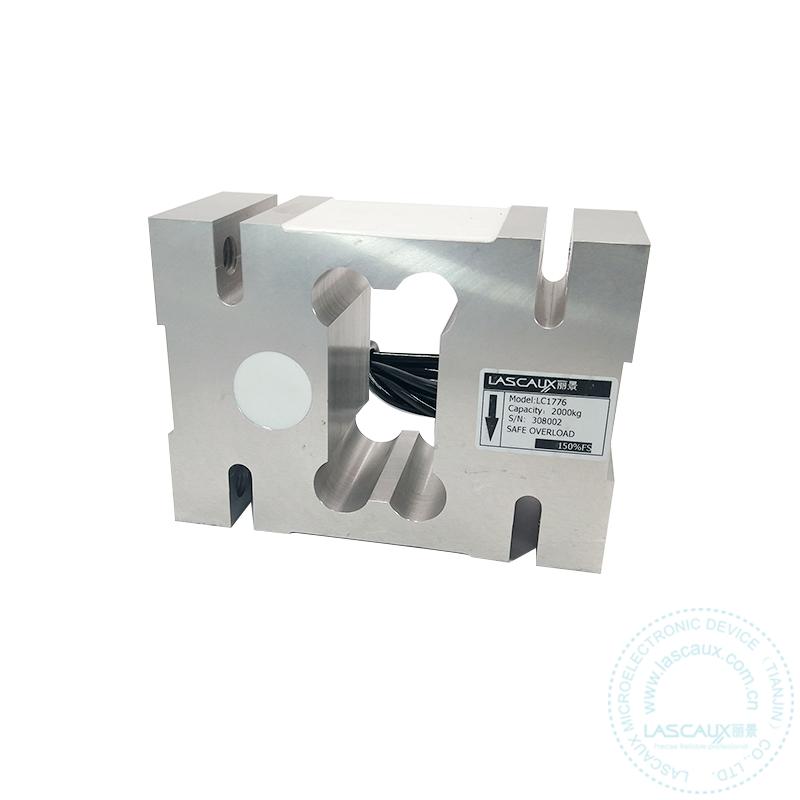

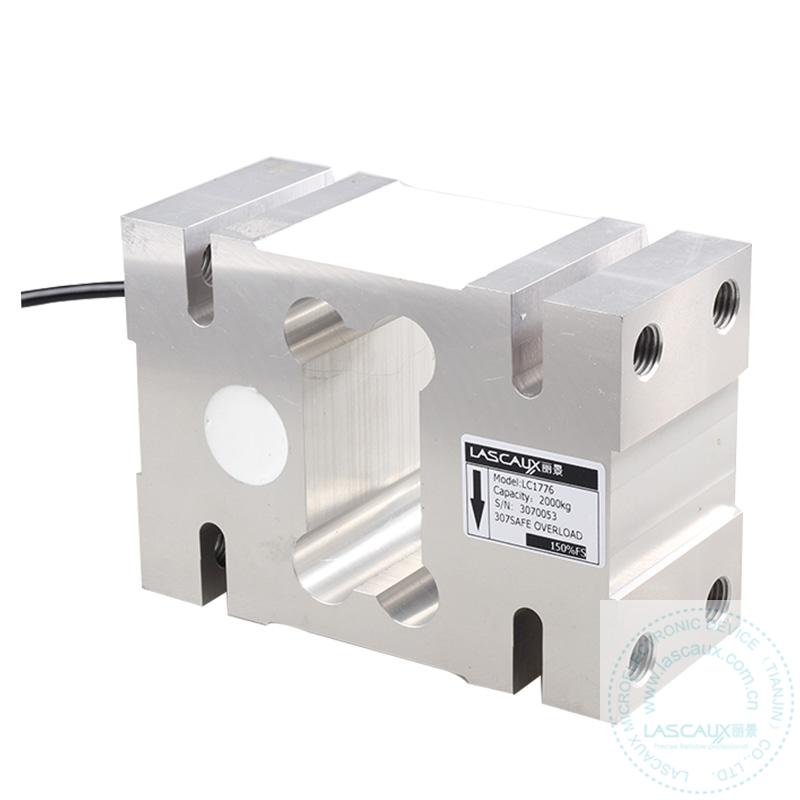

LC1776 Single Point Load Cell

Description：

Model: LC1776

Data sheet

LC1776 data

Features:

1. Capacities (kg):750 to 2000

2. High comprehensive precision, high stability

3. Compact structure, easy to install

4. Low profile

5. Anodized Aluminum Alloy

6. The four deviations has been adjusted

7. Recommended Platform size: 1200mm*1200mm

Applications:

Be suitable for the fields of Low profile platform scales(Single load cell), Packaging Scales, Quantitative feeding machine ,

Filling machine ,Belt scales, Feeding machine and other Industries weighing system

Specifications:

Rated Load	kg	750,1000,2000
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	3m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
Recommended Platform size	mm	1200*1200
Tightening Torque	N·m	165 N·m

Specification

Product name :	LC1776 Single Point Load Cell
Product brand :	LIBIRINTH
Rated Load:	0.75t，1t，2t
Rated Output:	2.0±0.2mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	3m
Recommended Excitation Voltage:	5-10v
Tightening Torque:	165N·m
Maximum Platfrom Size:	1200mm*1200mm
