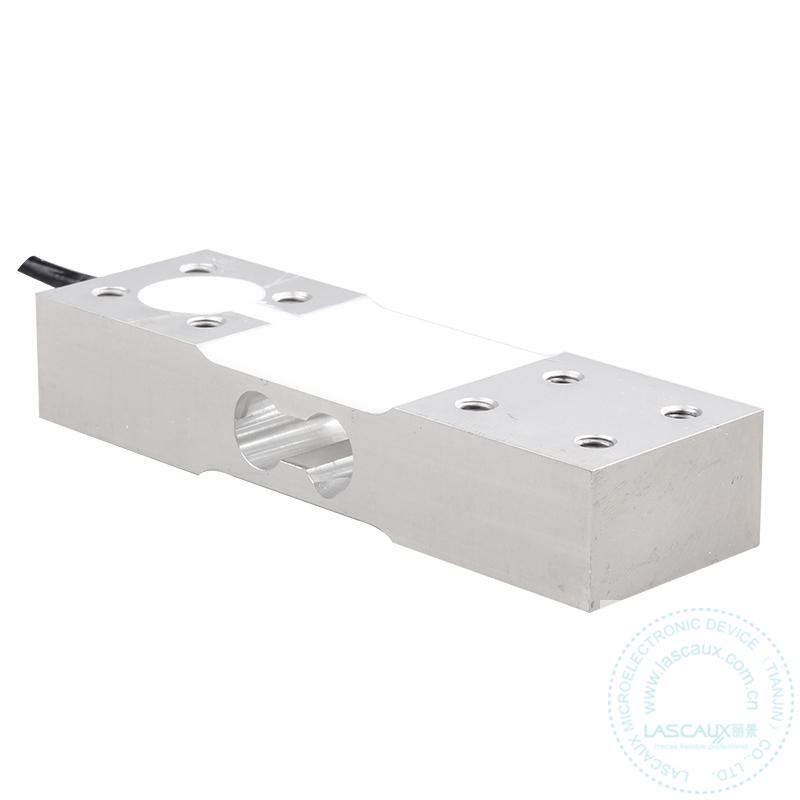

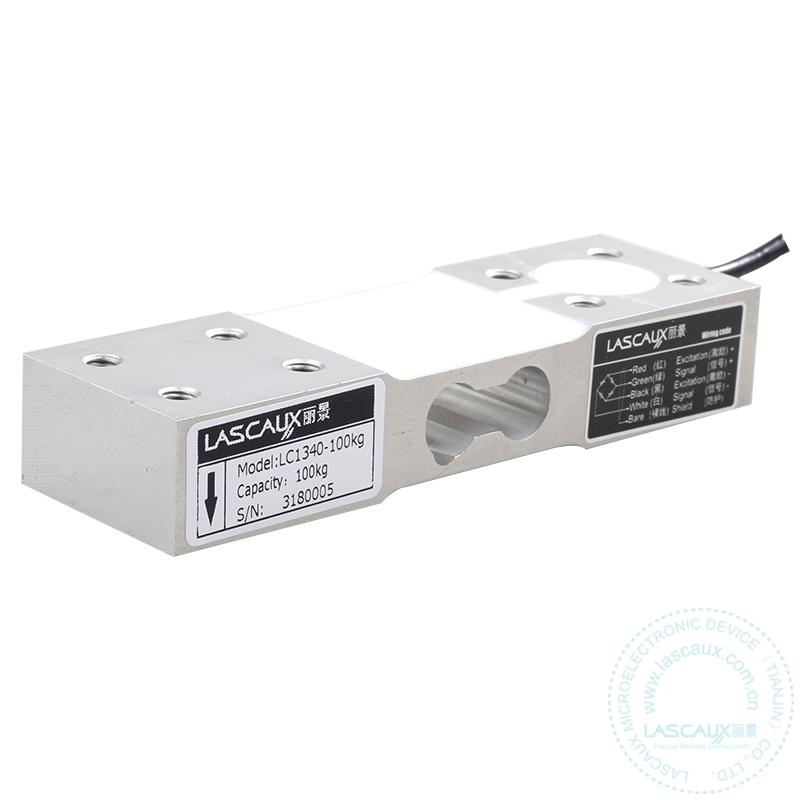

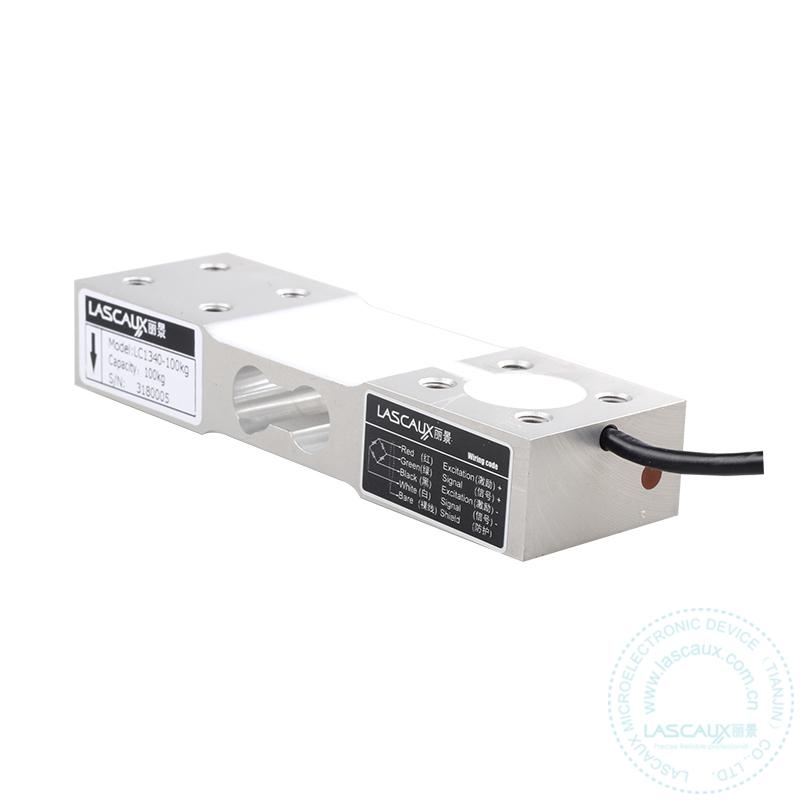

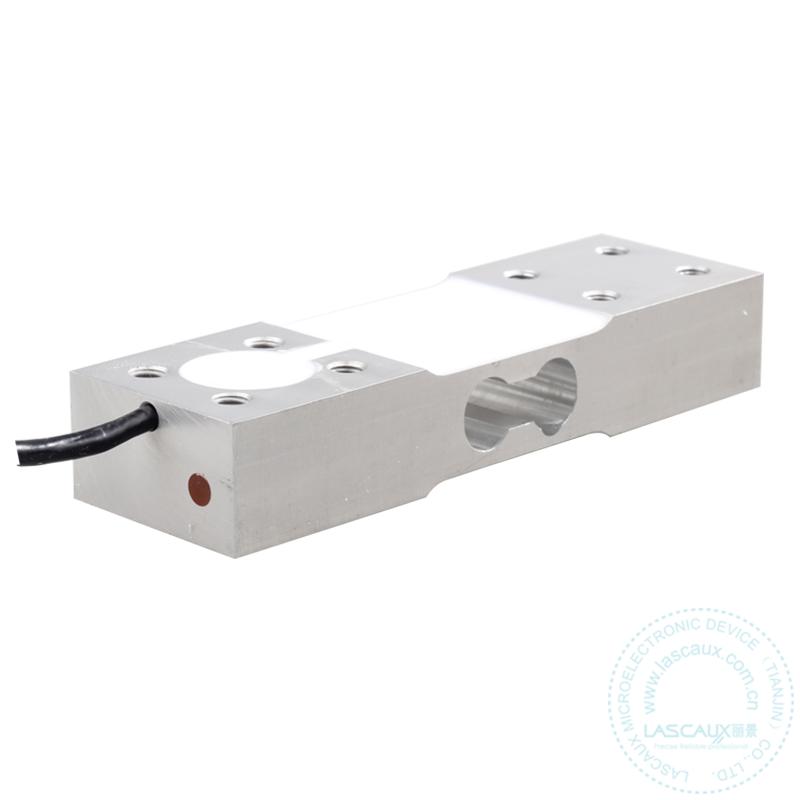

LC1340 Single Point Load Cell

Be suitable for the fields of Price-computing instrument, Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Low profile platform scales, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

本店价：

👈Consult customer service for a quote 7 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

40kg

60kg

100kg

LC1340 Single Point Load Cell

Description：

Model: LC1340

Data sheet

LC1340 data

Features:

1. Capacities (kg): 40 to 100

2. High comprehensive precision, high stability

3. Compact structure, easy to install

4. Small size with low profile

5. Anodized Aluminum Alloy

6. The four deviations has been adjusted

7. Recommended Platform size: 350mm*350mm

Applications:

Be suitable for the fields of Price-computing instrument, Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Low profile platform scales, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications:

Rated Load	kg	40,60,100
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	0.48
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
Recommended Platform size	mm	350*350
Tightening Torque	N·m	10 N·m

Specification

Product name :	LC1340 Single Point Load Cell
Product brand :	LIBIRINTH
Rated Load:	40kg，60kg，100kg
Rated Output:	2.0±0.2mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	48cm
Input Impedance:	410±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
Tightening Torque:	10N·m
Maximum Platfrom Size:	350mm*350mm
