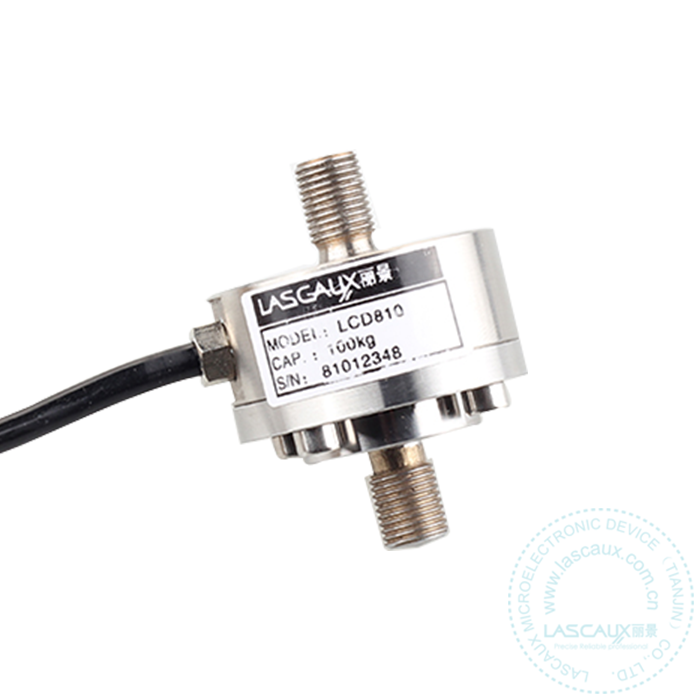

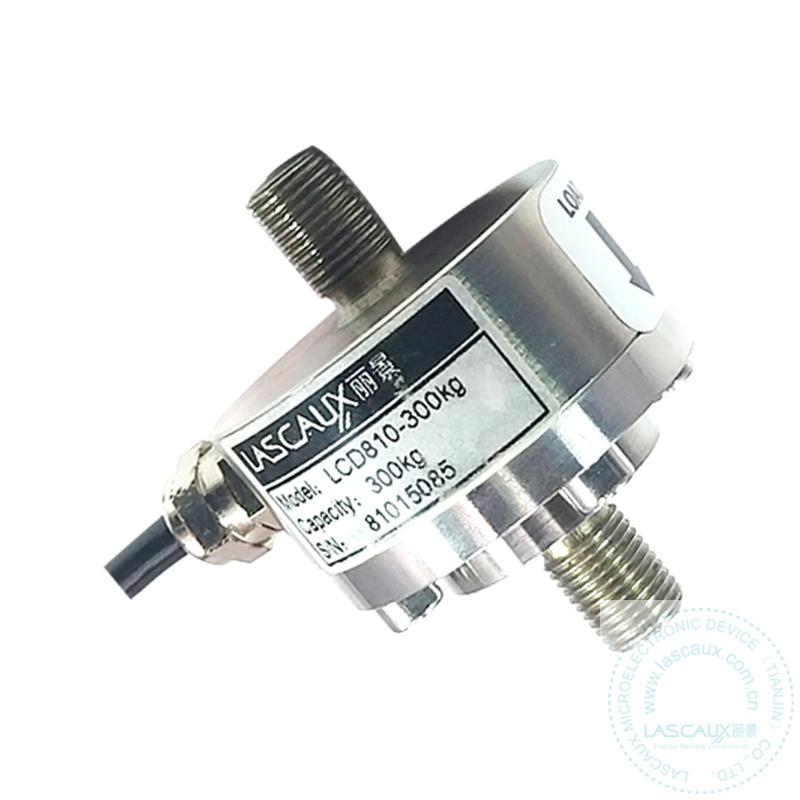

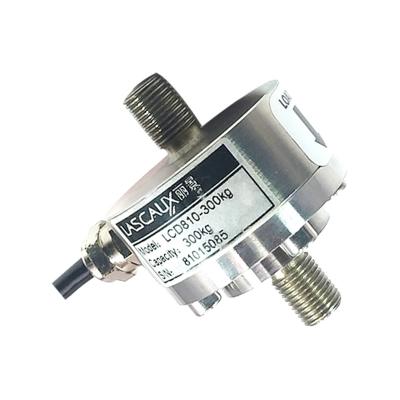

LCD810 Low Profile Disk Load Cell Force Transducer

Be suitable for a wide range of applications including testing or weighing systems.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

100kg

200kg

500kg

LCD810 Low Profile Disk Load Cell

Description：

Model: LCD810

Data sheet

Features:

1. Capacities (kg): 100 to 2000

2. Compact structure, easy to install

3. Compression and tension load cell

4. Low profile

5. Stainless steel material，Seal by welding

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	kg	100,200,500
Rated Load	t	1,2
Rated Output	mV/V	1.8~2.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.2
Non-linearity	%R.O.	±0.2
Hysteresis	%R.O.	±0.2
Repeatability	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.1
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Stainless Steel
Degree of protection		IP66
The length of the cable	m	3m

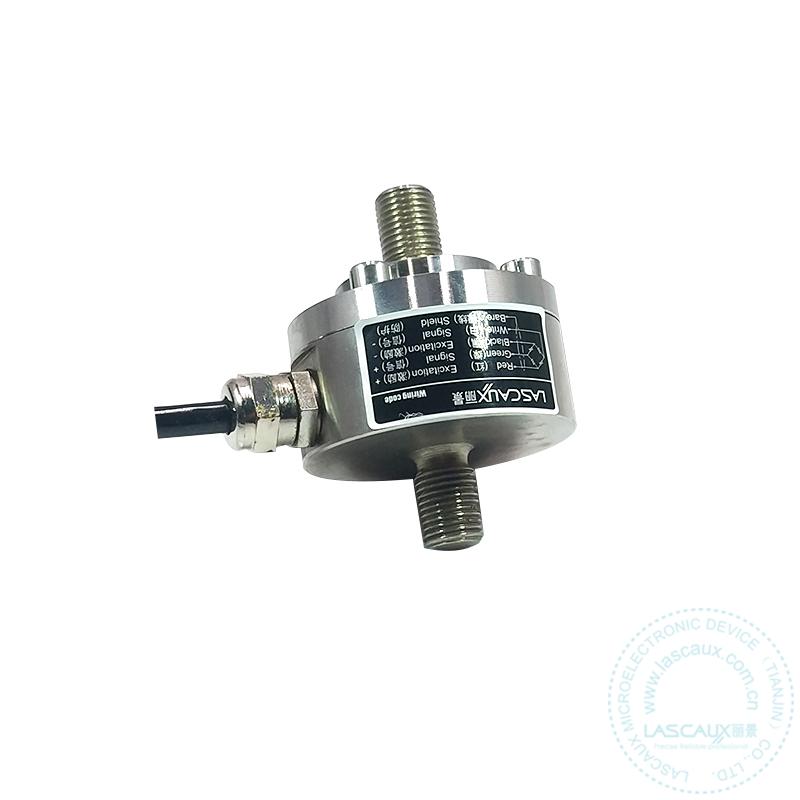

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCD810 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Warranty:	12 months
Rated Load:	100kg，200kg，500kg，1000kg，2000kg
Rated Output:	1.8-2.0mV/V
Comprehensive Error:	0.2%R.O.
Material:	Stainless Steel
The lengh of the cable:	3m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-12v
