LCD805 Low Profile Disk Load Cell Force Transducer

Be suitable for the fields of Level control for liquid and bulk materials.

本店价：

👈Consult customer service for a quote 1 have been sold|0 evaluation

Capacity

10t

16t

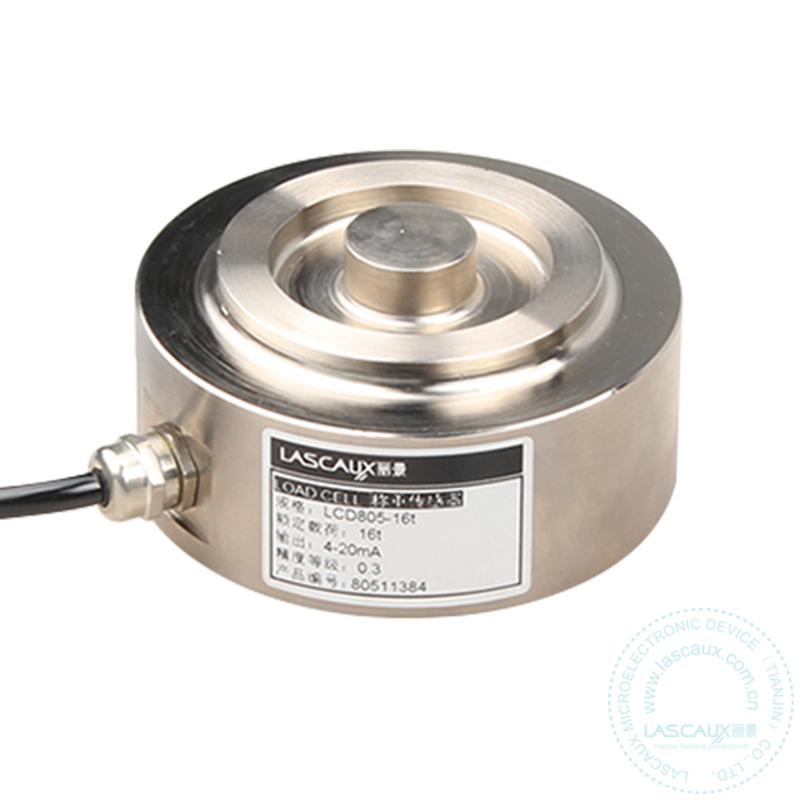

LCD805 Low Profile Disk Load Cell

Description:

Model: LCD805

Data sheet

Features:

1. Capacities (t): 1 to 16

2. Compact structure, easy to install

3. Compression load cell

4. Low profile, spherical designing

5. High quality alloy steel with nickel plating

6. Degree of protection can reach to IP68

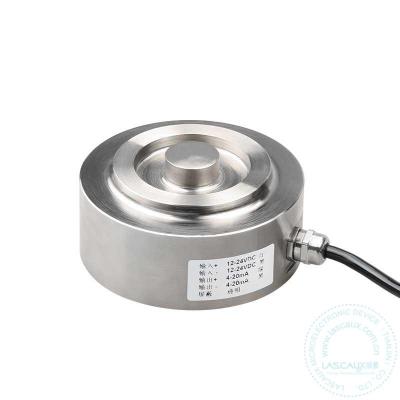

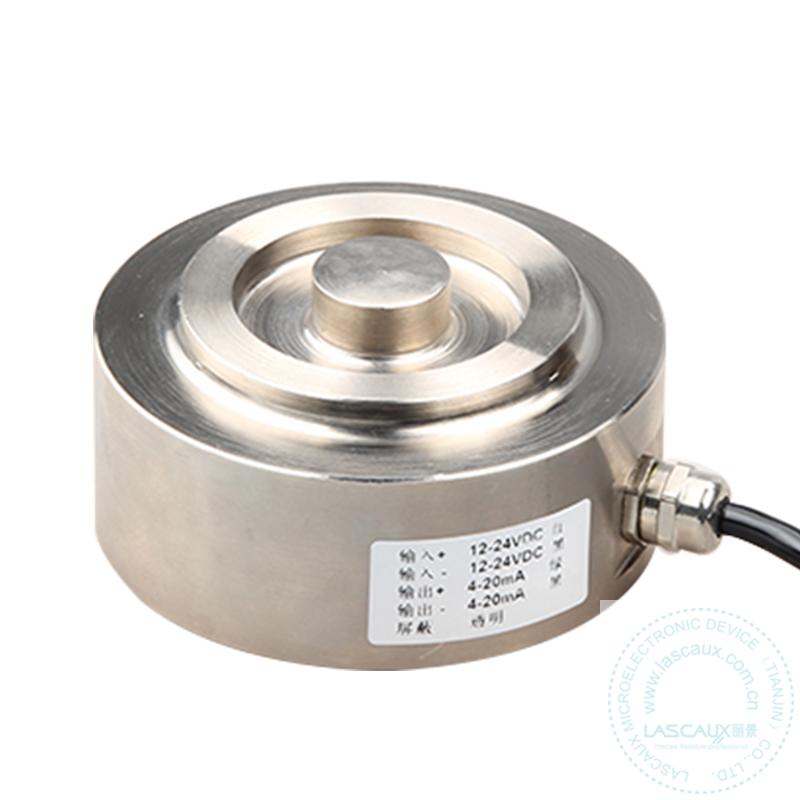

7. Analog output 4-20mA is optional

8. The height is very low, the height is less than 48mm

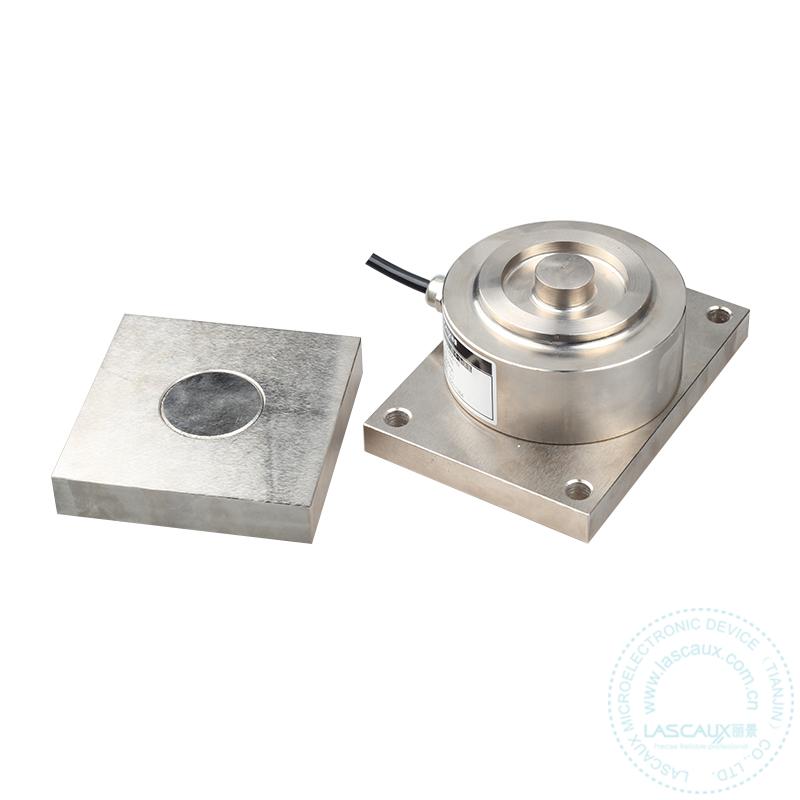

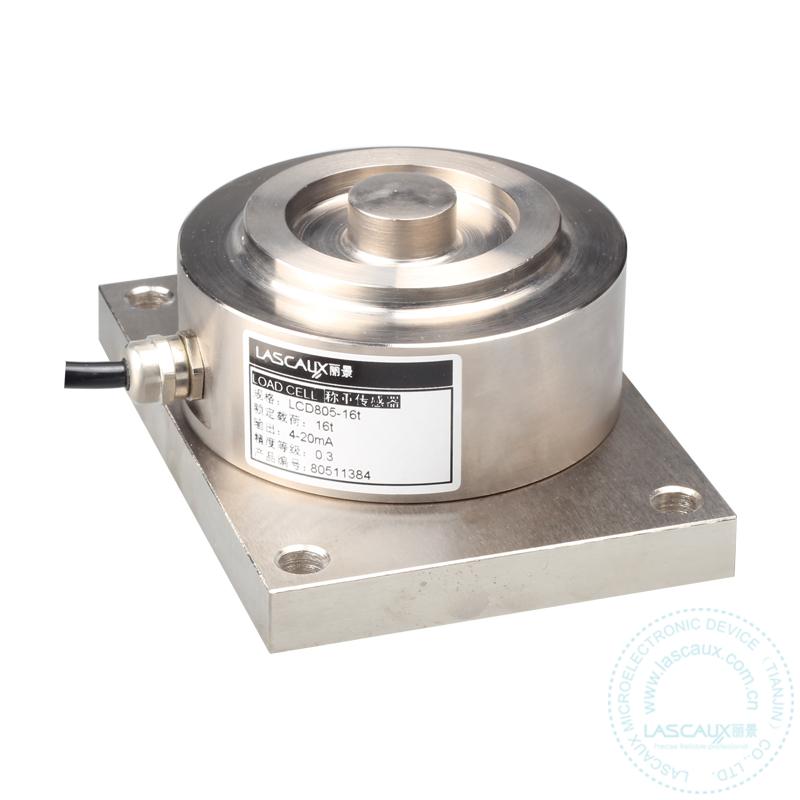

9. Be matched with top plate and bottom plate

Applications:

Be suitable for the fields of Level control for liquid and bulk materials.

Specification:

Rated load	t	1,2,3,5,10,16
Rated Output	mv/V	2.0±0.0025
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Non-linearity	%R.O.	±0.05
Hysteresis	%R.O.	±0.2
Repeatability	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.01
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.01
Recommended Excitation Voltage	VDC	5-12
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel or Stainless Steel
Degree of protection		IP67/IP68
The length of the cable	m	6m
Wiring code	Ex:	Red:＋ Black：–
Wiring code	Sig:	Green:＋ White：–

Product name :	LCD805 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Rated Load:	1t，2t，3t，5t，10t，16t
Rated Output:	4-20mA/2.0±0.0025mV/V
Comprehensive Error:	0.3%R.O.
The lengh of the cable:	6m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-12v
