LCD801 Low Profile Disk Load Cell Force Transducer

Be suitable for the fields of Level control for liquid and bulk materials.

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

100kg

300kg

600kg

1.2t

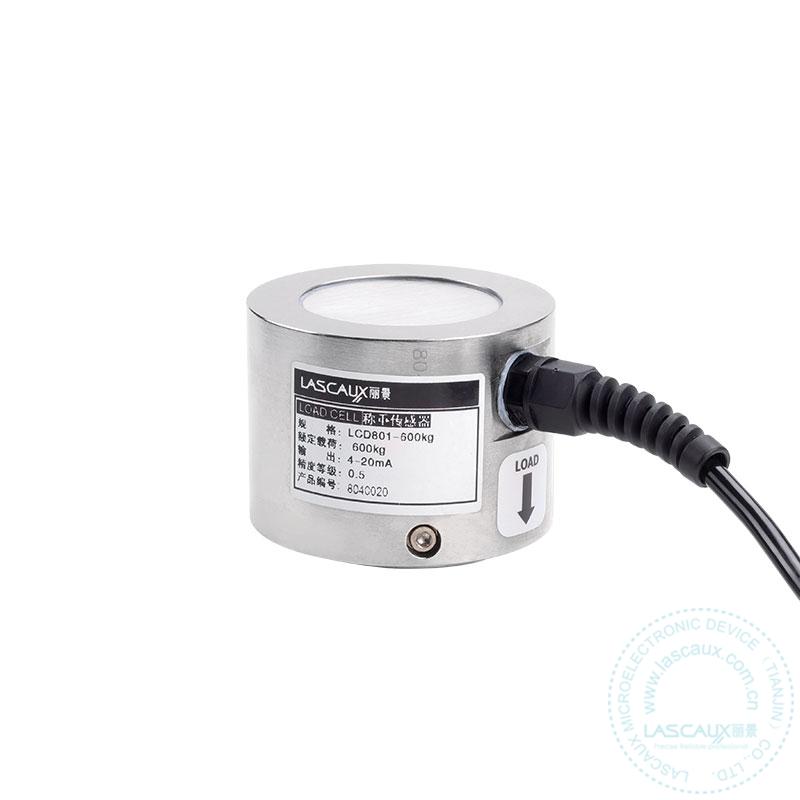

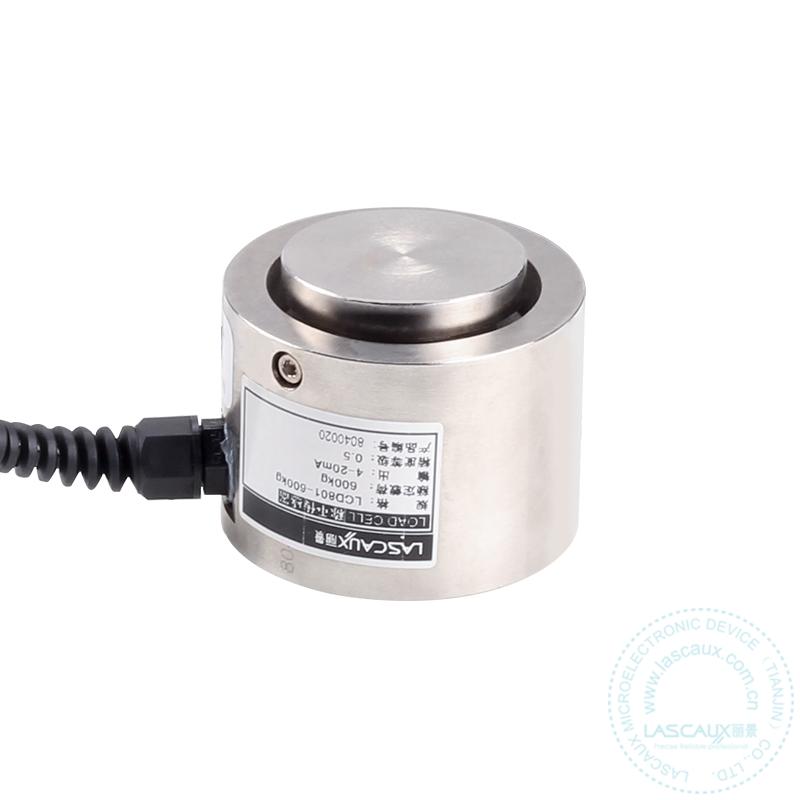

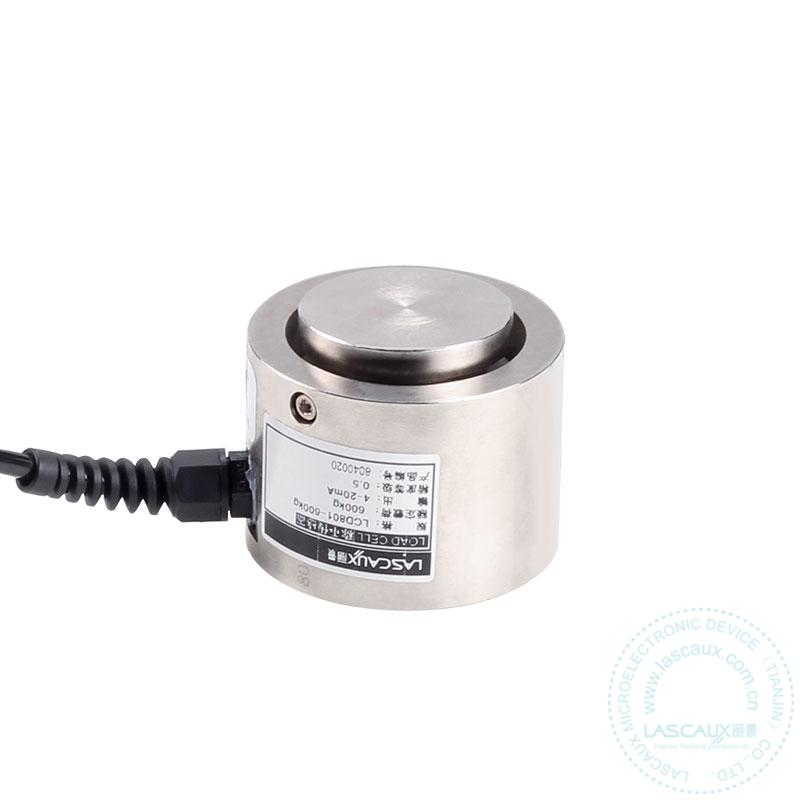

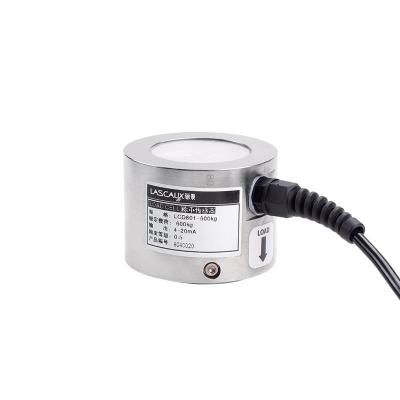

LCD801 Low Profile Disk Load Cell

Description：

Model: LCD801

Data sheet

Features:

1. Capacities (kg): 100 to 5000

2. Compact structure, easy to install

3. Compression load cell

4. Low profile, spherical designing

5. High quality alloy steel with nickel plating

6. Degree of protection can reach to IP68

7. Analog output 4-20mA is optional

Applications:

Be suitable for the fields of Level control for liquid and bulk materials.

Specification:

Rated load	kg	100,300,600,1200,2000,5000
Rated Output	mA	4-20mA
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.3
Non-linearity	%R.O.	±0.2
Hysteresis	%R.O.	±0.2
Repeatability	%R.O.	±0.05
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	24
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel or Stainless Steel
Degree of protection		IP67/IP68
The length of the cable	m	6m

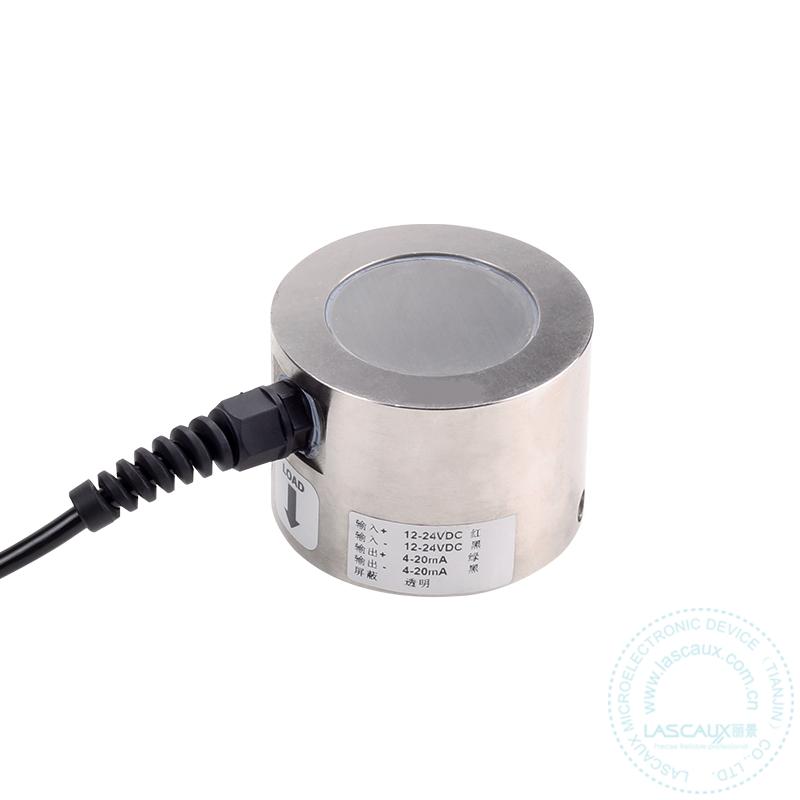

Wiring code	Input 12-24VDC	Red：＋ Black：–
Wiring code	Output 4-20mA	Green：＋ Black：–

Product name :	LCD801 Low Profile Disk Load Cell Force Transducer
Product brand :	LIBIRINTH
Rated Load:	100kg，300kg，600kg，1.2t，2t，5t
Rated Output:	4-20mA/2.0±0.0050mV/V
Comprehensive Error:	0.3%R.O.
The lengh of the cable:	6m
Recommended Excitation Voltage:	5-12v
