PSD
Datasheet:
Features:
Applications
DescriptionA low profile design that makes PSD the most suitable application concerning critical height for safety reasons. The shear web design provides excellent performance even when side forces are inevitable in normal operations. The typical example for side force resistance is the application in motor truck scales. PSD is constructed of alloy steel and is fully potted with special chemical compounds to IP67 to protect the cell from water and moisture attack.
|
| Product name : | CELTRON PSD-SJTT Precision Shear Web Disk Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 200kg,500kg,1t,1.5t,2.5t,5t,10t,20t,25t,30t,50t,100t |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 2.0±0.25mV/V或3.0±0.25mV/V |
| 非线性: | 0.05%R.O.（0.2t~30t）,0.1%R.O.(50~100t) |
| 零点回复（20分钟): | 0.03%R.O. |
| Hysteresis: | 0.05%R.O.（0.2t~30t）,0.1%R.O.(50~100t) |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5（0.2t~30t）,770±10(50t~100t) |
| Output impedance: | 350±3（0.2t~30t）,770±0(50t~100t) |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢镀镍/铝合金 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 15m |

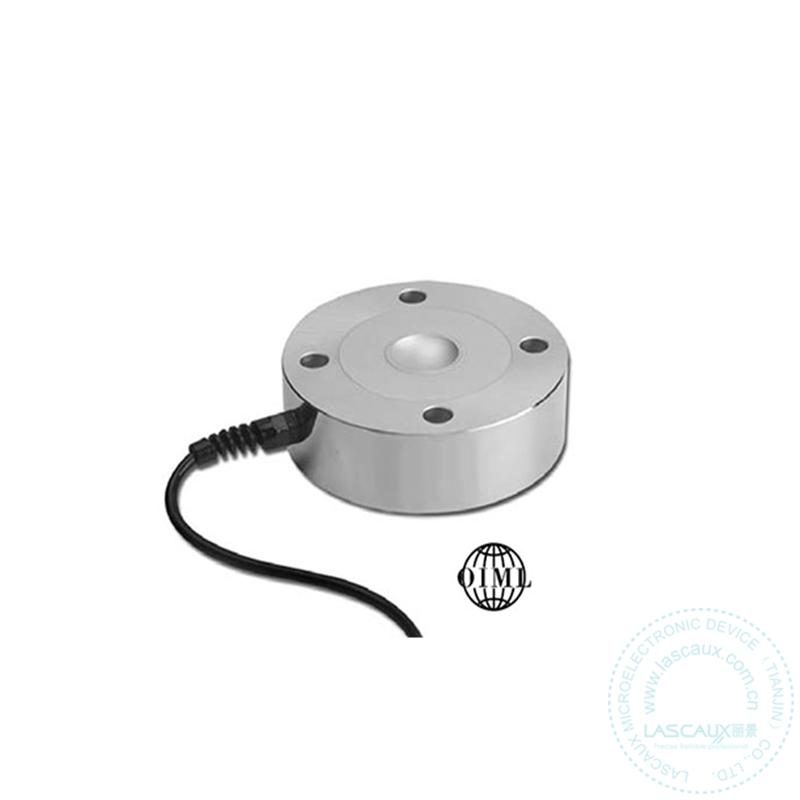

CELTRON PSD-SJTT Precision Shear Web Disk Load Cell
