◆High precision A/D conversion with readability 1/30000
◆Call and display inner code to replace weight observing and analysis tolerance
◆Special digital filtering technology to strengthen anti-vibration ability
◆Able to set up zero-tracking range, zero(auto/manual) range
◆Able to set up digital filter intensity、range and stable time
◆With counting function (unit weight data save protection in case of power off)
◆Selectable backlight mode
◆AC/DC power supply, with built-in rechargeable 6V/4AH battery
◆Alarm for low battery and auto power off at low battery
◆Optional of RS232 interface with selectable baud rate and communication method
◆Optional of scoreboard interface sending by 20mA current loop
Nonstandard Function( Optional, please inform sales staff if need):
◆KG/LB switch function
◆Auto calculating average function ( For livestock scale)
◆A/D conversion method: ∑-Δ
◆A/D conversion speed: 10 times/sec.
◆Max. A/D conversion bits: 20
◆Input signal range: -10mV~15mV
◆Input sensitivity: ≥1 μV/e
◆Load cell excitation: DC 5V; I≤150mA
◆Max. connection number of load cell: 4 at 350 ohm
◆Load cell connection mode: 6 wire
◆Verified counts: 3000
◆Max. external counts: 30000
◆Max. internal resolution: 300000
◆Division: 1/2/5/10/20/50 optional

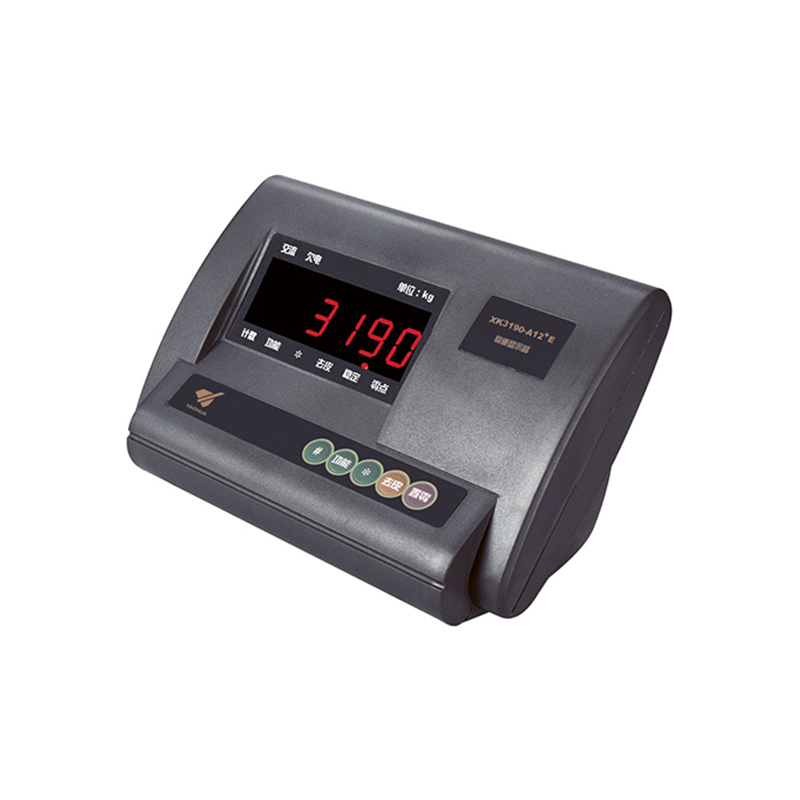

◆Display(XK3190-A12): 6 bits LCD, 6 status indications
◆Display(XK3190-A12E): 6 bits LED, 6 status indications
◆Display range: -2000~150000(d=10)
◆Optional: Scoreboard interface serial sending signal by current loop with baud rate 600
◆Transmission distance: Current loop≤2000 meters
◆Interface type: RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method
◆Baud rate seletable:1200/2400/4800/9600
◆Transmission distance: RS232C≤30 meters
◆Power supply: AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery
