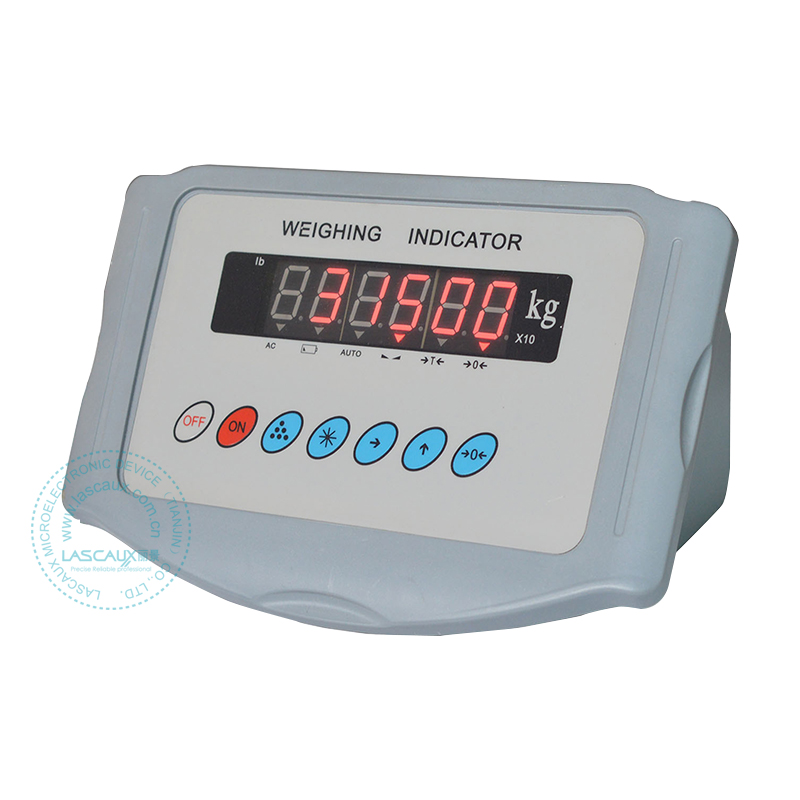

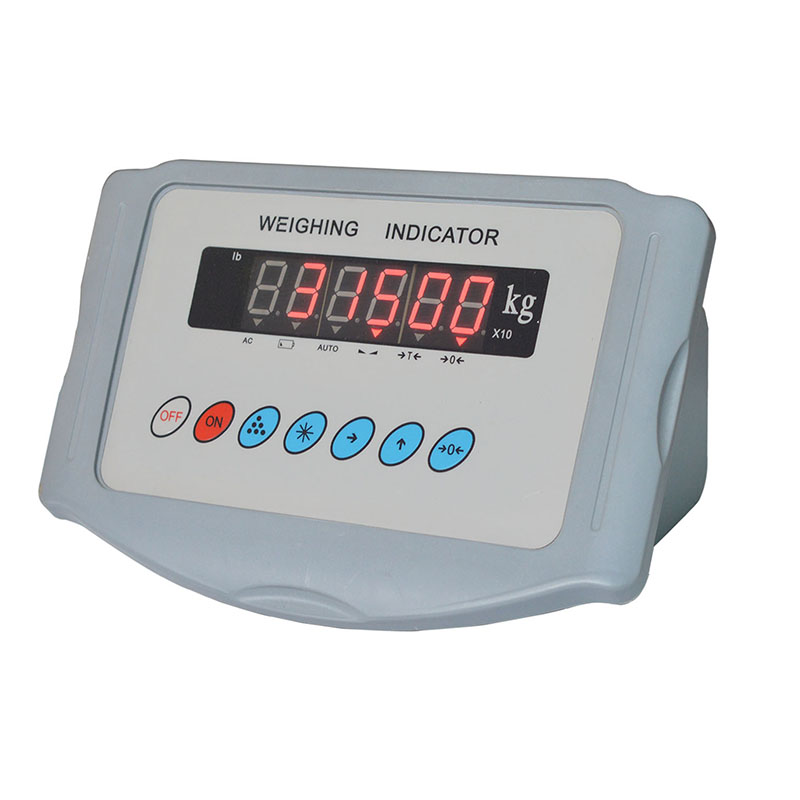

XK315A1 Series Weighing Indicator

本店价:

👈Consult customer service for a quote 0 have been sold|0 evaluation

XK315A1X

Plastic housing
6-digit 20.2mm red LED
Dimensions:256×165×170mm
Applications:Electronic platform scale, weighing scale, etc.

Features

1.Operating temperature: 0℃ to 40℃

2.Storage temperature: -25℃ to 55℃

3.Relative humidity:≤ 85% non–condensing

4.30 hours of full charge battery operation

5.Drive up 4X350Ω or 8X700Ω load cell

6.Manual/Automatic accumulation

7.Programmable zero tracking

8.Programmable digital filter

9.Selectable kg and lb

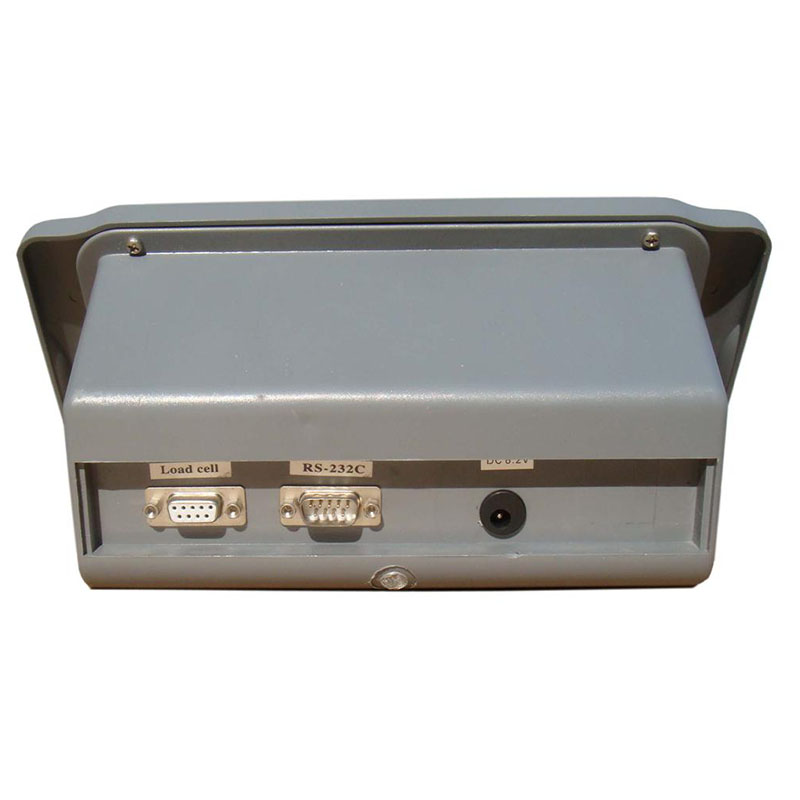

10.RS-232 serial interface

11.Accuracy can be increased ten times

12.Animal weighing

13.Hold function

14.Counting function

15.Printer



Optional

RS485 serial interface

Two set point function

Four set point function

4-20mA Analog current output function
Mechanical scale
Wireless connection

Blue tooth connection




Specification

Product name : XK315A1 Series Weighing Indicator
Product brand : LIBIRINTH
Warranty: 12个月
Power supplies: 交流AC 100V~240V
communication interface: RS232串行连续输出,可增配RS-485远距离通讯接口
Display screen: 0.8英寸红色LED显示
Housing material: 塑料
Numbers of load cell connection: 可接1-4只350Ω或1-8只700Ω传感器
A/D transfer principle: 三积分式
A/D conversion speed: 40次/秒
Operating temperatures: 0℃—40℃
Storage temp: -25℃~+55℃
Relative humidity: ≦85﹪RH
