LCF500 Pancake Load Cell Pull Pressure Sensor

Be suitable for the fields of Truck scales, Rail scales, Ground scales, Platform scales, Hopper and tank weighing, Testing machines, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

本店价：

👈Consult customer service for a quote 12 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

250kg

500kg

2.5t

10t

25t

50t

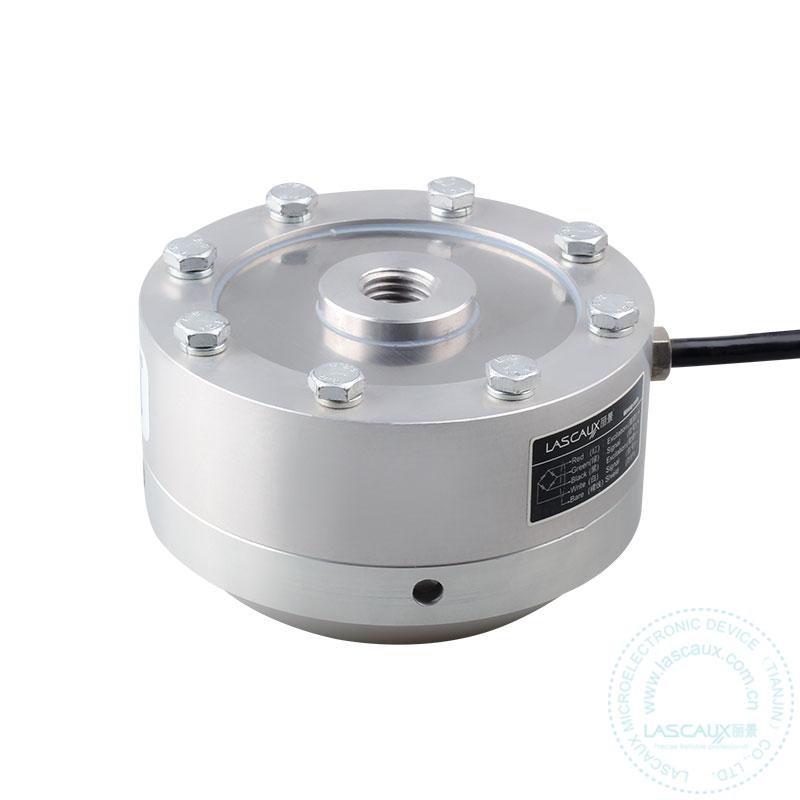

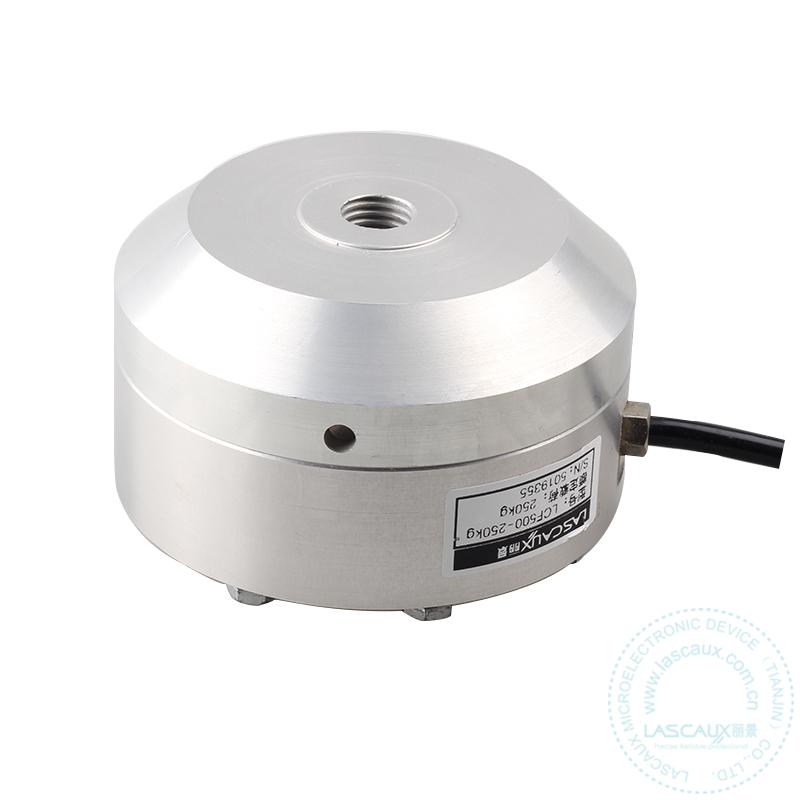

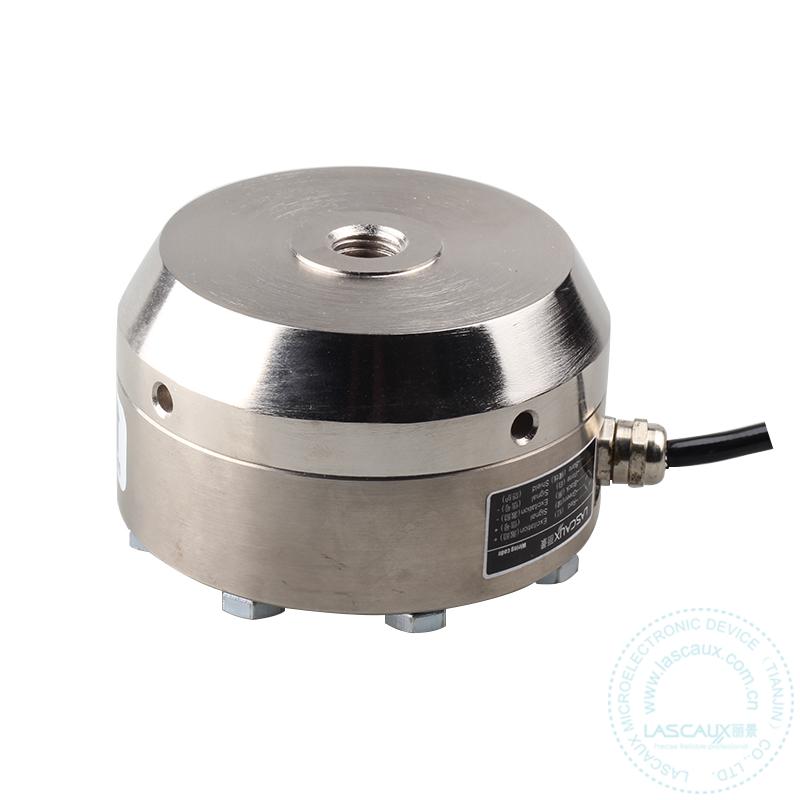

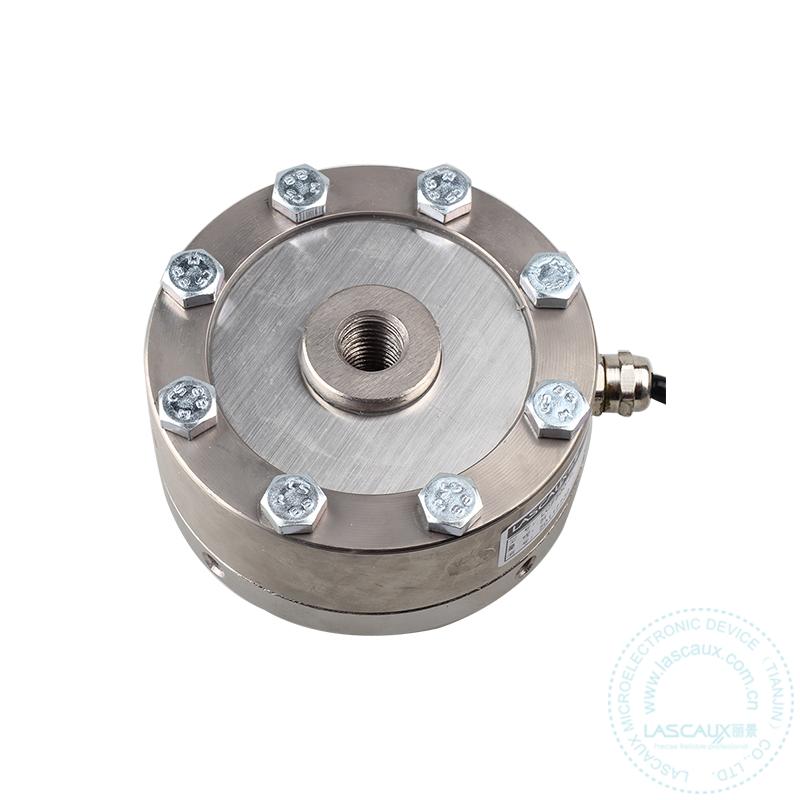

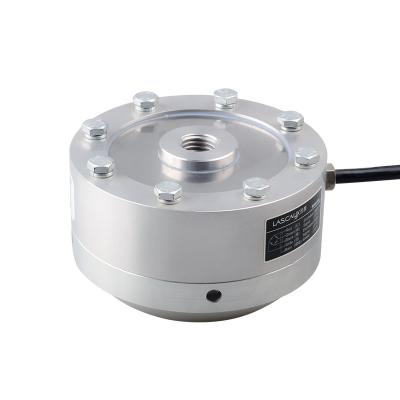

LCF500 Pancake Load Cell

Description：

Model: LCF500

Data sheet

LCF500 data

Features:

1. Capacities (KN) 2.5 to 500

2. Compact structure, easy to install

3. Low deflection for high output

4. The capacity of anti-deviated load is very strong

5. High comprehensive precision, high stability

6. Anodized Aluminum Alloy, High quality alloy steel with nickel plating

7. Compression and tension load cell

8. Low profile, spherical designing

Applications:

Be suitable for the fields of Truck scales, Rail scales, Ground scales, Platform scales, Hopper and tank weighing, Testing machines, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.

Specifications：

Rated Load	KN	2.5,5,10,25,50,100,250,500
Rated Output	mV/V	2.0(2.5KN-10KN),3.0(25KN-500KN)
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.03
Non-linearity	%R.O.	±0.03
Hysteresis	%R.O.	±0.03
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.03
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Aluminum(2.5KN-10KN)/Alloy Steel (25KN-500KN)
Degree of protection		IP66
The length of the cable	m	2.5KN-50KN:6m 100KN-250KN:10m 500KN:15m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Specification

Product name :	LCF500 Pancake Load Cell Pull Pressure Sensor
Product brand :	LIBIRINTH
Rated Load:	0.25t，0.5t，1t，2.5t，5t，10t，25t，50t
Rated Output:	0.25t-1t：2.0mV/V，2.5t-50t：3.0mV/V
Comprehensive Error:	0.03%R.O.
Non-linearity:	0.03%R.O.
Hysteresis:	0.03%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	0.25t-5t:6m 1t-5t:10m 50t:15m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-10v
