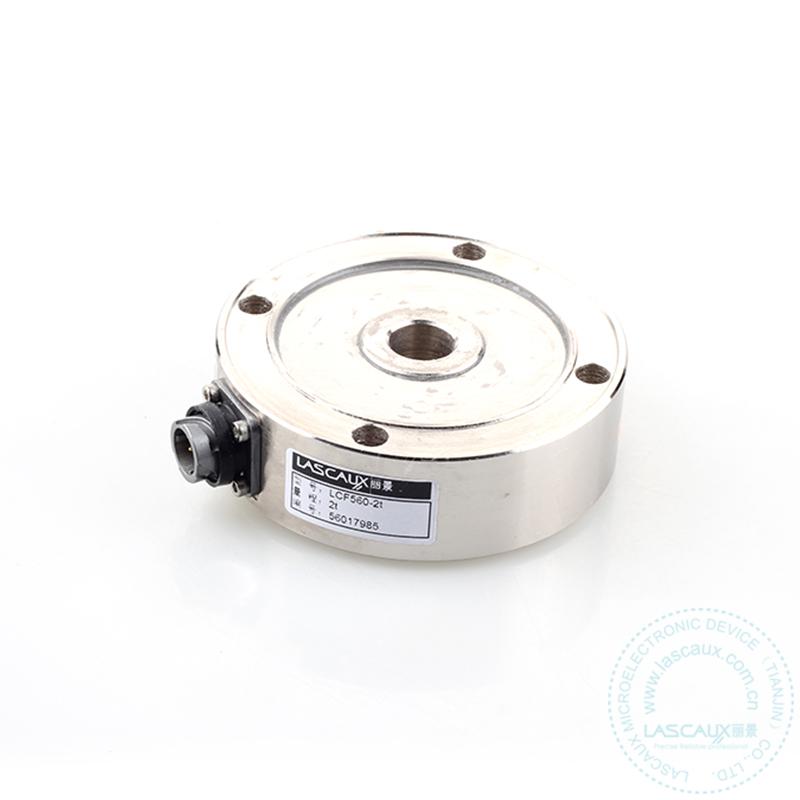

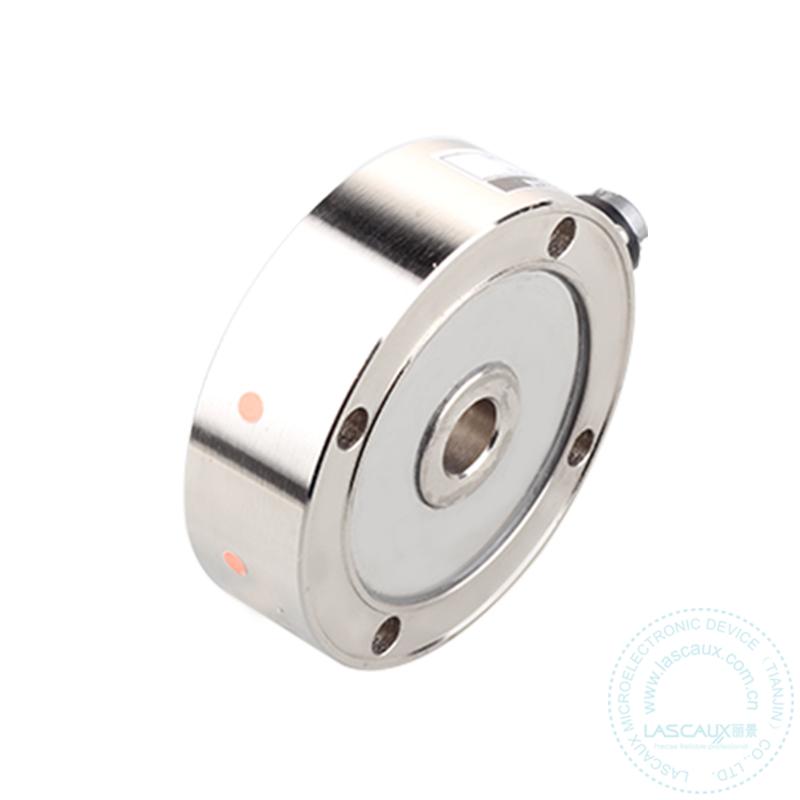

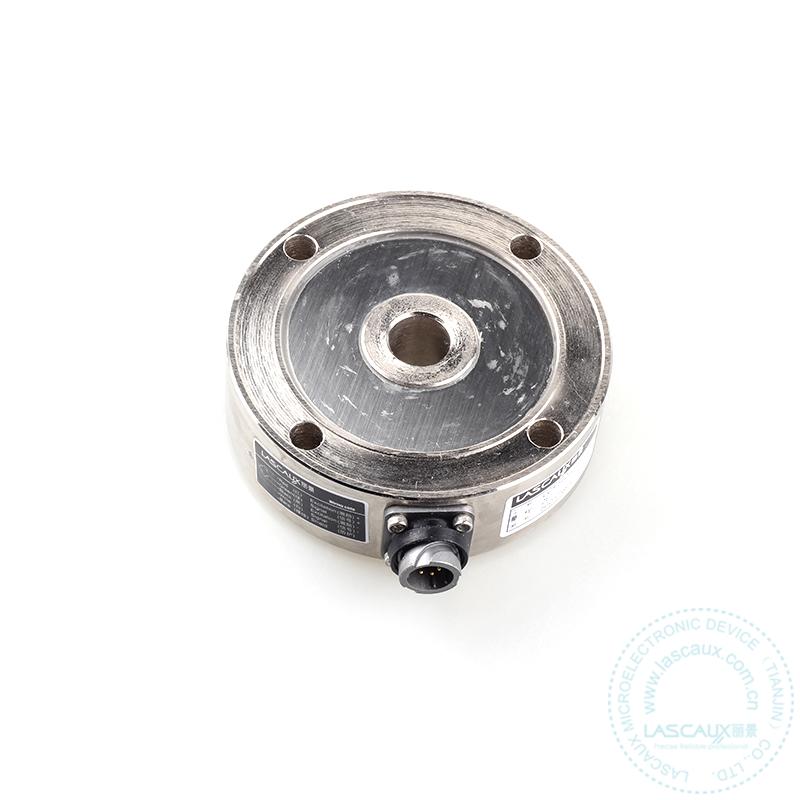

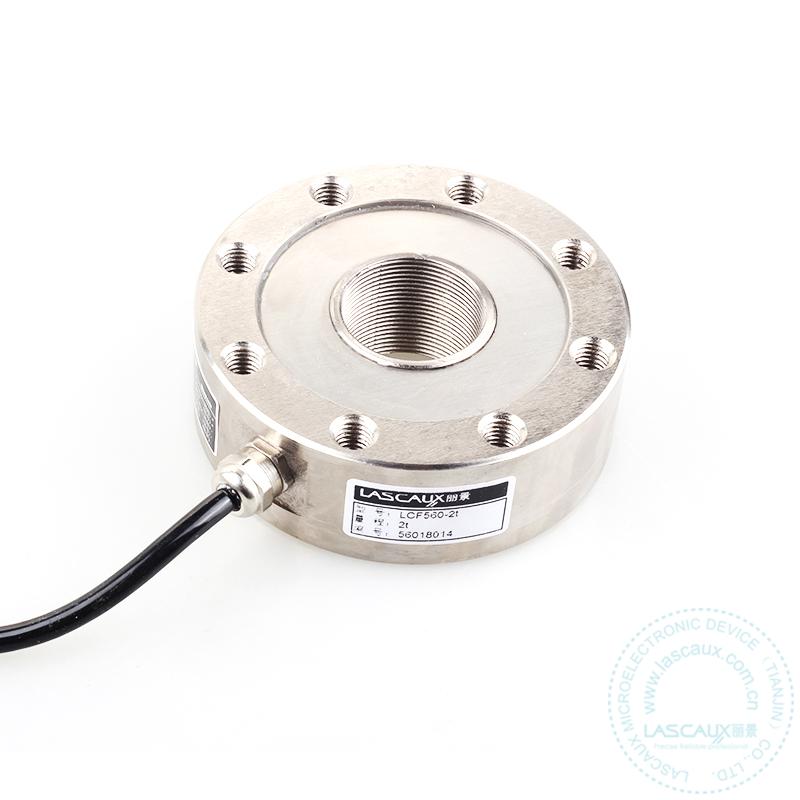

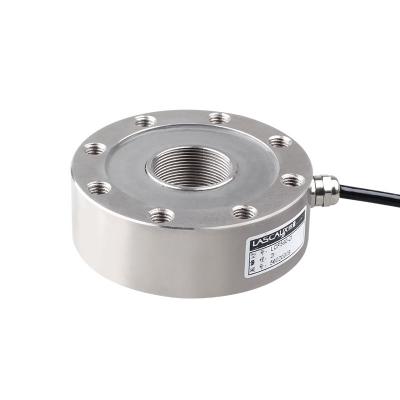

LCF560 Pancake Load Cell

Be suitable for the Roller coating machine

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

Capacity

LCF560 Pancake Load Cell

Description：

Model: LCF560

Data sheet

Features:

1. Capacities (t) ：2 to 5

2. Compact structure, easy to install

3. Low profile, spherical designing

4. Anodized Aluminum Alloy, High quality alloy steel with nickel plating

5. Stainless steel material is available

6. The capacity of anti-deviated load is very strong

7. High comprehensive precision, high stability

8. Compression load cell

9. Other capacity can be custom-made

Applications:

Be suitable for the Roller coating machine

Specifications：

Rated Load	t	2,5
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.05
Non-linearity	%R.O.	±0.05
Hysteresis	%R.O.	±0.05
Repeatability	%R.O.	±0.03
Creep/30 minutes	%R.O.	±0.05
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.05
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.05
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP67
The length of the cable	m	6m
Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–

Product name :	LCF560 Pancake Load Cell
Product brand :	LIBIRINTH
Rated Load:	2t，5t
Rated Output:	2.0±0.0050mV/V
Comprehensive Error:	0.05%R.O
The lengh of the cable:	6m
Input Impedance:	770±10Ω
Output Impedance:	700±5Ω
Recommended Excitation Voltage:	5-10v
