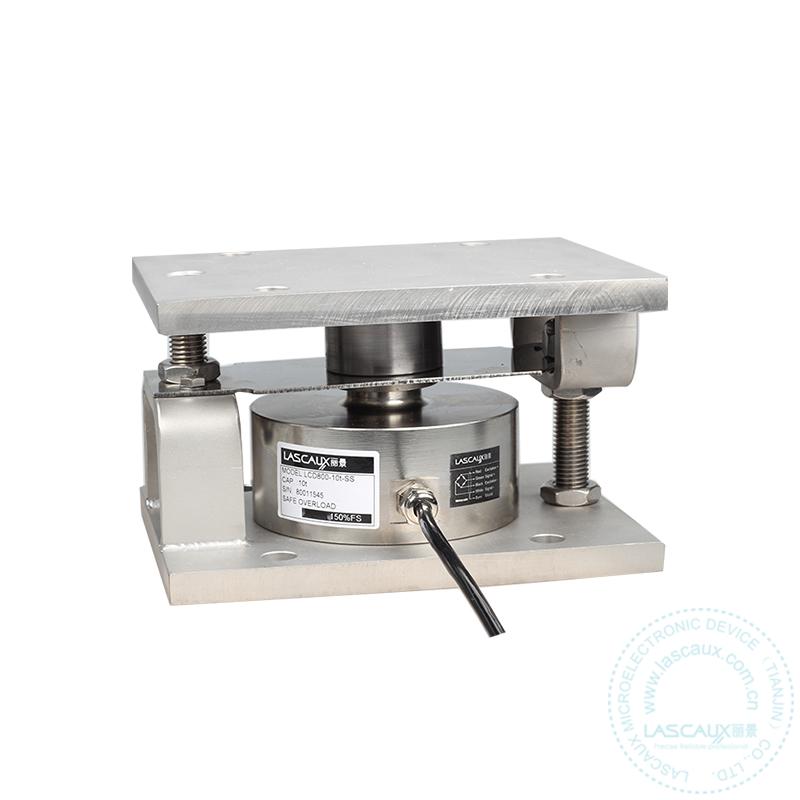

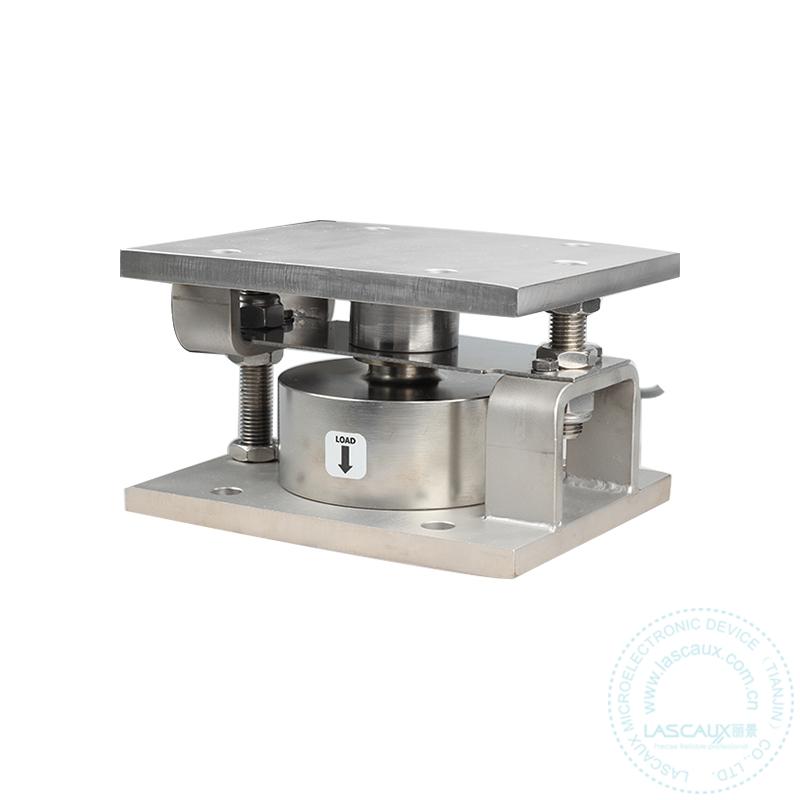

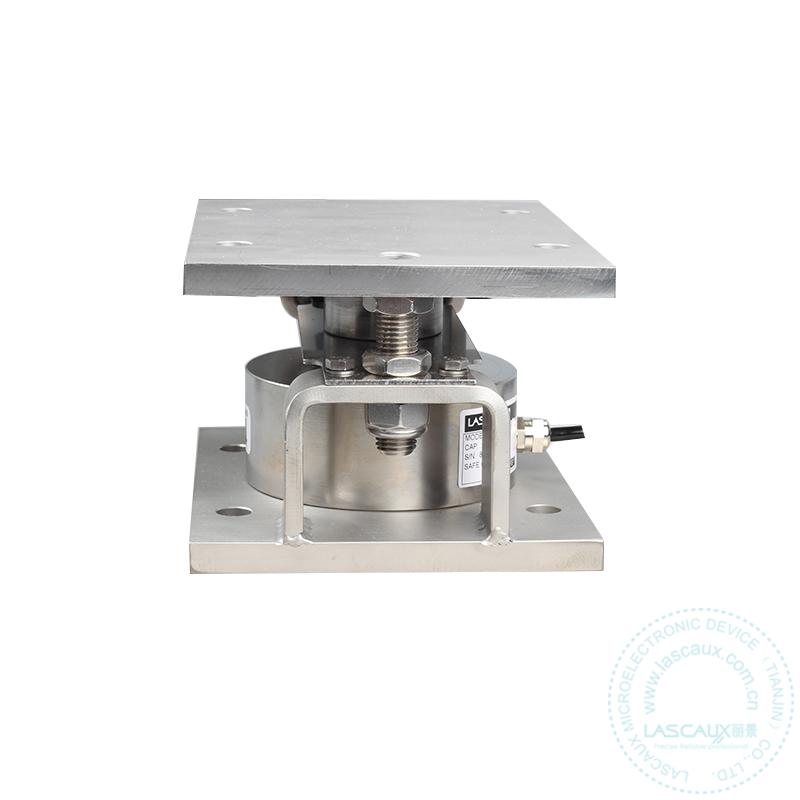

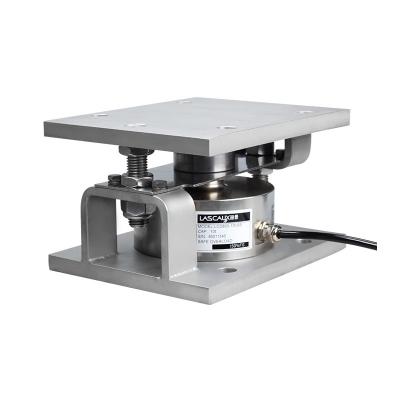

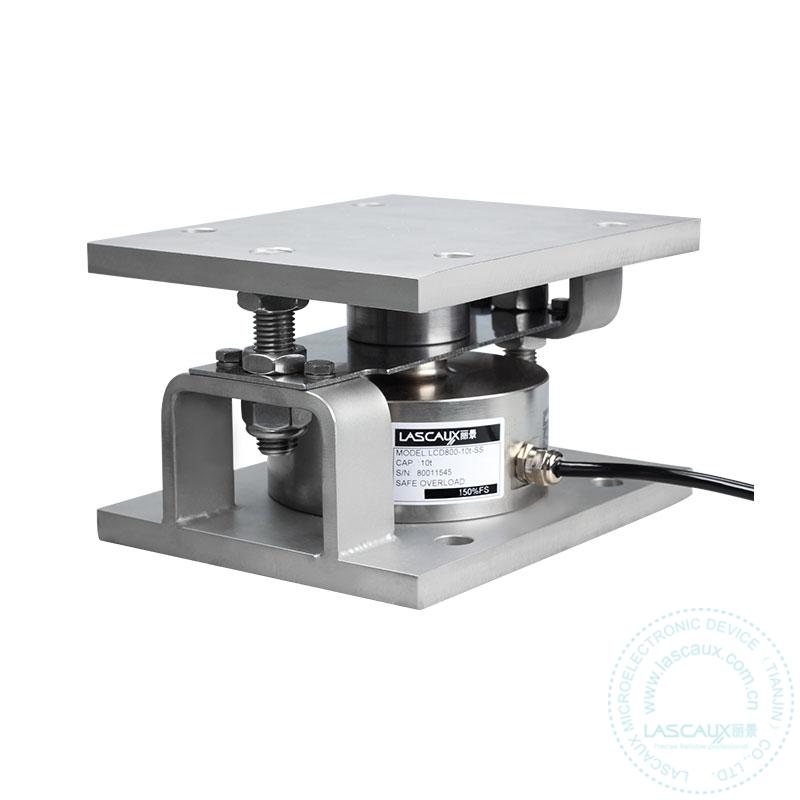

GL Weighing Module Model: GL Capacities (t): 10, 20, 30, 50
Data sheet:
Features: 1. Unique structure, simplifies load cell installation on tanks 2. Eliminate the error caused by heat expansion and cold contraction 3. Support the bolt, prevent the equipment from overturning 4. Alloy steel with nickel plating; Stainless steel material is available 5. Easily and quickly install 6. Easy to replace Reducing load cell damage and plant down-time 7. Suitable for tanks, silo, and others weighing control
Specifications:
|
Product name : | GL Weighing Module |
Product brand : | LIBIRINTH |
Rated Load: | 10t,20t,30t,50t |
Custom-Made: | Yes |
Load Cell Model: | LCD800 |
Material: | Carbon Steel/304 Stainless Steel |
