101m Weighing Module

本店价:

👈Consult customer service for a quote 6 have been sold|0 evaluation

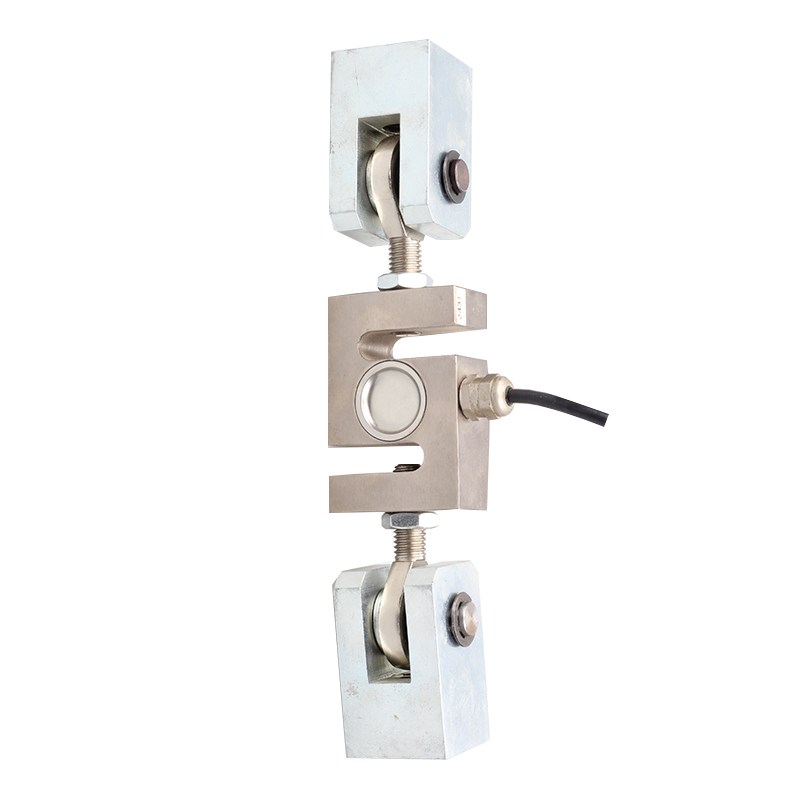

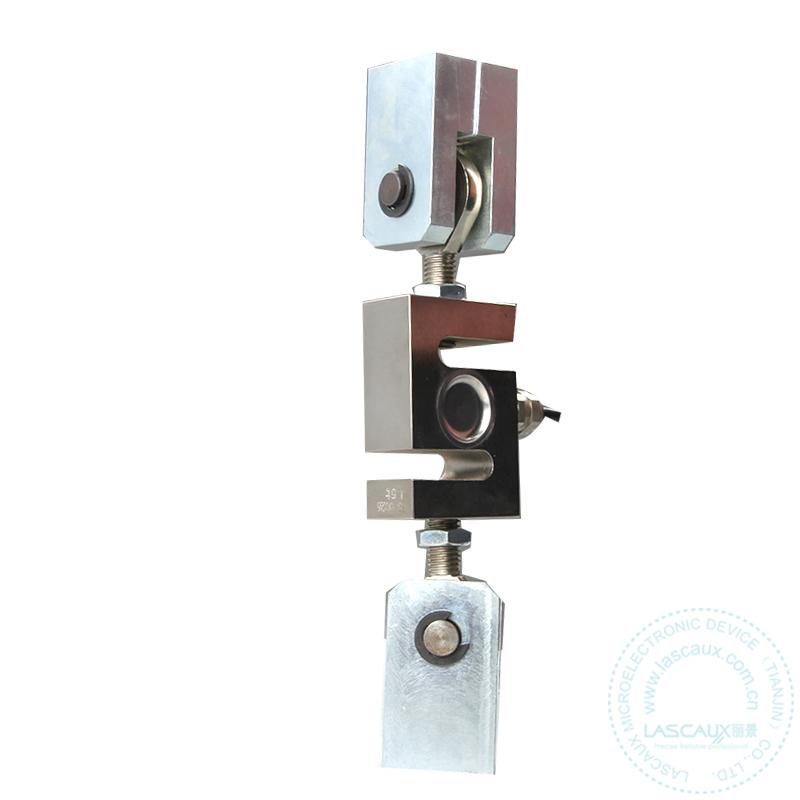

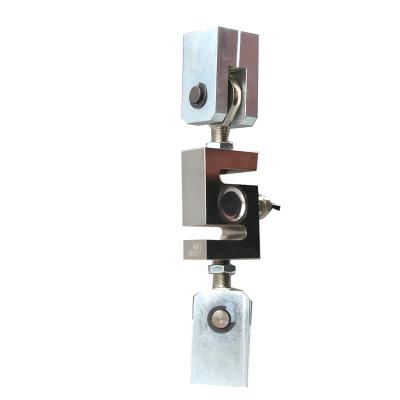

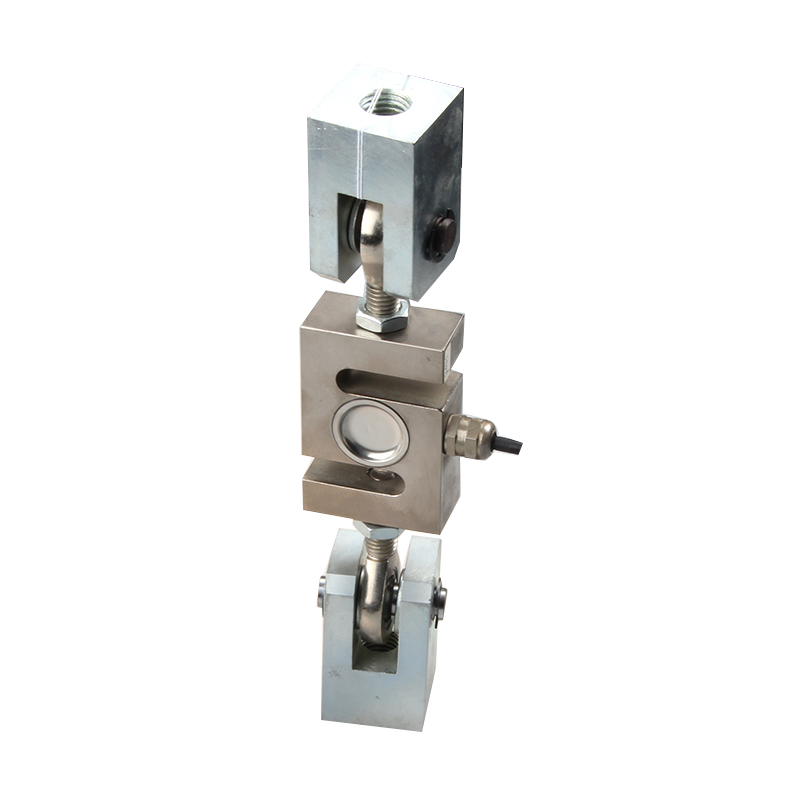

101M Weighing Module

Model: 101m


Capacities (kg):

5,10,20,50,100,200,300,500,1000,2000,3000,5000


Data sheet:

101M data


Features:

1. High accuracy load cell, High comprehensive precision

2. Unique structure, easy to install

3. Easy to replace Reducing load cell damage and plant down-time

4. Be suitable for tanks and others weighing control


Specifications:

Load Cell


STC

Rated Load

kg

5,10,20,50,100,200,300,500

t

1,2,3,5

Rated Output

mV/V

2.0±0.0050

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Degree of protection


IP66


Specification

Product name : 101m Weighing Module
Product brand : LIBIRINTH
Warranty: 12 months
Rated Load: 5kg,10kg,20kg,50kg,100kg,200kg,300kg,500kg,1t,2t,3t,5t
Load Cell Model: STC
Material: Carbon Steel
