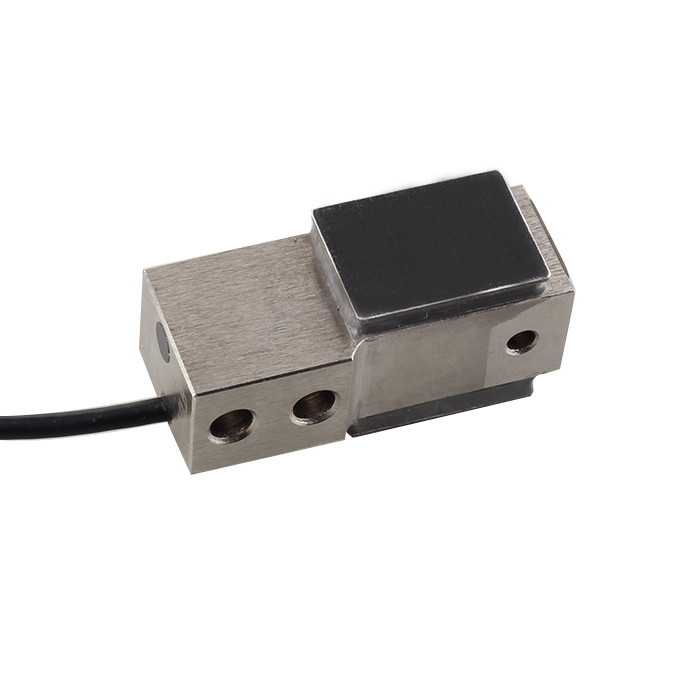

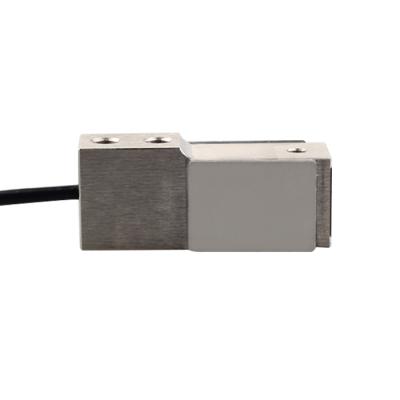

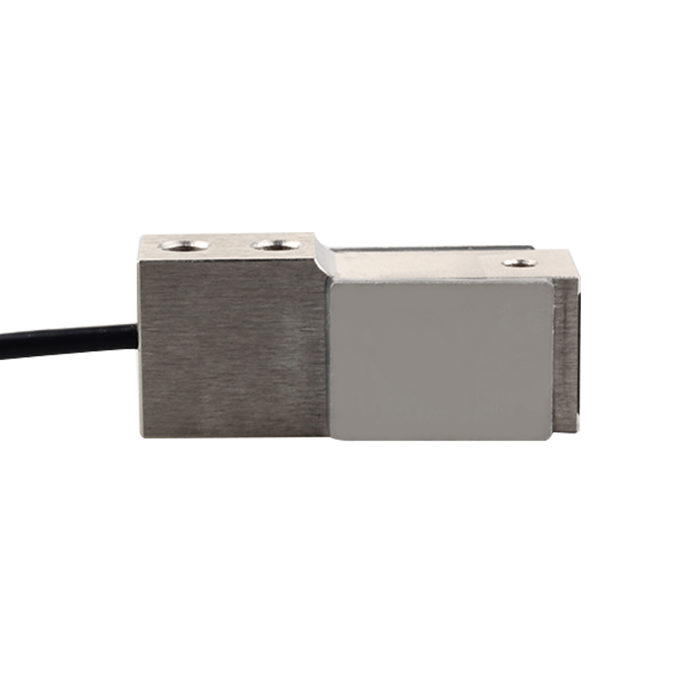

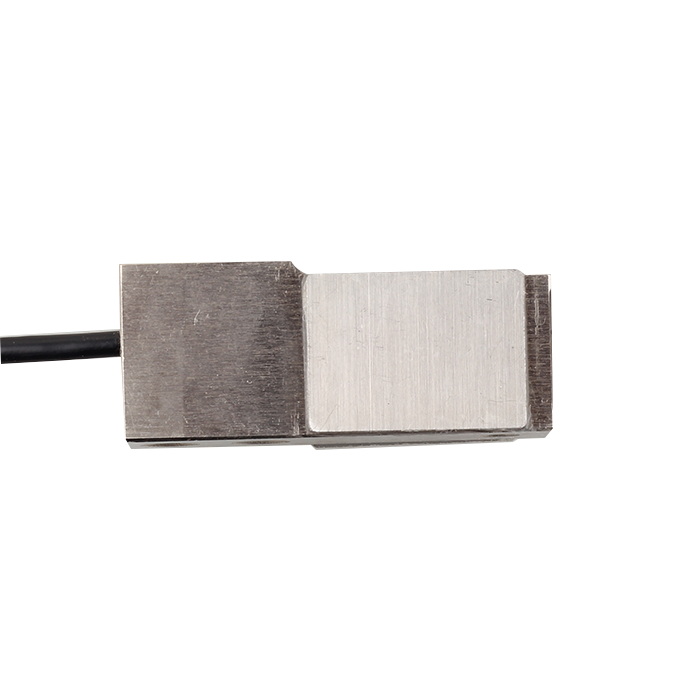

MBB Single Ended Shear Beam Load Cell

Be suitable for the fields of Low profile platform scales, packing machine, quantitative feeding machine, filling machine,belt scales, hopper scales, and weighing control of ingredients in chemical, food and pharmaceuticals industry.

本店价：

👈Consult customer service for a quote 20 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

20kg

50kg

100kg

MBB Single Ended Shear Beam Load Cell

Description:

Model: MBB

Data sheet

MBB Data

Features:

1. Capacities (kg): 20 to 100

2. Low profile designing

3. Compact structure, easy to install

4. High comprehensive precision, high stability

5. High quality alloy steel with nickel plating

6. Degree of protection can reach to IP66

7. Shell installing

Applications:

Be suitable for the fields of Low profile platform scales, packing machine, quantitative feeding machine, filling machine,

belt scales, hopper scales, and weighing control of ingredients in chemical, food and pharmaceuticals industry.

Specifications:

Rated Load	kg	20,50,100
Rated Output	mV/V	3.0
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.03
Non-linearity	%R.O.	±0.03
Hysteresis	%R.O.	±0.03
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.03
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.02
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	2m
Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

Specification

Product name :	MBB Single Ended Shear Beam Load Cell
Product brand :	LIBIRINTH
Rated Load:	20kg，50kg，100kg
Rated Output:	3.0mV/V
Comprehensive Error:	0.03%R.O.
The lengh of the cable:	2m
Recommended Excitation Voltage:	5-10v
