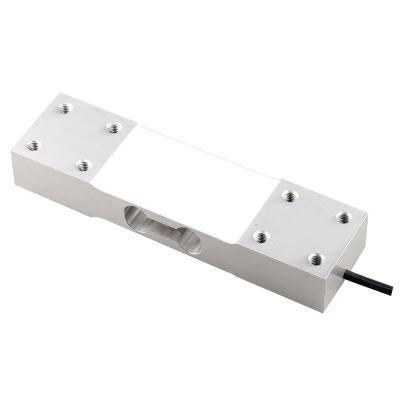

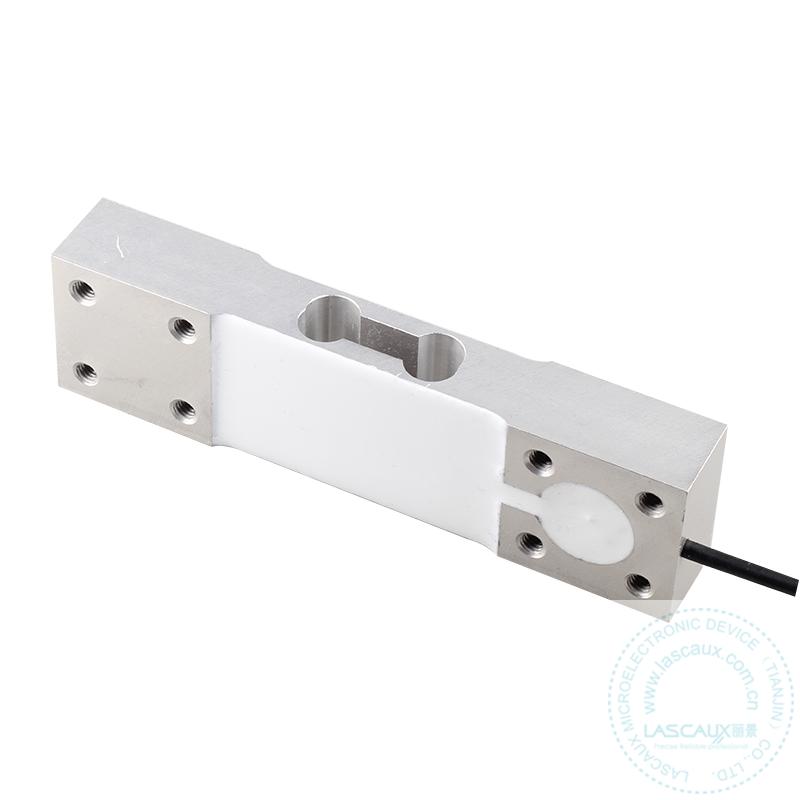

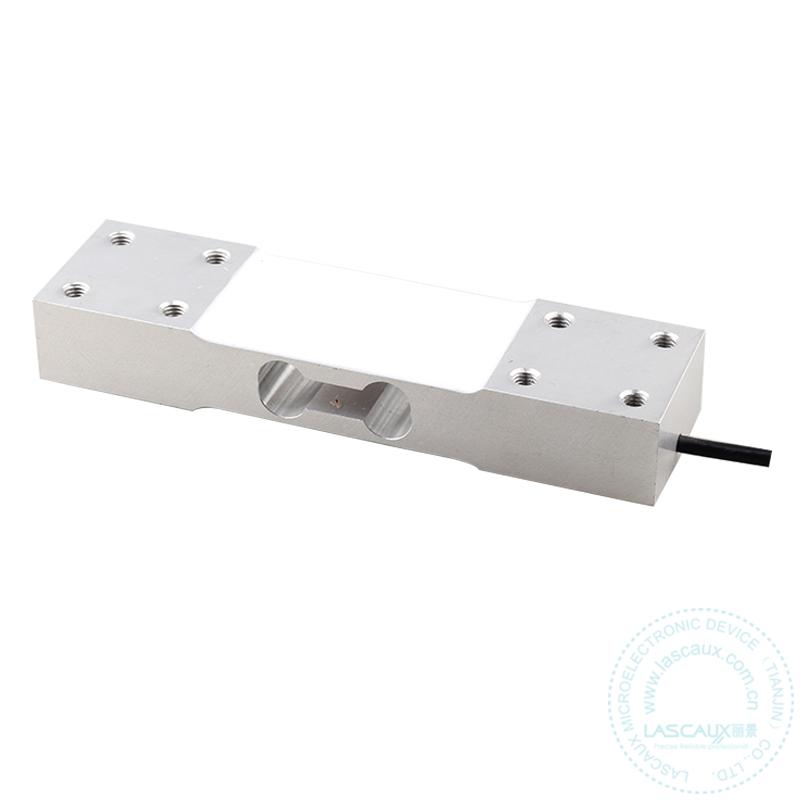

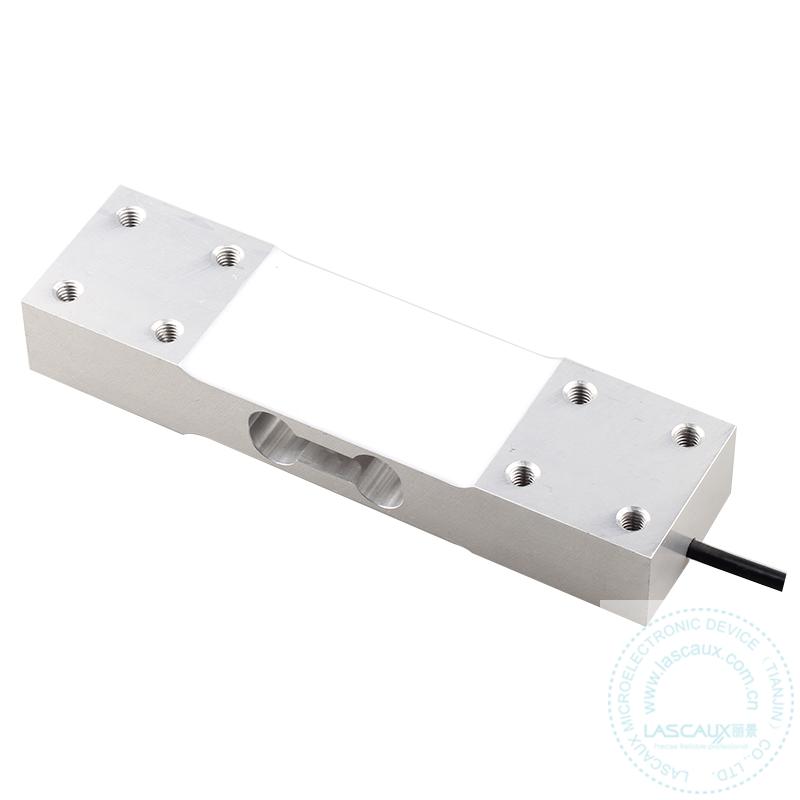

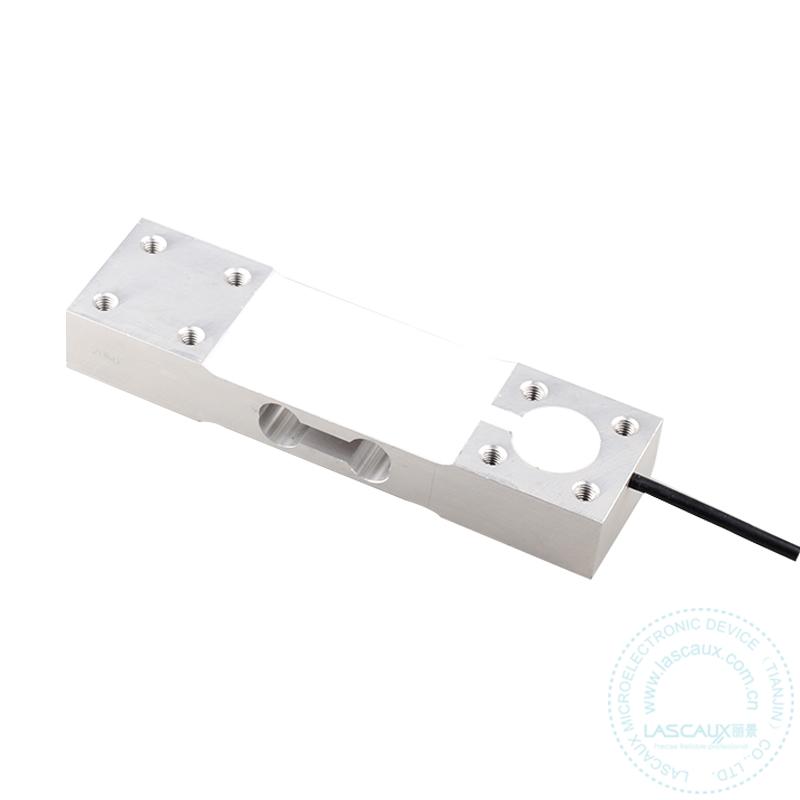

LC1540 Single Point Load Cell

LC1540传感器是一款小量程单点式传感器，10kg到50kg，材质铝合金，表面阳极化处理，结构简单，易于安装，抗弯抗扭性好，防护等级为IP66，可以应用在多种复杂的环境中。四角偏差已调整，推荐台面尺寸为500mm*350mm，主要适用于低量程平台秤、医药秤等工业称重系统。

本店价：

👈Consult customer service for a quote 30 have been sold|0 evaluation

BrandEnter the LIBIRINTH Brand Pavilion

Capacity

10kg

20kg

30kg

50kg

Single Point Load Cell

Description：

Model: LC1540

Data sheet

LC1540 Data

Specifications:

Rated Load	kg	10, 20, 30, 50
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃on output	%R.O./10℃	±0.02
Temp. effect/10℃on zero	%R.O./10℃	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	0.48
Wiring code	Ex:	Red：＋Black：–
Wiring code	Sig:	Green：＋White：–
Recommended Platform size	mm	350*350
Tightening Torque	N·m	10kg-30kg:7 N·m 50kg:10 N·m

Specification

Product name :	LC1540 Single Point Load Cell
Product brand :	LIBIRINTH
Rated Load:	10kg，20kg，30kg，50kg
Rated Output:	2.0±0.2mV/V
Comprehensive Error:	0.02%R.O.
Non-linearity:	0.02%R.O.
Hysteresis:	0.02%R.O.
Repeatability:	0.02%R.O.
The lengh of the cable:	40cm
Input Impedance:	410±10Ω
Output Impedance:	350±5Ω
Recommended Excitation Voltage:	5-12v
Tightening Torque:	10kg-30kg：7N·m，50kg：10N·m
Maximum Platfrom Size:	350mm*500mm
