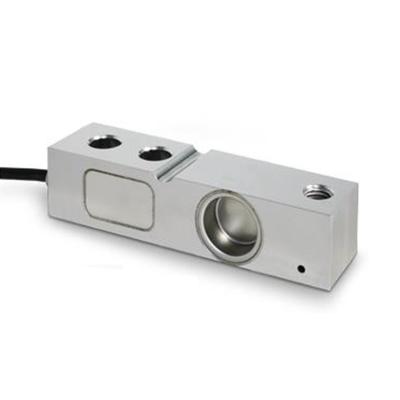

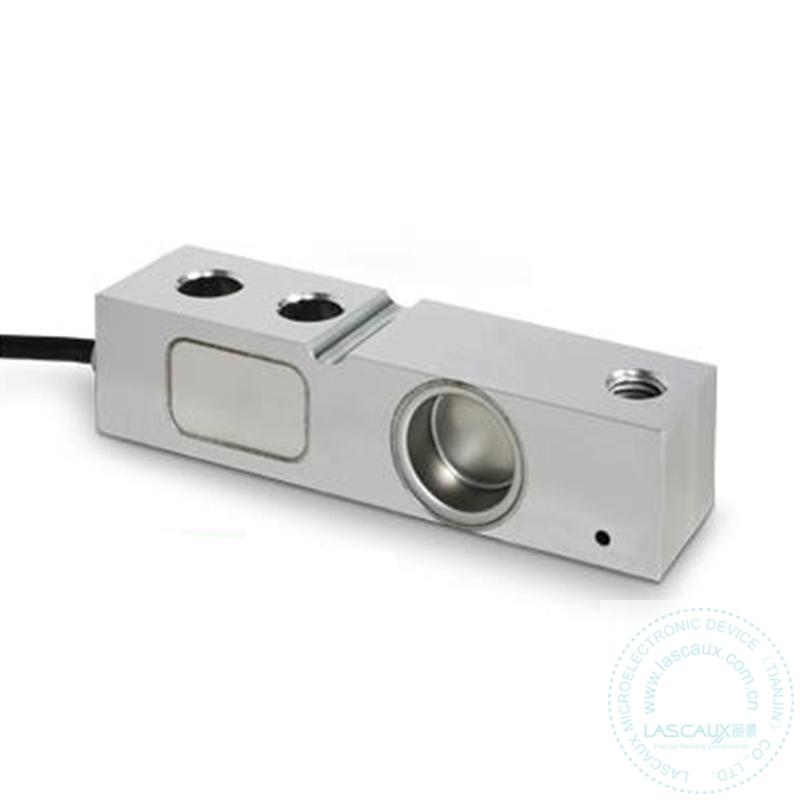

SBK SERIES IP68 STAINLESS STEEL SHEAR BEAM LOAD CELLS, 350 Ohm

Dimensions (mm)

Wiring Code
Colour	Function
--	SHIELD
YELLOW	OUTPUT +
GREY	SENSE +
BROWN	INPUT +
WHITE	OUTPUT -
GREEN	INPUT -
PINK	SENSE -

Stainless steel shear beam load cells suitable for building, for example, CE-M approved scales with 4 load cells or for weighing tanks and hoppers with the relevant accessories.

CAPACITIES (kg): 300, 500, 1000, 2000.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS
STAINLESS STEEL CONSTRUCTION
IP68 PROTECTION
MAX. CAPACITIES FROM 300 TO 2000 kg
SHIELDED CONNECTION CABLE
OIML CERTIFICATE AVAILABLE UPON REQUEST
TEST CERTIFICATE AVAILABLE UPON REQUEST

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of verification intervals: nLC = 3000
Combined error: 0,017% of Full Scale Output (F.S.)
Full Scale Output: 2mV/V +/- 0.1%
Temperature effect on zero: 0,0014% /°C
Temperature effect on full scale output: 0,0014% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -20°C/+60°C
Creep error after 30 minutes: 0,024% F.S.
Maximum tolerated excitation voltage: 15 VDC
Input Resistance: 385 ± 20 Ohm
Output Resistance: 350 ± 5 Ohm
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 200% F.S.
6-wire shielded cable, 5m long, 5 mm diameter

ATEX VERSION

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Product name :	Dini Argeo SBK SERIES IP68 STAINLESS STEEL SHEAR BEAM LOAD CELLS, 350 Ohm
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	300kg,500kg,1t,2t
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.1%
综合误差:	±0.017%F.S
Creep (30 min.):	0.024%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大检定分度数:	nLC=3000
最大激励电压:	15VDC
Input impedance:	385±20Ω
Output impedance:	350±5Ω
Safe Overload:	150%F.S.
Ultimate overload:	200%F.S.
Degree of protection:	IP68
Elastic element material:	不锈钢
The lengh of the cable:	5m
Cable Type:	6芯屏蔽电缆，直径5mm
