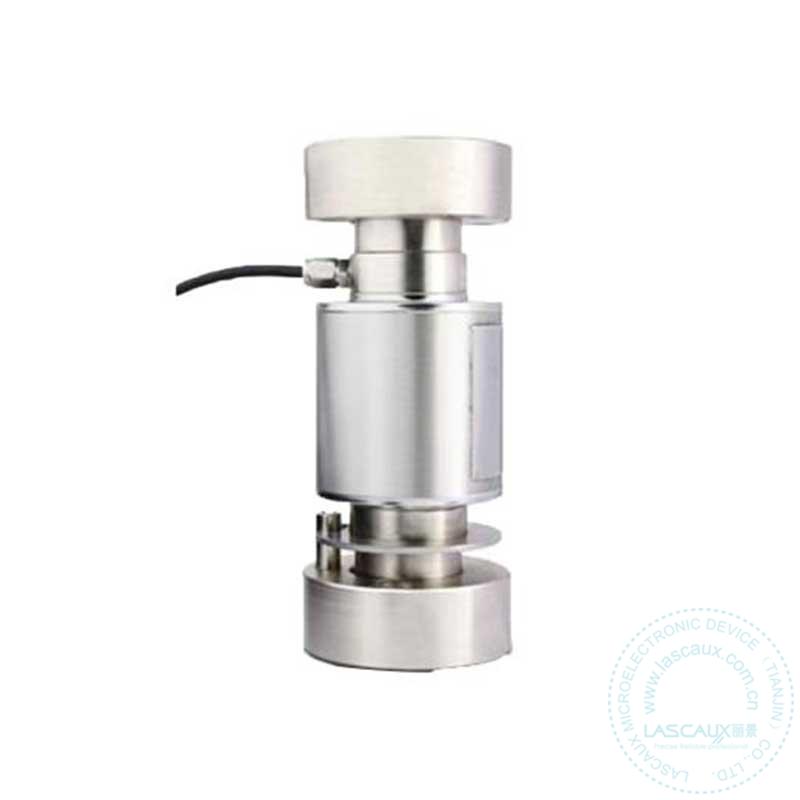

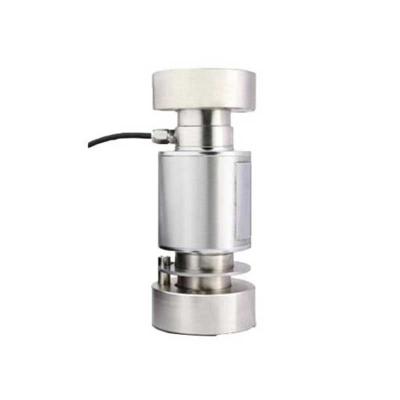

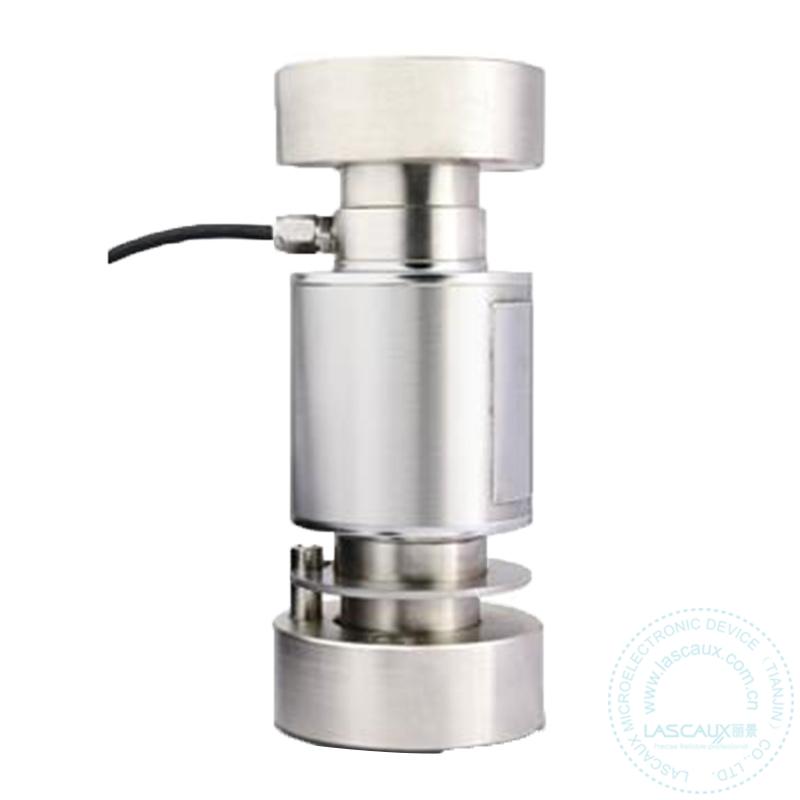

DINI ARGEO ANALOGUE COLUMN LOAD CELL "RCPT" SERIES

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Wiring Code
Colour	Function
GREEN	OUTPUT +
WHITE	OUTPUT -
RED	INPUT +
BLACK	INPUT -

Column load cell for CE-M approved weighbridges, tanks, silos, etc.

CAPACITIES (kg): 20000, 30000, 50000.

OIML R60. C3 precision class.

Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

MAIN FEATURES

C3 PRECISION CLASS.
SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; MANUFACTURED WITH LASER SOLDERINGS.
OPTIMISED FOR PARALLEL CONNECTION.
IP68 PROTECTION RATING.
CAPACITY FROM 20000 TO 50000 kg.
SHIELDED 18m CONNECTION CABLE.
TEST CERTIFICATE AVAILABLE UPON REQUEST.
FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELFCENTERING PLATES AND PROTECTION WASHER (version with cups).

TECHNICAL FEATURES

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of load cell divisions: nLC = 3000 (C3)
Sensitivity: 2mV/V +/- 0,1%
Temperature effect on full scale: 0,002% /°C
Temperature effect on zero: 0,002% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -30°C/+70°C
Creep error after 30 minutes: 0,02% F.S.
Excitation voltage from 5 to 15 VDC
Input Resistance: 700 ± 20 Ohm
Output Resistance: 703 ± 7 Ohm
Zero Balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: >150% F.S.
Ultimate Overload: 250% F.S.
4-wire shielded cable, 5mm diameter.

Product name :	DINI ARGEO ANALOGUE COLUMN LOAD CELL "RCPT" SERIES
Product brand :	DINIARGEO
Warranty:	12个月
额定载荷:	30t,50t
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
额定输出:	2mV/V±0.1%
Creep (30 min.):	0.02%F.S.
最小检定分度值:	Vmin=EMax/10.000
最大检定分度数:	nLC=3000
最大激励电压:	5-15VDC
Input impedance:	700±20Ω
Output impedance:	703±7Ω
zero return:	±1%F.S.
Safe Overload:	150%F.S.
Ultimate overload:	250%F.S.
Degree of protection:	IP68
Elastic element material:	内芯合金钢,外部不锈钢
The lengh of the cable:	14m
Cable Type:	4芯屏蔽电缆，直径5mm
