High precision – due to outstanding technical properties

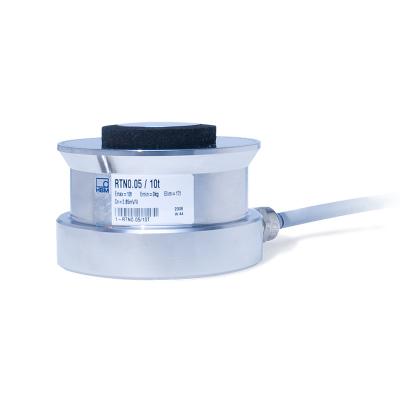

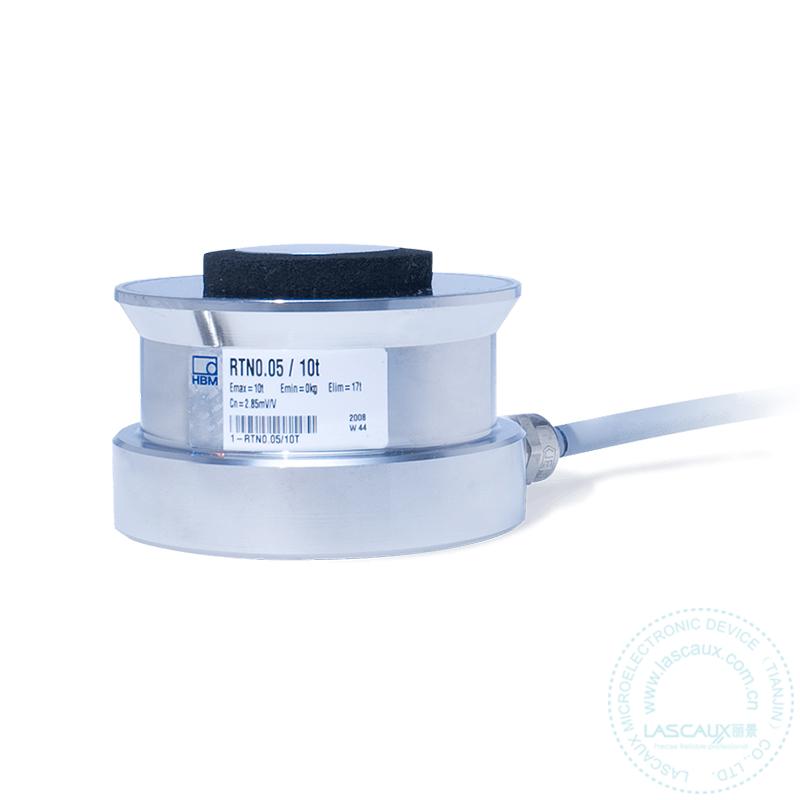

Ring Torsion Load Cells: Precise Weighing up to 470 TonsRTN ring torsion load cells are available for a wide range of maximum capacities (1 t—470 t). All versions are compact and, at the same time, extremely robust. These properties and their superior degree of protection (up to IP 68/IP 69K) make them ideal for a wide range of container weighing applications, use in large platform scales, and the construction of vehicle scales – even in unfavorable environmental conditions. HBM’s RTN load cells are extremely precise and minimize the influence of lateral load application with their unique ring-shaped strain gauges. Their high input resistance and low power consumption enable the use of battery-powered evaluation units for taking measurements. Numerous special versions such as IECEx-ATEX or temperature-resistant versions (up to 110 °C) are available, and different cable lengths and cable types can be configured. A new version with an M12 connector is also available as an option.
High measurement accuracy
High precision – due to outstanding technical properties High robustness
Ideal for harsh environments – due to stainless-steel design, high degree of protection, and explosion and lightning protection. Easy integration
Flexible use in many applications – due to various product variants and accessories. |
| Product name : | HBM Ring Torsion Load Cells |
| Product brand : | HBM |
| Warranty: | 12个月 |
| 额定载荷: | 1.1t,2.2t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t,220t,330t,470t |
| 精度等级: | 0.05,C3 |
| Output Type: | 模拟量毫伏值电压信号输出：mV/V |
| Rated Output: | 2.85±0.1% |
| Degree of protection: | IP68 |
| Material: | 不锈钢 |
| Non-linearity: | ±0.05%R.O./±0.02%R.O. |
| Creep(30 min.): | 0.03%R.O./±0.017%R.O. |
| Output impedace: | 4450±100Ω |
| Input impedace: | 4010±2Ω/4010±0.5Ω（C3） |
| Recommended excitation voltage: | 5VDC |
| Normal excitation voltage range: | 5-30VDC |
