High accuracy, due to high-grade load cell technology that is not affected by interference.

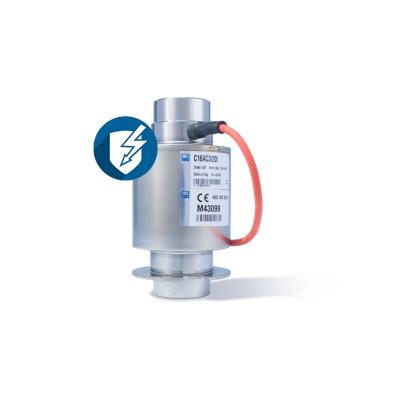

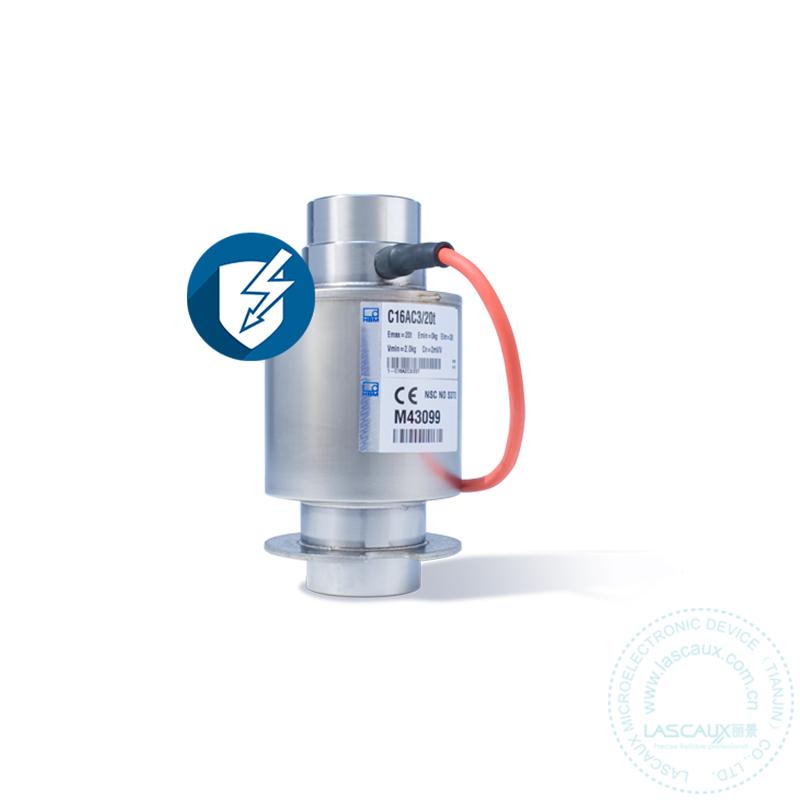

Type C16A Self-Restoring Load Cell: Reliable Weighing up to 400 TonsThe C16 rocker pin load cells ensure optimal force application, are especially robust and allow for precise weighing up to a maximum capacity, ranging from 20 to 400 tons—and an accuracy class up to C5 per OIML R60. They are also suitable for use in harsh environments, for example, in weighbridges for road or rail vehicles or for level measurement in silos. In addition, C16A load cells with IP 69K degree of protection and explosion proof IECEx-ATEX design are also available. A rotation stop, Ooervoltage protection, and robust cable variants offer additional protection.
Precise
High accuracy, due to high-grade load cell technology that is not affected by interference. Robust
Also well-suited for use in hash environments, thanks to its rugged design Flexible
Versatile use, also for high capacities. Includes certificates and a lot of accessories |
| Product name : | HBM C16A Robust Rocker-Pin Load Cell |
| Product brand : | HBM |
| Warranty: | 12个月 |
| 额定载荷: | 20t,30t,40t,60t,100t,200t,400t |
| 精度等级: | D1,C3,C4,C5 |
| Output Type: | 模拟量毫伏值电压信号输出：mV/V |
| Rated Output: | 2.0mV/V |
| Degree of protection: | IP68/IP69 |
| Material: | 不锈钢 |
| Non-linearity: | ±0.0300%R.O. |
| repeatability: | ±0.0330%R.O. |
| Creep(30 min.): | ±0.0330%R.O. |
| Output impedace: | 700±20Ω |
| Input impedace: | 706±3.5Ω |
| Recommended excitation voltage: | 5VDC |
| Normal excitation voltage range: | 0.5-12VDC |
| Safe overload: | 150%R.O. |
| Ultimate overload: | ＞350%R.O. |
