Precise measurement results owing to certified, precise load cell technology

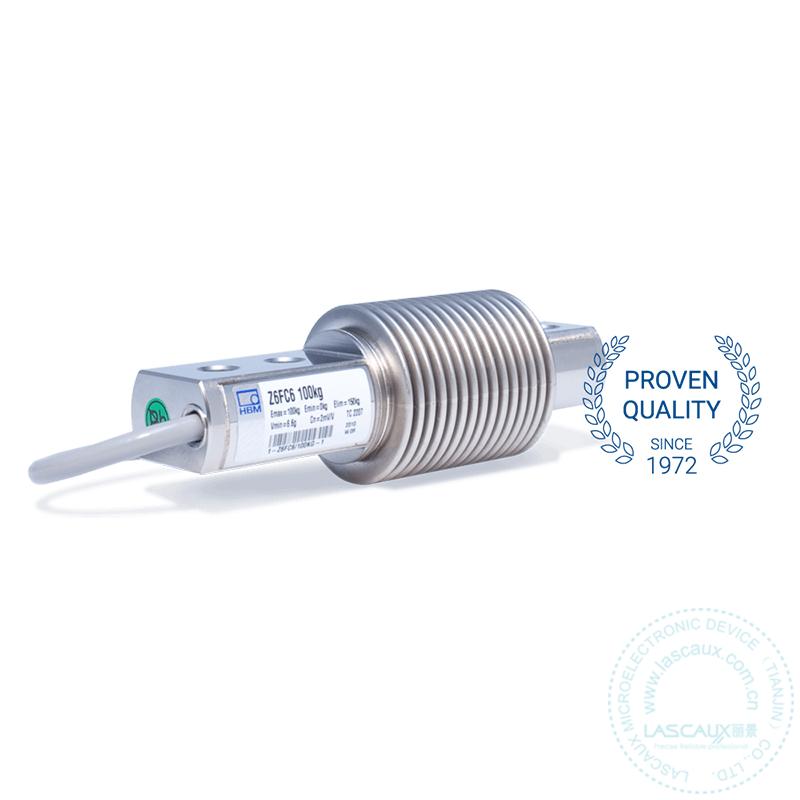

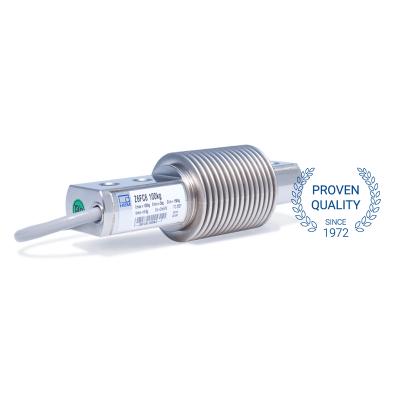

Z6 Bending Beam Load Cell: The Market Standard for Precision and Robustness in the Weighing Range from 5 kg to 1 t
The precise Z6 bending beam load cell, developed by HBM in 1972, has been continuously optimized for decades. Z6 is based on the strain gauge technology. It is available in nine different versions with maximum capacities that range from 5 kg to 1 t. The load cell with the characteristic bellows has become a worldwide standard, with millions of load cells having been sold. It is employed in platform and conveyor scales for dosing and level measurement as well as in weighing modules that, for instance, are used for tank weighing applications. The metal bellows protects the load cell against the ingress of moisture. The Z6 load cell has been optimized for connection in parallel. An IECEx-ATEX-compliant explosion-proof version is also available.
Precise
Robust
Continuously reliable weighing Flexible
|
| Product name : | HBM Z6 Bending Beam Load Cell |
| Product brand : | HBM |
| Warranty: | 12个月 |
| 额定载荷: | 5kg,10kg,20kg,30kg,50kg,100kg,200kg,500kg |
| 精度等级: | D1,C3,C4,C6 |
| Output Type: | 模拟量毫伏值电压信号输出：mV/V |
| Rated Output: | 2mV/V |
| Non-linearity: | ±0.0180%R.O. |
| repeatability: | ±0.0170%R.O. |
| Creep(30 min.): | ±0.0166%R.O. |
| Output impedace: | 350~480Ω |
| Input impedace: | 356±0.2Ω/356±0.12Ω |
| Recommended excitation voltage: | 5VDC |
| Normal excitation voltage range: | 0.5-12VDC |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
