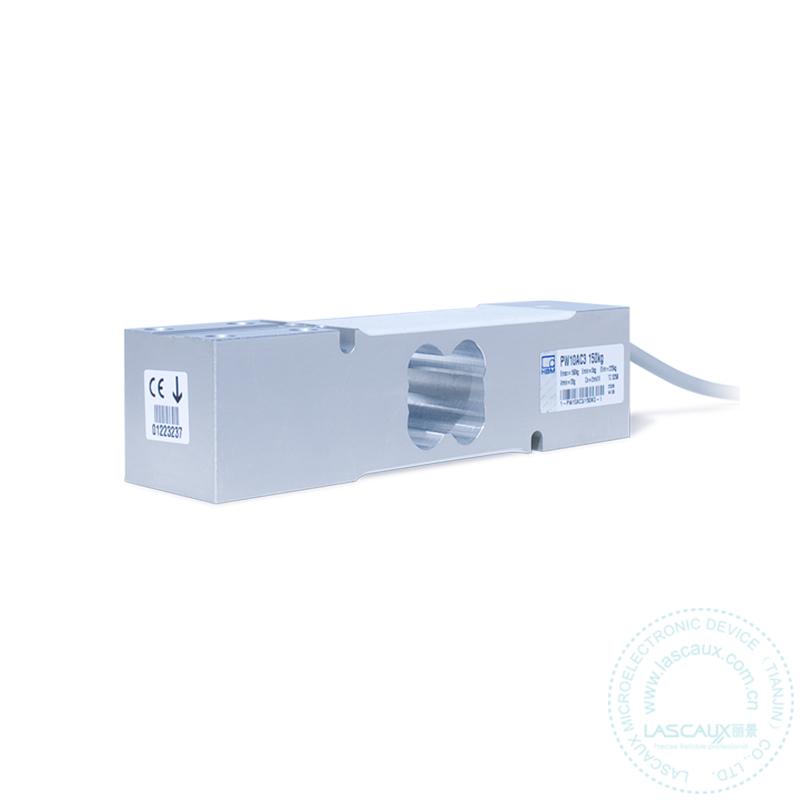

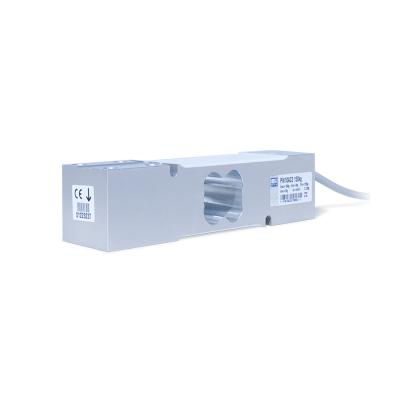

HBM PW10A Single-Point Load Cell

The PW10A load cell is ideally suited to be used in single-point applications that involve platform sizes up to 600 x 500 mm, such as in industrial applications and weighers or medical scales. Its maximum capacity is up to 300 kg, which is very high consi

本店价：

👈Consult customer service for a quote 0 have been sold|0 evaluation

BrandEnter the HBM Brand Pavilion

产品规格

50kg

100kg

150kg

200kg

250kg

300kg

PW10A Single-Point Load Cell: Weighing Heavy Loads with Class C3MR Precision

The PW10A load cell is ideally suited to be used in single-point applications that involve platform sizes up to 600 x 500 mm, such as in industrial applications and weighers or medical scales. Its maximum capacity is up to 300 kg, which is very high considering its compact design. The single-point load cell complies with the C3 Multi-Range accuracy class and provides precise measurement results. A test certificate confirms that it is approved for use in legal for trade applications. The 6-wire technology compensates for all cable influences on the measurement result. The PW10A load cell's cable shield is connected to the measuring body and thus optimally protects it against electromagnetic fields. The load cell withstands overloads of up to three times its maximum capacity, owing to its highly resistant aluminum measuring body. The single-point load cell complies with the IP67 degree of protection and is optimally suitable for use in industrial environments. The PW10A has an excellent price-to-performance ratio. An explosion-proof version in compliance with IECEx+ATEX is also available.

Accuracy class: C3 Multi-Range

Maximum capacity: 50 kg to 300 kg

Dimensions: 44 x 174 x 38 mm (W x H x D)

High precision

Precise weighing in compliance with the C3 (Multi-Range) accuracy class

Stable signal transmission, owing to the 6-wire technology

Off-center load compensation

Protected against electromagnetic fields, due to its high electromagnetic conformity EMC (according to EN 45501)

Suitable for legal for trade applications, with a test certificate according to OIML R60.

Accurate measurement results due to the off-center load compensation and stable electromagnetic compatibility (EMC)

Robust design

High maximum capacities, irrespective of its compact design

Sturdy aluminum measuring body with resistant silicone-rubber cover

Resistant to humidity and dirt, due to IP67 degree of protection

Suitable for platform sizes up to 600 x 500 mm.

Ideal for demanding measurement tasks involving large platforms.

Many options

Six different maximum capacities are available (50 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg);

Four different cable lengths ranging from 1.5 m to 12 m are available;

A version with a balanced signal output for parallel connection is available as an option

Explosion-proof versions are available (IECEx+ATEX Zone 1+21, Zone 2+22).

Meets individual requirements, owing to the six different maximum capacities and many options.

Specification

Product name :	HBM PW10A Single-Point Load Cell
Product brand :	HBM
Warranty:	12个月
额定载荷:	50kg,100kg,150kg,200kg,250kg,300kg
精度等级:	C3
Output Type:	模拟量毫伏值电压信号输出：mV/V
Rated Output:	2.0±0.2mV/V
Degree of protection:	IP67
Material:	铝合金
Maximum platform size:	500mm*600mm
Non-linearity:	±0.0166%R.O.
repeatability:	±0.0166%R.O.
Output impedace:	300~500Ω
Input impedace:	300~500Ω
Recommended excitation voltage:	5VDC
Normal excitation voltage range:	1-12VDC
Maximum excitation:	15VDC
Safe overload:	150%R.O.
Ultimate overload:	300%R.O.
