Precise results, also with permanent humidity and electromagnetic interference

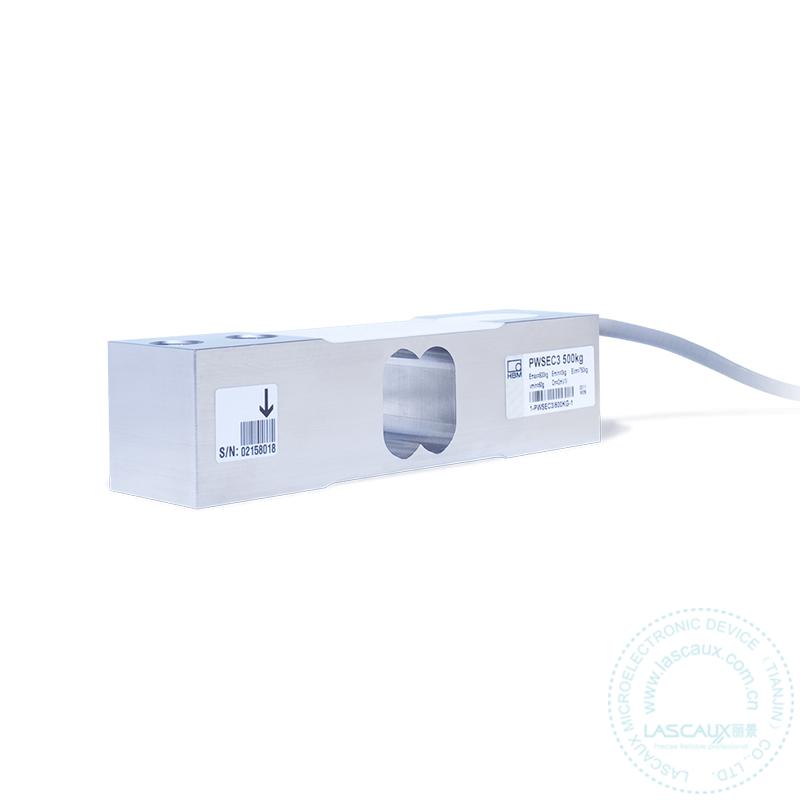

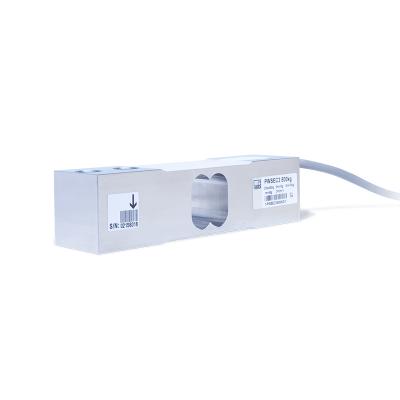

PWSE Single Point Load Cell: Up to 750 kg Capacity and C3 Accuracy ClassThe PWSE single point load cell weighs heavy loads ranging from 100 to 750 kg with C3 accuracy class. It is ideally suited for use in large platforms and conveyor scales. Owing to its very compact design, integration of the PWSE into various weighing systems is easy and takes up little space. The single point load cell is particularly robust, due to its stainless steel measuring body, the robust silicone rubber enclosure, and its IP67 degree of protection. Thus, the PWSE is ideal for use in harsh conditions such as the weighing of building materials or in the chemical industry. Due to its special measuring body geometry and solid mounting with standard threaded bores, it ensures high measurement accuracy with platform sizes of up to 800 x 800 mm. Its excellent price/performance ratio makes the PWSE attractive for a wide range of applications. Proven for decades, it is being developed continually.
High accuracy
Precise results, also with permanent humidity and electromagnetic interference Universal application
Versatile use, compact footprint, and broad measuring range. Robust design
Optimally suited to be used in industrial environments. |
| Product name : | HBM PWSE Single Point Load Cell |
| Product brand : | HBM |
| Warranty: | 12个月 |
| 额定载荷: | 100kg,200kg,300kg,500kg,750kg |
| 精度等级: | C3 |
| Output Type: | 模拟量毫伏值电压信号输出：mV/V |
| Rated Output: | 2.0±0.2mV/V |
| Degree of protection: | IP67 |
| Material: | 不锈钢 |
| Maximum platform size: | 800mm*800mm |
| Non-linearity: | ±0.0166%R.O. |
| repeatability: | ±0.0166%R.O. |
| Creep(30 min.): | ±0.0166%R.O. |
| Output impedace: | 390±15Ω |
| Input impedace: | 359±10Ω |
| Recommended excitation voltage: | 5VDC |
| Normal excitation voltage range: | 1-12VDC |
| Maximum excitation: | 15VDC |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| The lengh of the cable: | 3m |
