LCD
Datasheet:LCD Datasheet
Features:
Applications
DescriptionThe low profile compression disk is designed as the ultimate solution for some difficult applications with critical height for safety reasons. The shear web design provides excellent performance even when the side force inevitably exists in normal operations. The typical example for side force resistance is the applications in motor truck scales. LCD is constructed of alloy steel and fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity.
|
| Product name : | CELTRON LCD Low Profile Compression Disk Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 5klb,10klb,25klb,50klb,100klb |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 4.0mV/V |
| 非线性: | 0.05%R.O. |
| 零点回复（20分钟): | 0.03%R.O. |
| Hysteresis: | 0.05%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5(100klb:770±10Ω) |
| Output impedance: | 385±3(100klb:770±5Ω) |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢镀镍 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 15m |

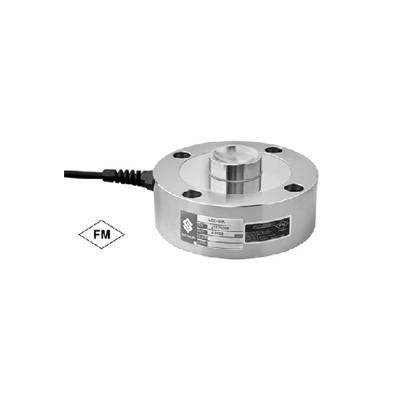

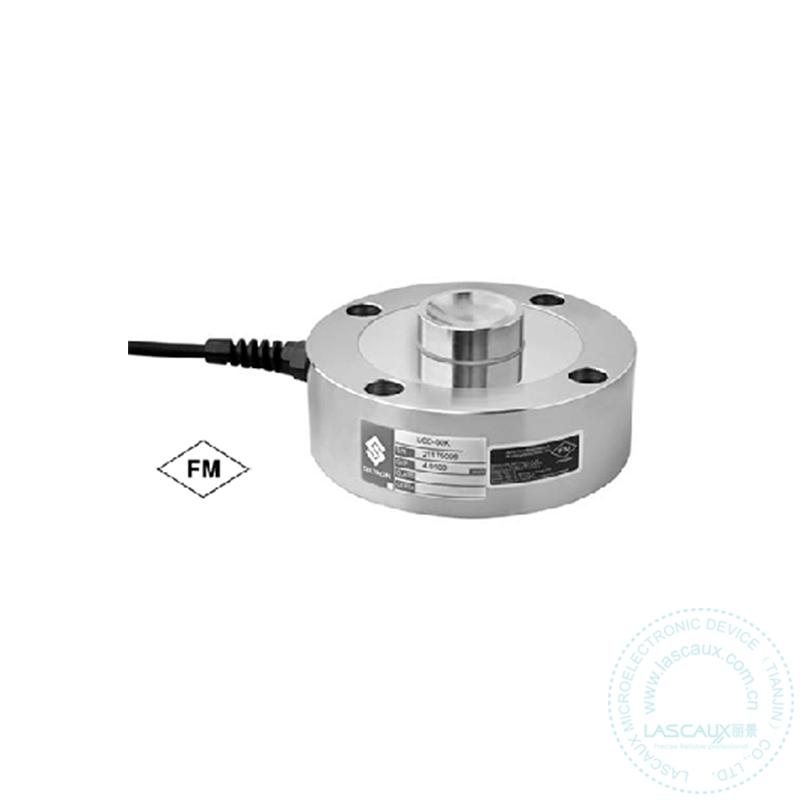

CELTRON LCD Low Profile Compression Disk Load Cell
