CSB
Datasheet:CSB DatasheetFeatures:
Applications
DescriptionThe double-ended mounting provides good restraint for possible movement of tanks and, in many cases,eliminates the need for check rods. The shear beam design gives excellent performance for high capacity loading. The cylindrical construction provides easy installation with simple loading features. CSB is constructed of alloy steel and is fully potted with special chemical compounds to IP67 providing excellent protection against moisture and humidity.
|
| Product name : | CELTRON CSB Cylindrical Double-Ended Shear Beam Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 5k,10k,20k,30k,40k,50k,60k,100k,150k |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 3.0mV/V |
| 非线性: | 0.025%R.O. |
| 零点回复（20分钟): | 0.03%R.O. |
| Hysteresis: | 0.025%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 770±10Ω |
| Output impedance: | 700±5Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢镀镍 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 15m |

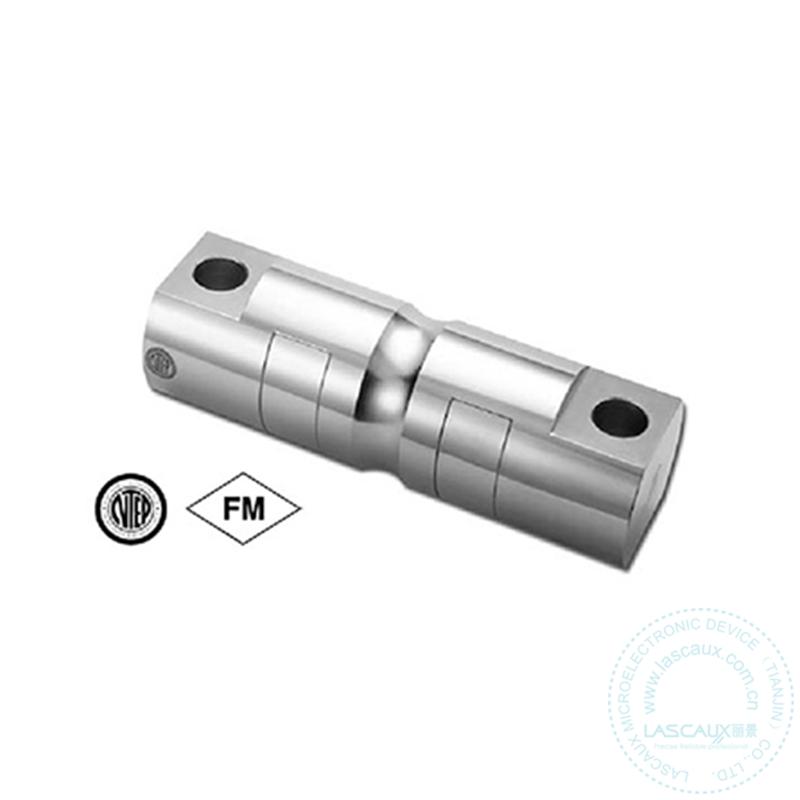

CELTRON CSB Cylindrical Double-Ended Shear Beam Load Cell
