DLB
Datasheet:DLB DatasheetFeatures:
Applications
DescriptionDLB is designed to be center-mounted with double-linked loading. This design provides free movement in all horizontal directions virtually eliminating binding or friction points. The Shear Beam design gives excellent performance for high capacity loading. DLB is constructed of alloy steel and fully potted sealed with special chemical compounds to IP67 providing excellent protection against moisture and humidity. |
| Product name : | CELTRON DLB Double-Ended Link Shear Beam Load Cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 25k,40k,50k,60k,75k,100k,125k |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 3.0mV/V |
| 非线性: | 0.030%R.O. |
| 零点回复（20分钟): | 0.03%R.O. |
| Hysteresis: | 0.025%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 770±10Ω |
| Output impedance: | 700±5Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢镀镍 |
| Degree of protection: | IP67 |
| The lengh of the cable: | 7.6m |

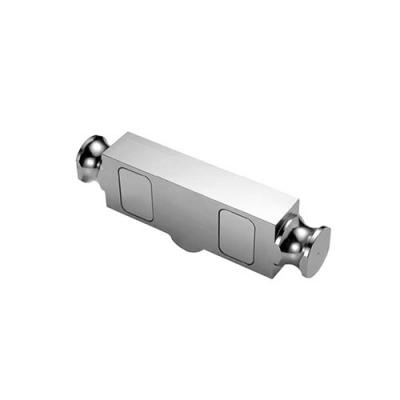

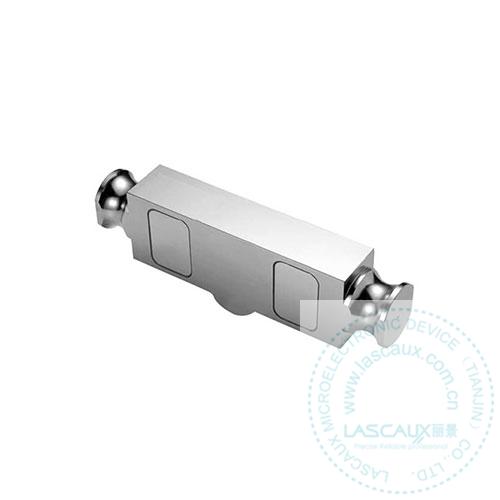

CELTRON DLB Double-Ended Link Shear Beam Load Cell
