SQB
Datasheet:SQB DatasheetFeatures:
Applications
DescriptionSQB is a single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading. SQB and SQB-F are constructed of alloy steel and fully potted with special chemical compounds to IP67 to protect the cell from water and moisture damage. |

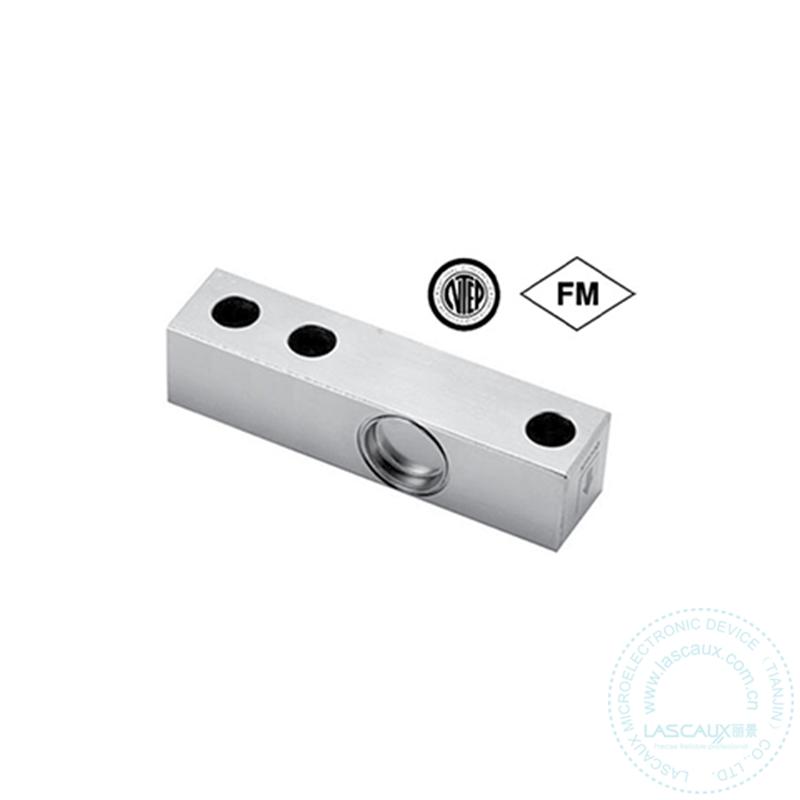

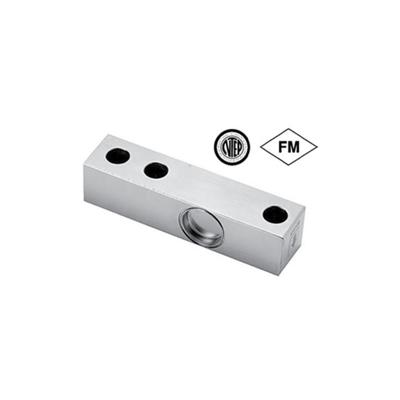

| Product name : | CELTRON SQB-H single-ended beam load cell |
| Product brand : | CELTRON |
| Warranty: | 12个月 |
| 额定载荷: | 500kg,1000kg,1500kg,2000kg,5000kg |
| 输出类型: | 模拟量毫伏值电压信号输出：mV/V |
| 额定输出: | 3.0mV/V |
| 非线性: | 0.03%R.O. |
| Hysteresis: | 0.03%R.O. |
| Repeatability: | 0.02%R.O. |
| Creep (20 min.): | 0.03%R.O. |
| Safe overload: | 150%R.O. |
| Ultimate overload: | 300%R.O. |
| Recommended excition voltage: | 10VDC |
| Maximum excitation: | 15VDC |
| Input impedance: | 385±5Ω |
| Output impedance: | 350±3Ω |
| Insulation resistance: | >5000MΩ |
| Material: | 合金钢镀镍或不锈钢 |
| Degree of protection: | IP68 |
| The lengh of the cable: | 6.1m |
